| Prod Model: |
LK2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Stiffness & Flexibility: |
Flexible Shaft |
| Shaft Shape: |
Hollow Axis |
| Axis Shape: |
Straight Shaft |
| Load: |
Central Spindle |
Product Description

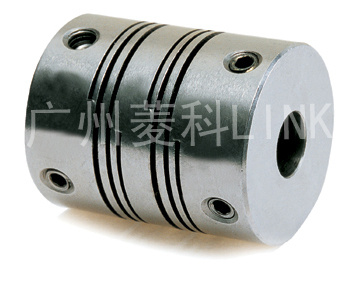

Flexible Coupling
1 ISO9001: 2000
2 Material: Aullimun Alloy and stainless steel
3 OEM Service
4 Brand: COUP-LINK
Setscrew parallel flexible Coupling Features:
One-piece metallic spring coupling;
For little torque shaft connect;
Zero backlash;
Absorption of parallel, angular misalignments and shaft end-play by spring acton;
Identical clockwise and anticlockwise rotational characteristics;
Setscrew type.
Setscrew parallel flexible Coupling Capacity:
Transfer nominal torque TN = 0.2~0.9 N. M
Allowable speed N =10000~13000 rpm
0.25mm Limited radial deviation: 0.1mm
1.5° Limited angle deviation:
± 0.25mm Limited axle deviation: ± 0.25mm or 0.15mm
Stainless steel with high causticity character and widely apply to coder and mini motor transmission.
Integration, minitype, low inertia.
Guangzhou Link Automation Equipment Co., Ltd is a coupling manufacture enterprise. The company mainly produces high-quality couplings, such as servomotor couplings\step motor couplings\Micro motor couplings and encode couplings. Due to our advanced technological processes, superior designing and R&D teams, excellent processing equipment and testing/inspecting facilities, and sound quality assurance systems and passed ISO9001: 2000 International Quality Management system, now the couplings have fifteen series, are available for different high precise drive connecting, the products had been exported to Taiwan\ Indonesia, Singapore, Malaysia and Iran.
