| Prod Model: |
LM-LOU880 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Rolling Machine |
Product Description

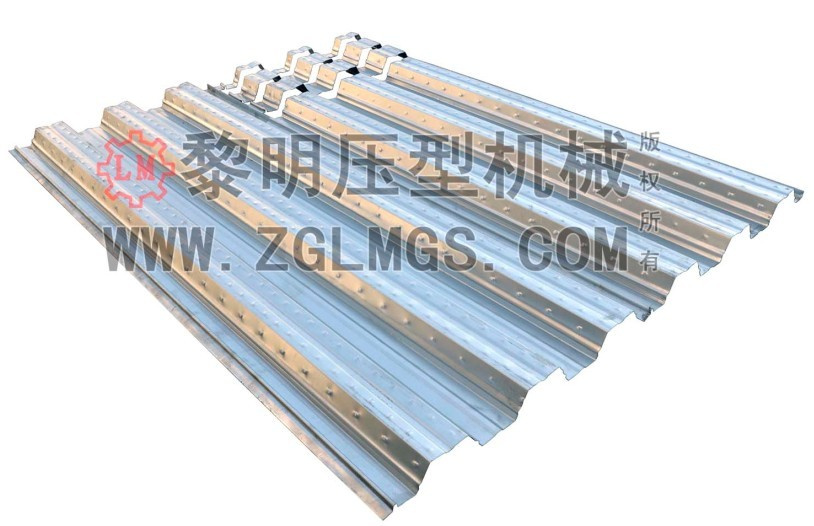

Floor deck plate roll forming machine
Structure of equipment summary
1. Decoiler
Used for unfolding coil of color strip, no power decoiling. It bears 5T.
2. Feeding platform
Function and design feature: Put the raw material (armor plate) on the plat to manufacture and process, it can guarantee that the products are neat, parallel and everywhere is uniformity. Please refering to the equipment regulation to know the function of locate angle iron.
3. Molding core
It keeps the product shape, abrasion strength and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller surface polishing and hard plating.
4. Coloured steel forming-tamping machine
The coloured glaze molding is made by Nanjing cutlery die shop's special profiling die, total up to two pairs of dies on top and bottom. Profiled the moulded pieces through pattern cope's movement. The die is neat and smooth, measurement and angle are precise. According to the needs, moulded depth is pancreatic.
5. Moulding shearing mechanism
It adopts fluid drive, automatic positioning, cuts off the molding moulded pieces to certain size. It also can be cut off by controlling pitch through hand operation. The equipment contains a pair of shearing tool, a hydraulic RAM and two shearers.
6. Hydraulic station
It contains a set of hydraulic fluid chamber and a set of hydraulic oil pump, two hydraulic pipes.
7. Control cabinet with computer
It adopts Japan Mitsubishi PLC controlling. The moulded pieces length is adjustable and digit of it can be set. Distributing box control board controls, and the locating is precise. Computed mode has two modes: Automatic mode of operation and manual one. Through controlling pitch length to make the product line running speed stable, the operation is simple, and the touch screen is LED.
Liming Stamping Form Machine Manufactured Co., is a leading manufacturer for steel plate coiling machinery, roll-forming and automatic production lines. The products are mainly used in steel structure industry for producing C&Z shape purlin, load-bearing plate of buildings, wall and roof protective structure colorful steel plate, thermal insulation; Colorful decorating and protecting steel plates for high-grade steel structure residences; Environment industry anode plate and kathode plate lines for removing dust; Traffic-transport industry freeway guardrail plate, vehicle roll-forming materials; Logistics. Goods shelf pillar, holding beam; Cable bridge, Cabinet pillar and others collorary thin wall roll-forming materials serials-such as goods shelf board, kinds of cabinet screen plate. Then, it can also supply kinds of line of uncoiler, leveler, slitting recoiler, cut-to-length shear stacker.
Liming has advanced production equipment. Engineering personnel and technicians of Bohai are rich in experience of designing, developing, and manufacturing of machineries, They pay close attention to and keep up with the developing trend of technologies and adopt new technologies in the manufacturing of our machinery products, to keep them competitiveness. The products are characteristic of high efficiency, high flexibility and low production cost.
