Product Description

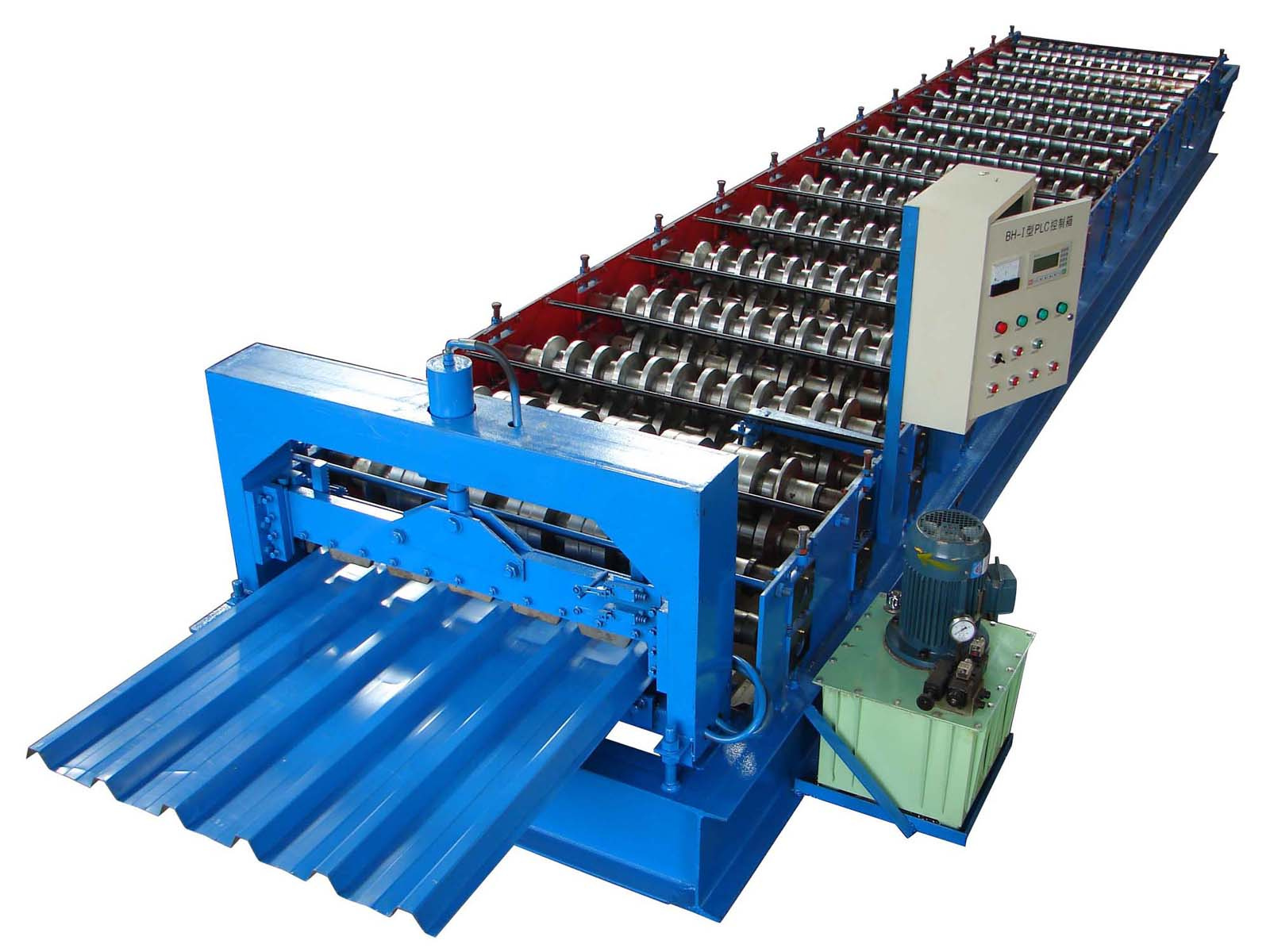

Floor deck metal steel making machine
Configurations: Manual Uncoiler, Guiding Platform, Coil Strip Leveler, Main Machine Of Roll Forming, Electro-Motor, Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
Control System: PLC Panasonic Inverter
Main Frame: 450mm H-Beam
Main Power: 18.5 kw
Pump Power: 15 kw
Power Supply: 380V, 3-Phase, 50Hz
Forming Speed: 10m/min
Roll Station: 27 stands
Roller Diameter: 95mm
Hydraulic Pressure: 18-20MPa
Forming Size: 688mm
Feeding Thickness: 0.3-0.8mm
Feeding Width: 1000mm
Backboard Thickness: 22mm
Chain Size: 66mm
Cutter Standard: Cr12
Roller Standard: Cr12
Cr-Plating Size: 0.05mm
Overall Size: 15000× 1200× 1100mm
Total Weight: 19T
