| Prod Model: |
1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue |
| Raw Material Width: |
1250mm |
| Material: |
Galvanized Steel |
| PLC Brand: |
Panasonic |
| Motor: |
11kw +11kw |
| Cutting Device: |
Hydraulic Cutting |
| Width: |
1500mm |
| Length: |
13000mm |
| Weight: |
About 14t |
| Forging Forming Method: |
Mold Forging |
| Certification: |
ISO9001: 2008 Ukas |
Product Description
1.1 Feeding width: 1250mm
1.2 Effective width: 1000mm
1.3 Material thickness: 0.5-1.5mm
2. Process flow: Decoiling--feeding---forming---cutting---production
3. Manual Decoiler:
3.1 Material coil inner diameter: 450mm-700mm
3.2 Max coil width: 1200mm
3.3 Carrying capacity: 5T

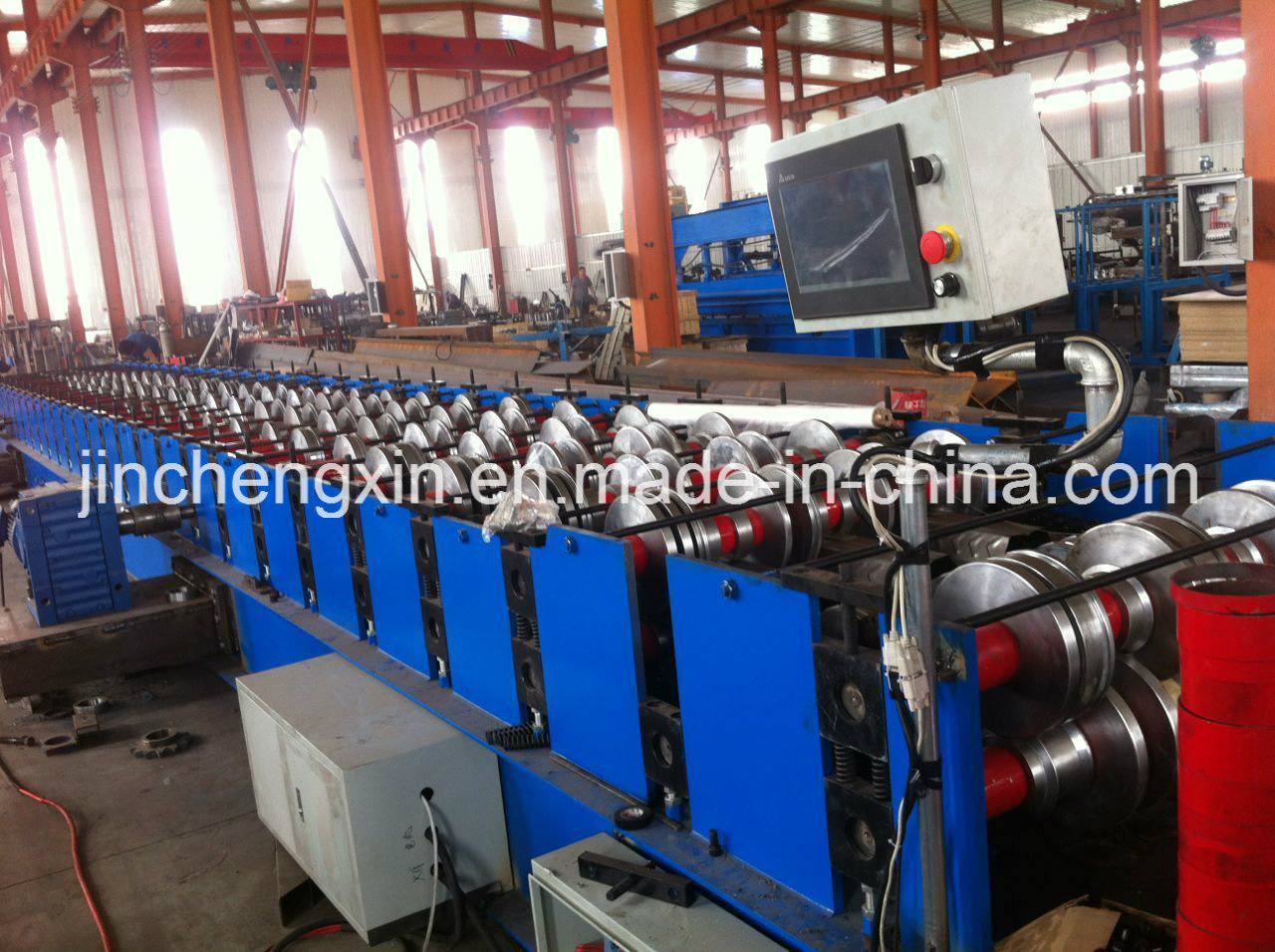

4. Forming Device:
4.1 Number of forming steps: 18 steps
4.2 Shaft material: 45# steel with harden treatment, outer diameter 75mm
4.3 Roller material: 45# steel
4.4 Main motor power: 15kw
4.5 Forming speed: 8-10m/min
4.6 Voltage: 380V/50Hz/3 phase
5. Cutting Device:
5.1 hydraulic cutter
5.2 blade, puncher and mold material: Cr12 steel with quenched treated 60-62C
5.3 cutting system: Advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor.
6. Controlling Device:
6.1 screen: 5.7 inch Taida screen from Taiwan
6.2 PLC: Taida DVP14ES from Taiwan
6.3 coder: Japanese Omron E6C2
7. Hydraulic:
7.1 Advanced hydraulic system from Taiwan
7.2 Power: 11kw
8. Simple output frame: Simple frame weld bu #8 U bar, 1 PCS of 3m
We are professinal manufacture of Roll Forming Machine, Glazed Tile Forming Machine, Corrugated Tile Forming Machine, C/Z/U purlin machine, Ridge Cap Machine, Sandwich panel producing line, and other assistent equipment such as cutting machine, bending machine, decoiler and stacker. A lot of roll forming machines have saled to Russia, Australia, Suriname, Vietnam, Malaysia, North Korea, Kazakhstan, etc. In these years. We have go into international market.
Our factory take the management tenet "top quality, credit based". We make efforts to improve product technology, accelerate the pace of renewal debase, quality, innovation, development of enterprise spirit for clients to provide satisfactory products and services.
We are the largest professional manufacture in cangzhou. We supply high technic desgin and best service for the wholesaler, trading company and final user. We have advantage of researching new products, after sale engineer available for overseas,
Our price is not the lowest but the valuable for customer, our purpose is help customer using the lest cost to get the highest profit.
