| Prod Model: |
1120/1120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue or Other Colors |
| Certification: |
ISO9001: 2008 |
| Attn: |
Ms Shirly |
| Use: |
Sandwichapnel Sheet |
| Advangtage: |
Save Space and Cost |
| Power: |
4+4kw |
| Voltage: |
380V 50Hz |
| Mobilephone Number: |
+8618331794415 |

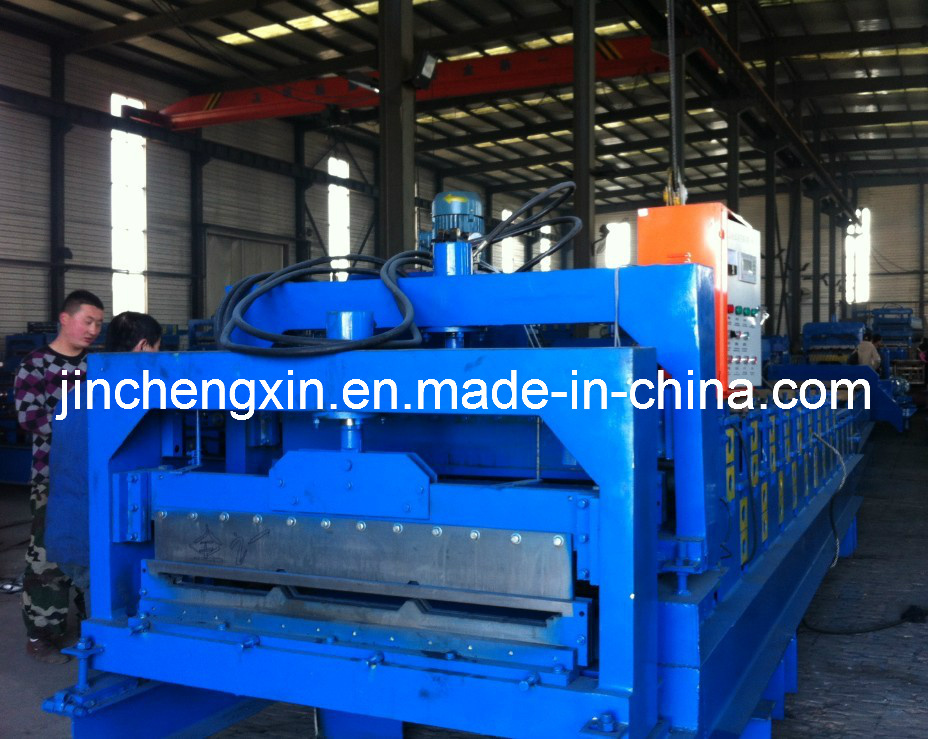

Product Description
1.1 Feeding width: 1250mm
1.2 Effective width: 1000mm
1.3 Material thickness: 0.3-0.8mm
2. Process flow: Decoiling--feeding---forming---cutting---production
3. Manual Decoiler:
3.1 Material coil inner diameter: 450mm-700mm
3.2 Max coil width: 1200mm
3.3 Carrying capacity: 5T
4. Forming Device:
4.1 Number of forming steps: 14 steps
4.2 Shaft material: 45# steel with harden treatment, outer diameter 75mm
4.3 Roller material: 45# steel
4.4 Main motor power: 5.5kw
4.5 Forming speed: 8-10m/min
4.6 Voltage: 380V/50Hz/3 phase
5. Cutting Device:
5.1 hydraulic cutter
5.2 blade, puncher and mold material: Cr12 steel with quenched treated 60-62C
5.3 cutting system: Advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor.
6. Controlling Device:
6.1 screen: 5.7 inch Taida screen from Taiwan
6.2 PLC: Taida DVP14ES from Taiwan
6.3 coder: Japanese Omron E6C2
7. Hydraulic:
7.1 Advanced hydraulic system from Taiwan
7.2 Power: 4kw
8. Simple output frame: Simple frame weld bu #8 U bar, 1 PCS of 3m
|
Suitable to process |
Steel plate |
|
Width of the plate |
1000mm/1200mm/1250mm |
|
Rollers |
9-11rows |
|
Dimensions |
5.8*1.55*1.51m |
|
Power |
4kw+4kw |
|
Thickness of the plate |
0.3-0.7mm |
|
Productivity |
8-10m/min |
|
Diameter of the roller |
¢70mm |
|
Weight |
About 3.4T |
|
Voltage |
380V 50Hz 3pha |
