Product Description

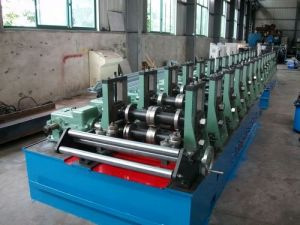

Equipment structure
It is composed of de-coiler, guide rack, leveler, flatting, continuously punching machine, roll forming, correction, cutting-to-length (punching), collection table, electrical control system etc.
Unit performance
1, The thickness of material sheet: 1.5≤ § ≤ 2.0
The width of material: 250≤ § ≤ 450
2, Product speed: 10-12m/min
3, Occupy ground area: Length 30m X width 3m
4, Total power: About35.5kw
|
No. |
Item |
Unit |
Data |
Remark |
1 |
Raw material |
Type |
|
MS\galvanized sheet |
|
|
Strength of panel |
Map |
≥350 |
|
|
Thickness of panel |
mm |
1.2~2.0 |
|
|
2 |
Size |
mm |
See figure |
|
|
3 |
Speed |
m/min |
6~8 |
|
|
4 |
Material of roller |
|
GCr15Hardening treatment |
|
|
5 |
Drive type |
|
Gear box |
|
|
6 |
Total power |
kw |
About 45 |
|
|
7 |
Electrical system |
|
PLC Inverter control |
|
|
8 |
Contour dimension(L*W*H) |
m |
35X4X3.9 |
|
Botou Zhongteng Machinery factory supply all kinds of roll forming machine, our main production: colored steel roll forming machine, Gusset plate machinery, C/Z purlin forming machine, double decked roll forming machine, floor deck roll forming machine, glazed tile roll forming machine, ridge tile roll forming machine, Roof Panel Roll Forming Machine, shutter door roll forming machine, Cutting machine, Bending machine, etc. We have advanced technology and equipment, detection means is consummate, and developed the automatic intelligent production line for roll forming machine.
Our company has perfect after-sales service network, can provide full support to you, helping you get the most satisfactory equipment, and insure you get the device timely to solve all the problems in process. We always put the interests of customers in the first place, and put the concept through design to after-sales service, enables our products to help customers improve efficiency, reduce costs, enhance competitiveness, we will completely according to your requirements and needs to carry on the design and manufacturing, and give you the most ideal machine.
