Prod Model: |
HGJ76 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Code: |
Hgj76 |
Mould Size: |
70 X 400 X 60mm |
Tube Diameter Range: |
25~76mm |
Tube Wall Thickness: |
0.7~1.5mm |
Max. Forming Length: |
360mm |
Forming Speed: |
8-30 Seconds Per Time |
Main Motor Power: |
7.5kw |
Speed Of Mandrel: |
200 Rpm |
Central Height Of Mandrel: |
800mm |
Forging Forming Method: |
Mold Forging |
Product Description

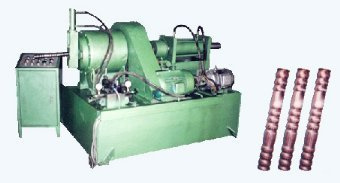

PIPE SWAGING MACHINE
This is a kind of hydraulic forming type machine, for making round stainless steel tubes, copper tubes, aluminum tubes, into various kind of decorative tubes and tapered tubes.
Main technical data:
l Code: HGJ76
l Mould size: 70 x 400 x 60mm
l Tube diameter range: 25~76mm
l Tube wall thickness: 0.7~1.5mm
l Max. forming length: 360mm
l Forming speed: 8-30 seconds per time
l Main motor power: 7.5kW
l Speed of mandrel: 200 rpm
l Central height of mandrel: 800mm
l Machine weight: 3000kg
Our company is an manufacturer and export agent, specialized in cold roll forming machines, metal processing machines, tube machines, pipe machines, transformer making machines, fin making machines, wire bending machines, motor making machines, tank making machines, welding machines, etc. We are supply our customers worldwide with our good qualities, competitve prices and satisfied after-sale services.
