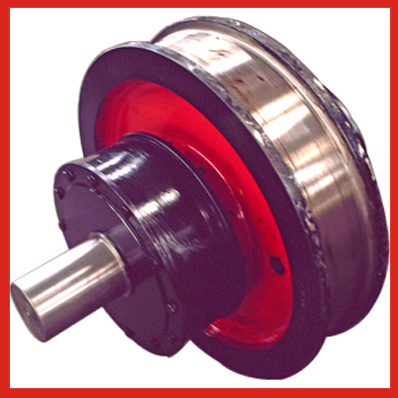

Forged Complete Crane Wheels Assembly

Forged Complete Crane Wheels Assembly
Price: US $ 500-3000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: EBN
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dia.: 315mm-1000mm
Steel No.: 60#,65#,65mn,40crmo
Hardness: HRC45-55
Heat Treatment Depth: 15mm-18mm
Processing Object: Metal
Molding Style: Forging
Molding Technics: Modular Forging
Application: Overhead Crane, Gantry Crane, Portal Crane, Cars
Heat Treatment: Quneching and Tempering

Product Description


Wheel Assembly for Overhead Crane Gantry Crane Portal Crane
Part 1: Descriptions & Application
Wheels are machine-components with load bearing function.When selecting wheels, we can supply you with a broad variety of options.
Complete wheel assemblies are combined with wheel block, shaft, bearing, bearing house and wheel assemblies support, they are widely applied on overhead crane, gantry crane, portal crane, transfering Cars,
Part 2: Wheel features:
-Material: 60#,65#,65Mn,42CrMo
-Heat treatment:hardening and tempering,high frequency quenching or carburizing quenching -Hardness: HRC45-55
-Depth:15-18mm
-Diameter: Φ300-1000mm
Part 3: Process
-Spectral analysis on raw material
-Cutting as requirments
-Forging with modular
-Surface harden
-Heat treatment
-Rough machining
-Normalizing
-NC machining
-Size detecing
-UT Detection
-Assembly
-Packing and anti rust paint
-Delivery

Part 4: Sketch & Dimension






Wheel Dia.
Diamension(kgs)Dead Weight(kgs)
d1b1b2d2d3l1l6nl2d7l12BearingDriven wheelIdle Wheel
31545-559035011017123562185--2221810095
31555-65110

120173



1907010522220123117
40055-65110440120188265622057010522220153147
40070-90140

130202280722158012022222192183
50055-65110540130202280722158012022222212203
50070-90140

14021029082225



22224263253
63065-7512068016023732594250--22226356344
63080-110160

180245335

26510015222230465450
71075-901407601702493509426010015222228474459
71095-160210

190278395104300110

22232683658
80075-901408501802553559427511015222230579559
80095-160210

20028940511431013017222234841809
90075-90140950190268375104290--22232693668
90095-160210

2303154301343351402022224010941055
100075-901401050200279385114300--22234865832
100095-160210

2503324501463551602022224413991345


Zhongyuan Shengqi Co., Ltd is established in 1988. Now it has been in existence for there decades. This time has seen it achieve rapid growth, to become one of the leading manufacturers of Overhead Traveling Crane, Gantry Crane, and Jib Crane, Electric Hoists in China. It now has total asset 54 million US$, with total area 389000m2.

SHENGQI has also been certified as an ISO 9001-2000 company, and follows the highest quality standards. Every crane manufactured by SHENGQI is designed to meet individual customer requirements and work in a large variety of Industries across China and abroad. Cranes manufactured at our factory vary in terms of capacity and design. From five tonnage cranes meant for general duty, to 300 ton cranes which are specially designed as per client specifications. Currently we have the capability to manufacture cranes up to 500 tons.

Our Crane are widely use in the field of Industry, Foundry, Nuclear power, aircraft, automotive, shipbuilding, railway, construction, mining, power insdustry, paper industry, Petro etc, , ,

Ous Sales Amounts reaches 0.7 billion RMB in the year of 2015, and our cranes are widely sold to abt 30 countries, such as Americian, Japan, Korea, Vietnam, India, Indonesia, Britshi, Finland, Argentina, Canada, Pakistan, Thailand etc...

Shengqi is committed to providing you with lifting equipment and services that increase the value and effectiveness of your business.

-Producing durable products that last a long time and perform on the job, exactly as promised.

-Responding to inquiries and requests faster-and with a greater sense of urgencyl

-Embracing your challenges and building solutions to resolve even the most complex problems. L

-Meeting delivery dates, providing support after the sale, and doing exactly what we promised. L

-Being loyal and committed to your success.
