Forged Wheel for Overhead Cranes and Gantry Cranes

Forged Wheel for Overhead Cranes and Gantry Cranes
Price: US $ 500-5000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: forged wheel block
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter: up to 1000mm
Steel Material: 45#, 60#, 65mn, 42 Crmo or Equivalent
Heat Treat: Quenching & Tempering
Hardeness: Hbn305-400
Size: Standard or as Per Requirements
Molding Style: Forging
Processing Object: Metal
Heat Treatment: Quenching & Tempering

Product Description

     Forged Wheel for Overhead Cranes and Gantry cranes

Part 1: Descriptions & Application
Wheels are machine-components with load bearing function.When selecting wheels, we can supply you with a broad variety of options.

Wheels can be separate wheels of diameter 300 to 1000 mm, complete wheel assemblies or as customer drawing or as design proposal approved by customer. They are widely applied on overhead crane, gantry crane, portal crane, transfering Carsetc.

Part 2: Wheel features:
-Material: 60#,65#,65Mn,42CrMo
-Heat treatment:hardening and tempering,high frequency quenching or carburizing quenching -Hardness: HRC45-55
-Depth:15-18mm
-Diameter: Φ300-1000mm

Part 3: Process
-Spectral analysis on raw material
-Cutting as requirments
-Forging with modular
-Surface harden
-Heat treatment
-Rough machining
-Normalizing
-NC machining
-Size detecing
-UT Detection
-Packing and anti rust paint
-Delivery

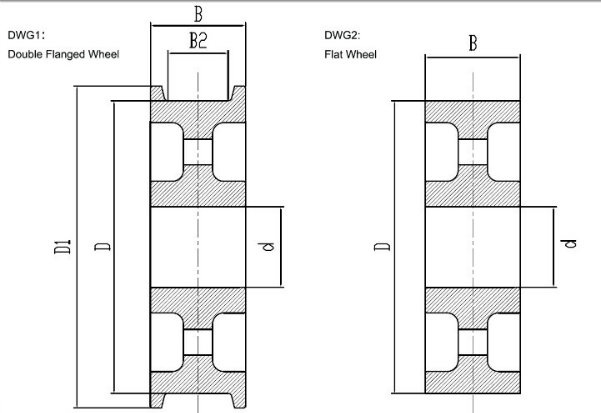

Part4: Sketch & Dimension

WHEEL PRODUCTDIMENSION (mm)
DOUBLE FLANGED WHEELFLAT WHEELDD1dBB2
EBN200AEBN200B20024050-808050
EBN250AEBN250B25030050-10010075
EBN300AEBN300B30035080-11011580
EBN350AEBN350B350400100-125125100
EBN400AEBN400B400450110-130125100
EBN450AEBN450B450500120-150150110
EBN500AEBN500B500550130-160170115
EBN560AEBN560B560610140-170200125
EBN630AEBN630B630680150-180200125
EBN710AEBN710B710760160-230200140
EBN800AEBN800B800850170-250210145
EBN850AEBN850B850900180-250210145
EBN900AEBN900B900950190-250210145
EBN950AEBN950B9501000200-250210145
EBN1000AEBN1000B10001050200-280220145
