| Prod Model: |
124 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wll/T: |
2t, 3.2t, 5.4t, 8t, 12.5t |
| Workanmanship: |
Drop Forged, Die Forged |
| Surface Finish: |
Spray Painting, Powder Coating |
| Optional Colors: |
as Per Request |
| Respone Time: |
Within 24hours |
| Door To Door Delivery: |
Prodivded |
| Customized Design: |
Welcome |
| Production Lead Time: |
20-30days |
| Csutomzied Sample: |
Charge and Refund When Order Placed |
| Exsiting Sample: |
Free |
| Type: |
Hook |
| Material: |
Alloy Steel, Carbon Steel |
| Brand: |
Hetai |
Product Description

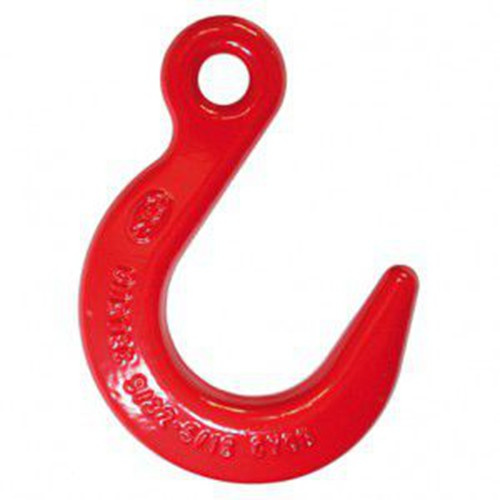

Forging Alloy Steel Tempered Wide Opening Lifting Swivel Hook
Product Scopes:
-----Shackles: Safety Bolt Shackle, Screw Pin Shackle, Anchor Chain Shackle;
-----Hooks: Self-locking Hook, Safety Hook, Eye Hook, Clevis Hook, Grab Hook ;
-----Links: Connecting Link, Master Link, Turnbuckle, Wire Rope Clip, Load Binder;
-----Slings: Flat Webbing Sling, Round Sling, Edaged Protector, Ratchet Straps.
Features
1. It is designed for the crane. it is for steel wire avoids swiveling and twisting the wire rope when working.
2.There is bearing in the lifting swivel hook which brings in good rotating performance.
3. It is connected to the bottom of the steel wire for straightening the steel wire easy to hoist the goods.
4. Material: High Tensile Forged Alloy Steel
5.Construction: heat treatment and high temperature treatment (Quenched and Tempered)
6.Safety Factor: 4 to 1 |
Item No. | W.L.L. | Dimensions (mm) | N.W. | Pack |
| Ton | A | B | B1 | C | D | E | F | G | L | kg | Pcs |
| 8-060-08 | 2.0 | 62 | 32 | 15 | 125 | 13 | 27 | 21 | 28 | 165 | 0.78 | 40 |
| 8-060-10 | 3.15 | 75 | 35 | 17 | 149 | 15 | 32 | 26 | 31 | 193 | 1.20 | 22 |
| 8-060-13 | 5.4 | 91 | 44 | 20 | 180 | 20 | 42 | 33 | 40 | 241 | 2.50 | 12 |
| 8-060-16 | 8.0 | 101 | 53 | 25 | 215 | 24 | 51 | 43 | 49 | 286 | 4.55 | 6 |
| 8-060-20 | 12.5 | 113 | 64 | 35 | 246 | 25.5 | 61 | 45 | 60 | 325 | 6.15 | 4 |
