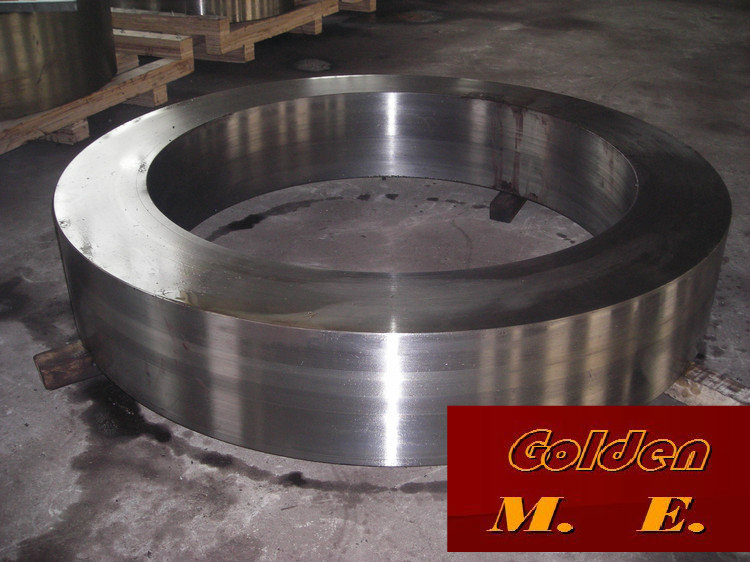

Forging SAE1045 S45c Steel Retaining Ring Used in Gearbox

Forging SAE1045 S45c Steel Retaining Ring Used in Gearbox
Price: US $ 88-666/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: Forging sae1045 c45 steel retaining ring
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: Forging SAE1045 Steel Retatining Ring
Od: From 200mm to 5000mm
Protection: Prepainted with Antirust Oil
Technology: Forging
Processing Object: Metal
Molding Style: Forging

Product Description

Name:Forging sae1045/ck45/c45 steel retaining ring used in gearbox
specifications
Standard: ASME SA182,BS16.9,
Size: 1/2" ~ 60"
Pressure: 150LB, 300LB, 400LB, 600LB, 900LB,1500LB, etc
Sae1045/c45/ck45/c45n forged steel rings
StandardASME SA403,BS16.9,GB12459,EN,DIN,JIS
Materialc45/1045 c50 304,304L,310S,309S,316,316L,317,317L,321201, 202, etc.
Sizes1/2''~50''(DN10~DN1200)
Wall ThicknessSch5X~SchXXS
Bend Degree45, 90,180
TypeElbow, reducer, cross, pipe holder, manhole cover, stub,clamp,union ,valve etc
Steel Flange
StandardsASTMA182,ANSI B16.9, ANSI B16.28, EN10253-2, EN1092-1,JIS B2313,DIN2605,
Stainless Steel304, 304L, 310S, 309S, 316, 316L, 317, 317L, 321, 201,etc.
Carton SteelST35, RST37, S235JR, Q235, SS400
Sizes1/2" to 60" (DN8 to DN1500)
Pressure
Class
150LB, 300LB, 400LB, 600LB, 900LB,1500LB, etc.
TypePlate type Flat Welding Flange,Slip on Neck Flange,Welding Neck Flange,
Blind Flange,Socket Welding Flange,Thread Flange,Screwed Flange,Lap Joint
Stainless Steel Reducer
StandardDIN 2527,2573,2576,2642,2633,JIS B2311,ASME 16.9
Material304, 304L, 310S, 309S, 316, 316L, 317, 317L, 321201, 202,
TechniqueForged
SizeDN15~DN1200 (1/2''~48'')
ThicknessSCH5~XXS

We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.

Forging weight is from 50 kg to 20 ton. Many kinds of materials, free size.

Smelting Process: EF+LF + VD+VC The process as follow: Ingot → Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection → Rough machining→ UT → 2th Heat treatment → Finishing machining → Inspection

Applications: The heavy forging: Forged ring, shaft, roller, flange, or gear is widely used for various industries For example: Metallurgy, mining, power station and so on.

Specifications:

Description

The heavy forging: Forged ring, shaft, roller, flange, or gear

Material

Alloy steel or stainless steel

Material standard

ASTM or GB/T3077-1999

Specification

As per specified requirements

Weight

Max. 250 ton

Smelting Process:

EF+LF + VD+VC

Process

Ingot→ Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection

→ Rough machining→ UT → 2ND Heat treatment → Finishing machining → Inspection

UT standard

EN10228, ASTM A388 or JB/T 5000.15-1998

Competitive Advantage:

The heavy forging is manufactured by large scale stated enterprise. Advanced technical process from smelting steel to forging and heat treat guarantees the product quality. Closed relationship with several famous stated enterprises guarantee "in-time delivery" and competitive price.

Excellent product quality and service, competitive price, "in-time" delivery
