| Prod Model: |
HDLW12-30*3000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| High Precision: |
Easy to Correct Wrong Edge |
| Hydraulic Control: |
ISO: 9001: 2000 |
| CNC Control System: |
Compact Structure |
| Self-Compensation System: |
Surface Finishing |
| Once Circle Forming: |
Overload Protection |
| Rolls Heat Treated: |
Whole Welded Chassis |
| High Efficiency: |
Emergency Stop System |
| Central Lubrication: |
Braking Balance Device |
| Pre-Bending Function: |
Rolls Material: 42crmo |
| Wide Application: |
Leveling Easily |
Product Description

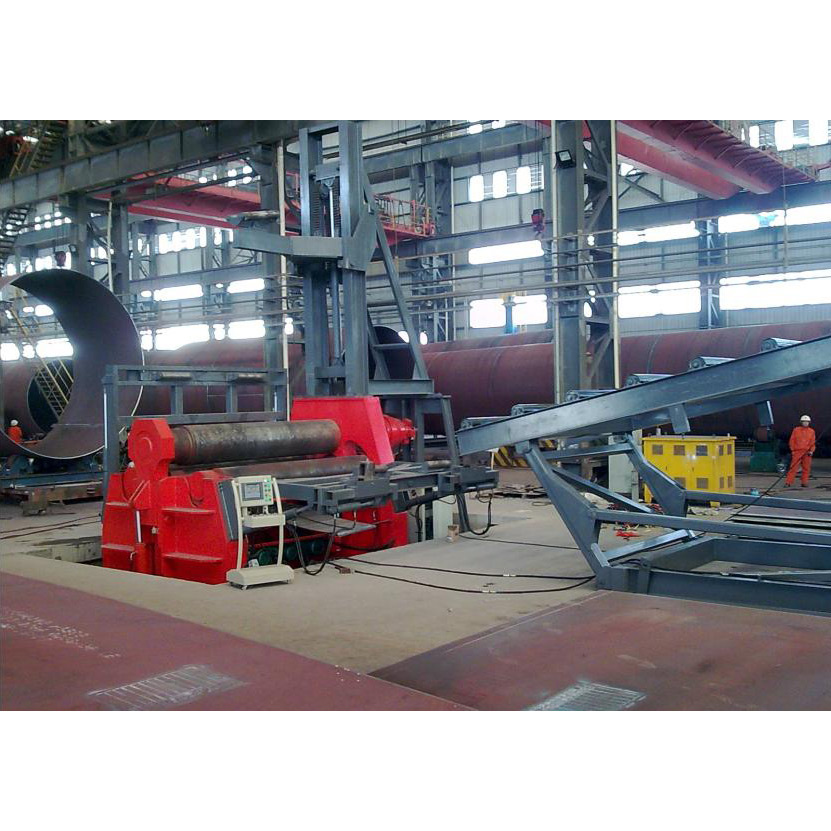

Four roller CNC Rolling Machine (W12-30*3000)
1. Superiority and some features usually only in large size plate rolling machine:
2. Fully hydraulic-driven (as opposed to the usual manual and mechanical movement)
3. Multiple independent hydraulic motor (as opposed to only one set of electric motors, reduction unit and gear)
4. Automatic hydraulic line speed compensation (as distinct from inefficient clutch)
5. Clamping pressure control (as opposed to holding without control)
Machine model options
1. Roller surface hardened
2. Hydraulic roller cone winding attachment
3. Surface finishing
4. Hydraulic top support system
5. Hydraulic side pressure
6. Brace perimeter security fence
7. CNC control system
8. Automatically oil cooler
Model standard device
1. LCD digital electronic reading devices
2. Two clamping pressure rollers, driven by two independent hydraulic motor
3. Driven hydraulic front controller more speed,
4. Control of the entire machine
5. Emergency security emergency stop
Following users apply to use the machine
1. First use of the user, because this is one of the most easy-to-operate machine
2. Operators lack of inspection requires high productivity,
3. Increase profitability requires high accuracy,
4. Improving quality want only one operator, reducing labor costs
5. Due to the large size of the Board, production of high-or for security reasons require handling device
6. Want to use CNC operations, reduce operational personnel action levels think factor.
|
HDLW12 four roller plate rolling machine technical parameters |
|
Model |
Max pre-bending thickness(mm) |
Max bending thickness(mm) |
Diameter of
upper roller
(mm) |
Max plate width(mm) |
Main motor power(kw) |
|
HDLW12-10x1500 |
8 |
10 |
250 |
1500 |
11 |
|
HDLW12-12x2000 |
10 |
12 |
260 |
2000 |
15 |
|
HDLW12-16x2000 |
12 |
16 |
275 |
2000 |
18.5 |
|
HDLW12-20x2000 |
16 |
20 |
280 |
2000 |
18.5 |
|
HDLW12-25x2000 |
20 |
25 |
350 |
2000 |
22 |
|
HDLW12-30x2000 |
25 |
30 |
380 |
2000 |
37 |
|
HDLW12-25x2500 |
20 |
25 |
400 |
2500 |
37 |
|
HDLW12-30x2500 |
25 |
30 |
400 |
2500 |
37 |
|
HDLW12-30x3000 |
25 |
30 |
480 |
3000 |
45 |
|
HDLW12-40x3000 |
32 |
40 |
550 |
3000 |
55 |
|
HDLW12-50x3000 |
40 |
50 |
610 |
3000 |
55 |
|
HDLW12-60x3000 |
50 |
60 |
670 |
3000 |
75 |
|
HDLW12-70x3000 |
60 |
70 |
730 |
3000 |
75 |
|
HDLW12-80x3000 |
65 |
80 |
780 |
3000 |
90 |
|
HDLW12-90x3000 |
75 |
90 |
820 |
3000 |
90 |
|
HDLW12-100x3000 |
80 |
100 |
880 |
3000 |
110 |
