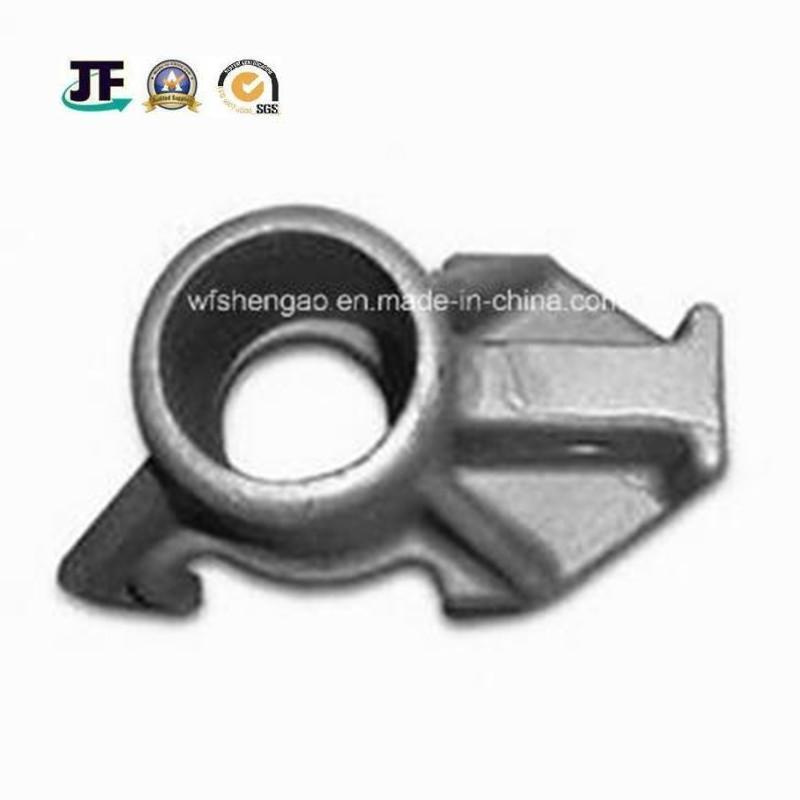

Gg25/Gg30 Sand Casting Cast Iron of Casting Parts with CNC Machining

Gg25/Gg30 Sand Casting Cast Iron of Casting Parts with CNC Machining
Price: US $ 1-10/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin: Shandong(Mainland)
Standard Or Nonstandard: Nonstandard
Castig Type: Silica Sol Casting, Precision Casting
Qualiy Control: Professional QC Stuff, Spectrograph
Unique: China Golden Supplier
Price: Factory Price
Quality: Strong Enginnering Team Make High Q
Item: Carbon/Alloy Steel Casting Flange Parts for Preci
Dimension: Customized
Process: Hot Forging, Heat Treatment, CNC Machining
Type: Clay Dry Sand

Product Description

Product Description



OEM Sand Casting Valve Body with machining and painting

1.strict QC & timely delivery
2.Standard:BS,DIN,ASTM
3.good at custom
4.OEM



1.Material: GGG40.

2.Size:CN150X150mm.

3.Weight:3.4kg.

4.Technological process: Sand casting+CNC Machining.

5.Inspection: mechanical properties, leaking free test conducted by in-house or third party

6.Use: Submersible pump body


production capacity :

1.Casting classification:Sand casting;Precision casting;Vacuum process casting etc.

2.gray iron, ductile iron, stainless steel ,carbon steel,alloy steel, etc.

3. Adoption standard: BS,DIN,ASTM GB etc.

4. Weight range:0.5~5000kg.

5. Producing capacity : 2,000 tons per month .

6. Main application: Metallurgy;Machinery;Plastics;Rubber;Pharmaceutical;
Textiles;
Mining; Paper-making; Packaging.

7. Main equipments: Furnaces;heat treatment furnaces;direct-reading spectrometer;shot -blasting equipments, etc.

8. Surface treatment: polishing,plating,shot blasting,heat treatment ,etc

9. Inspection and test: Foundry in home,third part inspection,Material report,UT, MT, RT, and PT,etc..

10. Packing and shipping : Stand export packing;20day make modul & sample;delivery time against your quantity.

11. Casting service: your logo, character, trade name, number etc can be casted on the surface clearly.

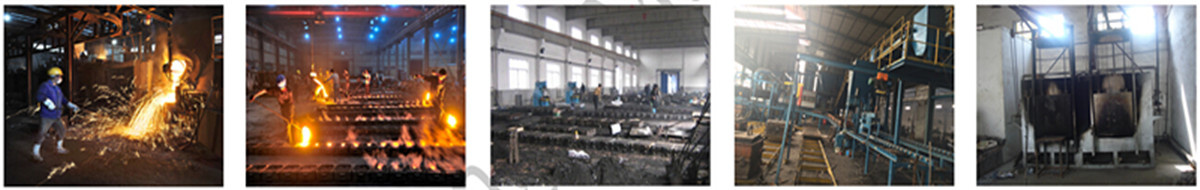

Sand casting Process


OEM Chinease Foundry Valve Body Sand Castings of Cast Iron/Iron Casting Part

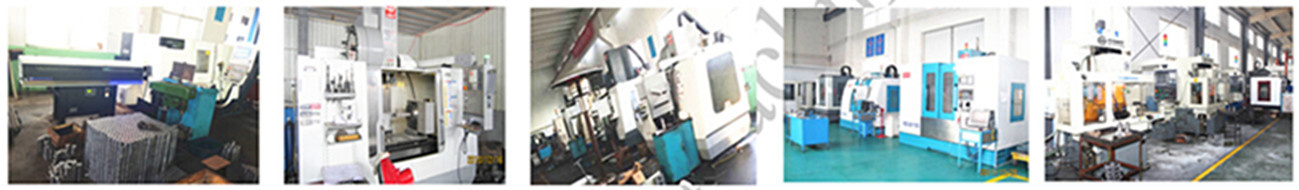

Machining Process



 OEM Chinease Foundry Valve Body Sand Castings of Cast Iron/Iron Casting Part

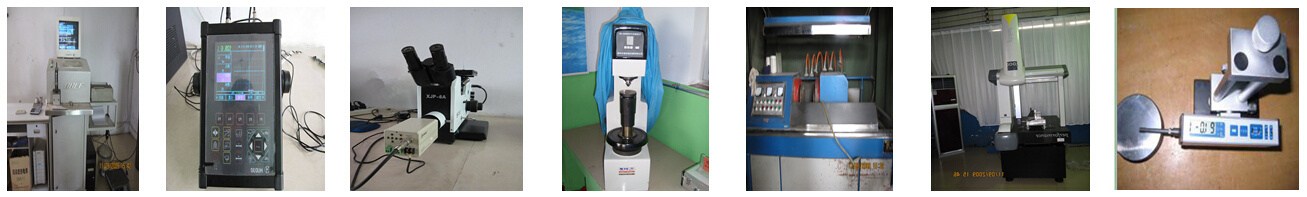

Quality Control

OEM Chinease Foundry Valve Body Sand Castings of Cast Iron/Iron Casting Part
1.Ductile Iron Castings:

  1. molding process: Resin sand/Green Sand
  2. Material: EN-GJS-400-15/EN-GJS-500-7/EN-GJS-600-3/EN-GJS-700-2
  3. Molding: Hand molding/Molding machine Z145/146/148/Molding line.
  4. Possible Heat Treatment: Annealing
  5. Industry involved: Municipal Construction / Fluid
    /Automotive
  6. Part unit weight range: 0. 5kg-2000kgs
  7. Max/Min wall thickness requirements: 4mm-250mm
  8. Manufacturer Certification: ISO9001(2000)/ TS16949
2. Grey iron castings:
1) molding process: Green sand/Resin sand
2) Material: EN-GJL-150/DIN 1691 GG-15,EN-GJL-200/DIN 1691-GG20,EN-GJL-250/DIN1691-GG25
,EN-GJL-300/DIN1691-GG30
3) Molding: Hand molding/ Molding machine Z145/146/148/Molding line.
4) Industry involved: Municipal industry/Construction Fluid industry/Automotive industry
5) Part unit weight range: 0.5kg-2000kgs
6) Max/Min wall thickness requirements: 4mm
7) Manufacturer Certification: ISO9001(2000)/ TS16949

WeiFang Shengao Machinery Co., Ltd is located in WeiFang the famous city in China and the world center of kites. It is 140 kilometers far away from Qingdao port, the transporation is very convenient. Our company use the location advantages of ShanDong province to integrate resources so that we can processing according to the drawings of customers. We mainly undertake the casting parts, machined parts and other products. Our Import and Export Department have many years experiences of foreign trade, products are mainly exported to the United States, Denmark, Italy, Russia, Australia etc.

Over the years, company adhere to the guideline for management of "Quality first, Reputation first, Delivery just-in-time, Price best". We will try our best to improve the technical level and perfect the enterprise management. Our company will depend on superior quality of products and sincere service to cooperate with dometic and overseas, new and old customers and establish eternal friendship to create a bright future.
