Machine Color:
Made-to-Order
Place Of Origin:
China
Rollers Material:
No.45 Forged Steel, Plated with Hard Chrom
Shaft Diameter:
72mm Solid Steel
Operation Language:
English or as Per Client`S Required
Certificate:
CE, ISO
Guarantee Time:
First Year Free, Lifetime Services
Control System:
Mitsubishi PLC & Converter
Machine Size:
About 11*1.5*1.4m
Name:
Glazed Roof Tile Roll Forming Machine
Forging Forming Method:
Cold Roll Forming
Product Description

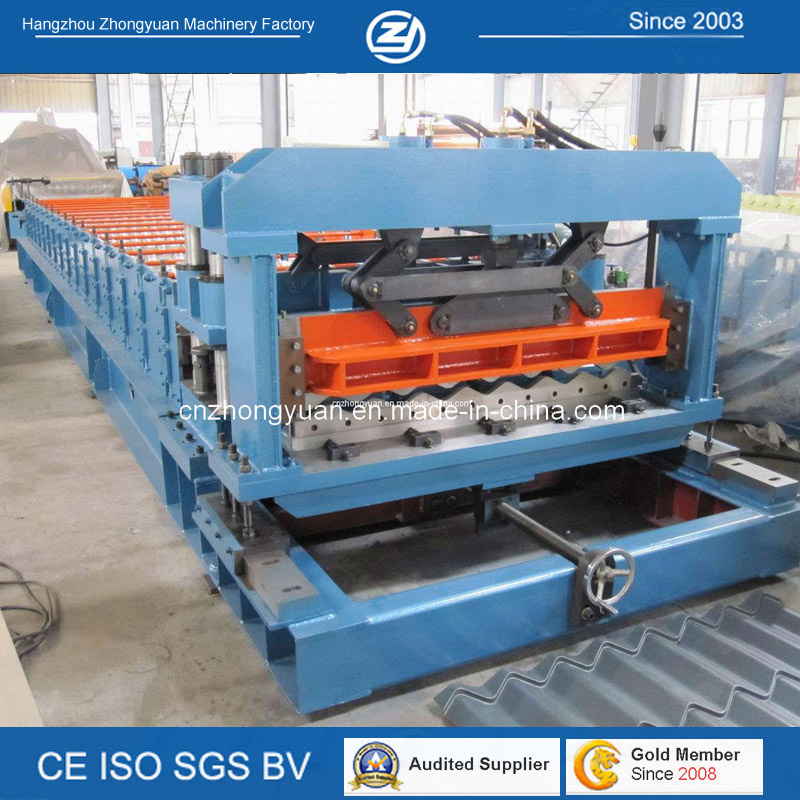

Glazed Roof Tile Roll Forming Machine
1. Our strength
With Zhongyuan products you save time and money! Zhongyuan is a "All-in-house source" --from raw material to the final high-precision forming machine. We have our precise tooling center. When roll forming machine must be delivered immediately, depending on customer`s features, we can manufacture and deliver machine in only 5-8 weeks.
You can rely on our team! The dedicated staff at Zhongyuan is our key to success. We have engineers with experience more than 15 years in metal forming industry. Employees and their development are of fundamental importance to Zhongyuan.
Quality by Zhongyaun Zhongyuan is certified according to the standards ISO 9001: 2008 and EN982: 2008, EN ISO12100-1: 2003, EN ISO 14121-1: 2007. Our Integrated Management System comprises Quality, Environment, Employment and Health Protection. When it comes to safety, there are no compromises.
2. Certificate
CE; ISO; SONCAP
3. The third party inspection: SGS, BV
Item
Specification
Type
Color steel sheet
Material
Thickness(mm)
0. 5 -0. 6
Yield strength(mpa)
23 5 -3 45
Roller material
45#Chrome steel
Forming speed(m/min)
About 1500-2000mm/min or 4-5m/min. For option
Step distance
Adjustable according to requirement (>=250mm)
Speed adjusting mode
AC Frequency
Roller drive
Decelerating motor + Chain drive
Cutting mode
Hydraulic cutting
Cutter material
Cr12 mould steel
Length measurement
Encoder
Control mode
Mitsubishi PLC
Operating mode
Button + Mitsubishi Touch screen
Main motor power(kw)
5.5KW (Depend on final design)
Hydraulic station power
5.5K W (Depend on final design)
Total power(kw)
11KW
Uncoiler's loading capacity
Max. Capacity: 5000kgs (can be increased to be 10T)
Machine`s size
About 18*1.7*1.4m (Depend on final design)
Machine weight
About 9000kgs
Components of machine:
Decoiler
1set
Feeding & guiding device
1set
Main roll forming machine
1set
Pressing device
1set
Hydraulic cutting system
1set
Controlling system
1set
Run out table
1set
Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Pressing--Hydraulic Cutting – Product to Run Out Table
Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system. We offer a vast range of products, including in sandwich panel line, metal tile forming machine, cladding forming machine, metal decking forming machines, etc. We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.
At Zhongyuan, our R&D department is staffed with senior engineers who has more than 10 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution. And more, Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines. All our forming machines are undergoes a series treatments, like cutting frames with heat treatment to remove stress of steel, to ensure all our performance requirements are met.
At Zhongyuan, we endeavor to provide quality built metal forming machines at economical prices. By purchasing qualified raw materials from suppliers which we have long term relationships with, we greatly reduce our material cost. Our company is located in Hangzhou City, about 2 hours from Shanghai and 1.5 hours from Ningbo port. This location allows us to ship products quickly and economically to our customers all over the world. As a result, we are able to satisfy our customers with both a high quality and economical metal forming machines.
Today, we have established lasting business relations with customers in more than 20 countries, such as America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, U. A. E, Nigeria, Tanzania, Ethiopia, Gana, South Sudan, Algeria, Niger, Philippines, Indonesia, India, and others.
We have rich experience for metal forming machine solution, competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
