| Prod Model: |
828/1035 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter Of The Roller: |
70mm |
| Weight: |
3t |
| Suitable To Process: |
Color Steel, Galvanized Sheet, Aluminum |
| Thickness Of The Plate: |
2-8mm |
| Width Of The Plate: |
1000/1100/1200/1250 |
| Type: |
Metal Rolling&Drawing Machine |
Product Description

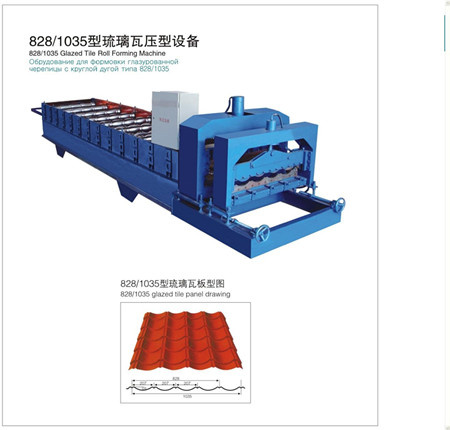

China Gold manufacturer of roll forming machine
1 Component
Decoiler, Main roll forming system, Pressing device, Cutting device, Hydraulic station, PLC control
2 The general machine parameter
Suitable materia
Color steel sheet or galvanized steel sheet
Machine Sizes
4600*1300*1200mm
Main motor power
3KW with Cycloidal reducer
Hydraulic station power
3KW
Thickness of material
0.2mm~0.7mm
Diameter of principal axis
70-90mm
Material expand width
1000mm~1250mm
Electric tension
380V 3phase 50Hz or as the customer's requirements
Material of roller
High grade 45# forged steel plated with hard chrome plating
Processing speed
8-10m/min
Material of cutting
Cr12 mould steel with quenched treatment
Kind of drive
0.6 inch chain link bearing model 6210
Roller station
9 Rollers
3Automatic PLC
( The PLC can be designed according to your requests).
Computer
Taiwan's "DELTA"
Encoder
Wuxi's "REP"
Switch
CHNT
Transducer
Guangzhou's "Sanjing"or Japan's "OMRON"
4Service
We provide the technical support for whole life.
Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.
When need the technician to go abroad, we will arrange the technician.
But the buyer should take all the cost, including Visa, Roundtrip ticket,
Suitable accommodation and pay the service fee to the technician with $50/days
5The Production Process
Decoiler-Flating-Feeding & punching-Forming-cut-to-length -Colletion (Finished goods.
Botou Xinfeng Roll Forming Machinery Factory was established in 2003. We are located at China's foundry town - Hebei Botou, south of Beijing and Tianjin, east of Bohai (Huanghua), west of Shijiazhuang, Jinan, just 200 km. It has favorable geographical position and convenient transportation.
As a professional manufacturer, we mainly export the following product series:
Roll forming machines: 840 860 900 910 tile forming machine, double layer roll forming machine such as 840/1050 840/900 860/850, Glazed tile forming machine 760 828/1035 840 1100
Wall and Roof panel forming machine
C&Z&U forming machine H beams
Decking forming machine Guardrail roll forming machine
Sandwich panel production line: EPS sandwich panel PU and rock wool sandwich panels
Wrapping machines bending machines cutting machines stamping plant
After years of practical experience and experts design, we have developed in to a modern enterprise, which combine the design, produce, sale, installation, debug, and after sale service. We have high level professionals and production ability which helps us enjoy a high reputation from home and abroad. We insist on the enterprise idea of make further development by quality and innovation and good faith We can provide professional service for row material, will design, machines and installation on the basis of realistic, high-quality, innovation and development.
In recent years, we increase support for developing and producing roll forming machines for foreign market. We have rich production experience for exporting equipment. Insisting in the principles of nothing is impossible to a willing heart, we have already established good relationships with many clients from Russia, Kazakhstan, Uzbekistan, India, Malaysia, Sri Lanka, Vietnam, Indonesia, Nigeria, Tanzania, Bolivia, Congo and Egypt etc. We sincerely welcome friends from all over the world to visit and cooperate with us for mutual benefits and create brilliant future together.
