| Prod Model: |
JCH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Roof and Wall |
| Thickness: |
0.3-0.8mm |
| Diameter Of Active Shaft: |
70mm |
| Width Of The Plate: |
1000mm |
| Material: |
Color Steel /Galvanized Sheet |
| Productivity: |
8-12m/Min |
| Function: |
Waterproof |
| Type: |
Metal Rolling&Drawing Machine |

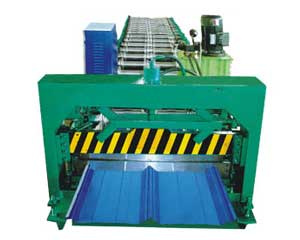

Product Description
1.1 Feeding width: 1000mm
1.2 Effective width: 820mm
1.3 Material thickness: 0.3-0.8mm
2. Process flow: Decoiling--feeding---forming---cutting---production
3. Manual Decoiler:
3.1 Material coil inner diameter: 450mm-700mm
3.2 Max coil width: 1200mm
3.3 Carrying capacity: 5T
4. Forming Device:
4.1 Number of forming steps: 17 steps
4.2 Shaft material: 45# steel with harden treatment, outer diameter 75mm
4.3 Roller material: 45# steel.
4.4 Main motor power: 7.5kw
4.5 Forming speed: 8-10m/min
4.6 Voltage: 380V/50Hz/3 phase
5. Cutting Device:
5.1 Hydraulic cutter
5.2 Blade, puncher and mold material: Cr12 steel with quenched treated 60-62C
5.3 Cutting system: Advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor.
6. Controlling Device:
6.1 Screen: 5.7 inch Taida screen from Taiwan
6.2 PLC: Taida DVP14ES from Taiwan
6.3 Coder: Japanese Omron E6C2.
Botou Xinfeng Roll Forming Machinery Factory was established in 2003. We are located at China's foundry town - Hebei Botou, south of Beijing and Tianjin, east of Bohai (Huanghua), west of Shijiazhuang, Jinan, just 200 km. It has favorable geographical position and convenient transportation.
As a professional manufacturer, we mainly export the following product series:
Roll forming machines: 840 860 900 910 tile forming machine, double layer roll forming machine such as 840/1050 840/900 860/850, Glazed tile forming machine 760 828/1035 840 1100
Wall and Roof panel forming machine
C&Z&U forming machine H beams
Decking forming machine Guardrail roll forming machine
Sandwich panel production line: EPS sandwich panel PU and rock wool sandwich panels
Wrapping machines bending machines cutting machines stamping plant
After years of practical experience and experts design, we have developed in to a modern enterprise, which combine the design, produce, sale, installation, debug, and after sale service. We have high level professionals and production ability which helps us enjoy a high reputation from home and abroad. We insist on the enterprise idea of make further development by quality and innovation and good faith We can provide professional service for row material, will design, machines and installation on the basis of realistic, high-quality, innovation and development.
In recent years, we increase support for developing and producing roll forming machines for foreign market. We have rich production experience for exporting equipment. Insisting in the principles of nothing is impossible to a willing heart, we have already established good relationships with many clients from Russia, Kazakhstan, Uzbekistan, India, Malaysia, Sri Lanka, Vietnam, Indonesia, Nigeria, Tanzania, Bolivia, Congo and Egypt etc. We sincerely welcome friends from all over the world to visit and cooperate with us for mutual benefits and create brilliant future together.
