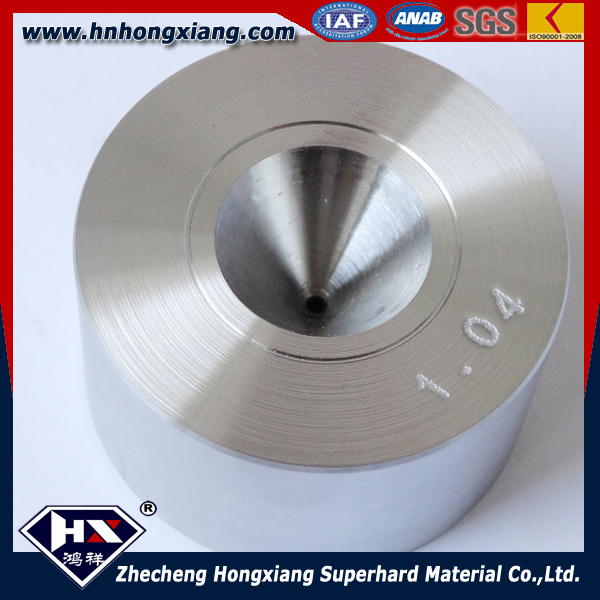

Good Quality PCD Diamond Die Blanks

Name: Good Quality PCD Diamond Die Blanks
Brand: china-castingforging.com
SKU: 703270672
Availability: InStock
Rating: 4.7 (52 reviews)

Price:	US $ 0.9/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	5/Piece
Pay Type:	T/T,Paypal,Money Gram

Contact Supplier

Zhecheng Hongxiang Superhard Material Co., Ltd.

Showroom Product Company Profile

Prod Model:	HX PCD dies
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	PCD Die Blanks for Company
Brand:	Hongxiang
Factory Address:	Henan, China
Factory History:	26 Years
Certificate:	ISO9001
Application:	Hardware
Material:	Diamond
Certification:	ISO9001

Product Description

Key words	PCD die blanks , wire drawing die blanks , diamond die blanks , PCD blanks , wire die blanks . Polycrystalline diamond die blanks
Size	D6 - D12 - D15 - D18 - D21 - D24 - D27 - D30 - D33 - D36
Application	For making all metal use wire drawing die , like copper PCD die , steel PCD die , iron PCD die , and so on
Bond	Coalt-based
Shape	Hexagon , Round
Type	Supported , Unsupporting
Grit	1um - 3um - 5um - 10um - 25um - 50um
Max Hole size	0.4mm - 20mm
Temperature resistant	650 degree
Note	1.Mount at temperautres not exceeding 650 degree . 2.Maximu recommend bearing diameter for "soft" nonferrous wire . " Hard " wire diameter normally should not exceed 65% of this diameter .
Quality Guarantee	Quality problem , we will exchange new one for you .
Packing	plastic bag & carton
Shipping ways	TNT ,DHL,FEDEX,EMS,UPS ,AIR SHIPPING ,SEA SHIPPING
Shipping time	5-7 work days
Payment terms	100% prepayment by T/T , western union , Paypal , Credit
Contact Person	Ms.Belinda
Factoty	ZHECHENG HONGXIANG
Website	www.hnhongxiang.com
Factory address	Shangqiu city , Henan province , China
Factory history	26 years
Factory main products	1. PCD die blanks & PCD die 2. PDC cutter for oil drilling bit 3. PCD cutting tools 4. Diamond powder

Advantage1. High hardness, abrasion resistance and impact resistance
2. High speed
3. Cutter layout is force balanced to drill a precise round hole and reduce bit whirl
4. Gauge pads have tungsten carbide inserts for maximum wear resistance
5. The diamond layer with thickness over 1 mm increases abrsion resistence of PDC cutter.
6. Sintered at high pressure and temperature

Usage: It can be used in making wire-drawing die, Geological bit, oil bit, PCD cutting tools, wood cutting tool, and polishing Jewels
Size: 10*1/10*0.75

All of our business is carried out in full compliance with the ISO9001 Certification.
Please contact us if you would like any further information.

ADDMA
Code

Product NO.

Product Dimensions

Average Grain Size(um)

Max.Die4
Recommended
(mm)

Φd

ΦD

WKH2510

2.5±0.2

1.0+0.2

√

0.4

D12

WKH3215

3.2±0.2

1.5+0.2

√

1.0

D15

WKH5225

5.2±0.2

2.5+0.2

√

1.5

D18

WKH5235

5.2±0.2

3.5+0.2

√

2.0

WKR2510

2.5±0.2

1.0+0.2

√

0.4

WKR3110

3.1±0.2

1.0+0.2

√

0.5

D12

WKR3115

3.1±0.2

1.5+0.2

√

1.0

D15

WKR5225

5.2±0.2

2.5+0.2

√

1.5

D18

WKR5235

5.2±0.2

3.5+0.2

√

2.0

D21

WKR7040

7.0±0.2

4.0+0.2

√

3.0

D24

WKR9853

9.8±0.2

5.3+2

√

4.0

D12

WKY4015

4.0±0.2

8.12±0.13

1.5+0.2

√

1.0

D15

WKY4023

4.0±0.2

8.12±0.13

2.3+0.2

√

1.8

D18

WKY4029

4.0±0.2

8.12±0.13

2.9+0.2

√

2.3

D21

WKY7040

7.0±0.2

13.65±0.13

4.0+0.2

√

3.5

D24

WKY7053

7.0±0.2

13.65±0.13

5.2+0.2

√

4.6

D27

WKY12987

12.9±0.2

24.13±0.25

8.7±0.25

√

5.8

D30

WKY129120

12.9±0.2

24.13±0.25

12.0±0.25

√

7.6

D31

WKY152120

15.2±0.2

26.6±0.25

12.0±0.25

√

9.0

D33

WKY152150

15.2±0.2

26.6±0.25

15.0±0.50

√

10.0

D33

WKY18150

18.5±0.2

29.0±0.25

15.0±0.50

√

11.0

D33

WKY18180

18.5±0.2

29.0±0.25

18.0±0.50

√

12.0

Hongxiang Superhard Material Co., Ltd. is an expert manufacturer of synthetic diamond grits, powders, drill bits and blades. The company is built on 25 years of experience in serving the industrial diamond industry. Its expansive online catalogue covers such customer favorites as the diamond micro powder, cutting disc, lapping paste, diamond whetstone, PCD&PDC etc. Hongxiang's major export destinations include the US, Canada, Australia, Indonesia, India, Brazil, Iran, Turkey, the UK, France, and Germany.

Hongxiang is affiliated with Wanke Group. Established in April 1990 and in April 2004 with registered capital of 10 million RMB, and with total construction area of 120, 000 square meters, Hongxiang is now one of the largest manufacturers in East Henan of synthetic diamonds and industrial diamond products. We build modern workshops, warehouses, offices, and dormitories, hire 14 senior and MID-level technicians, own and operate 60 sets of advanced manufacturing and testing equipment.

Hongxiang factories are strategically located in a small city to control production costs, and thus to pass more savings along to customers. The company introduces top-notched software and equipment to facilitate quality control and product development. Advanced OEC method optimizes management and keeps spurring employees on to pursue excellence.
