| Prod Model: |
HX - PCD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |

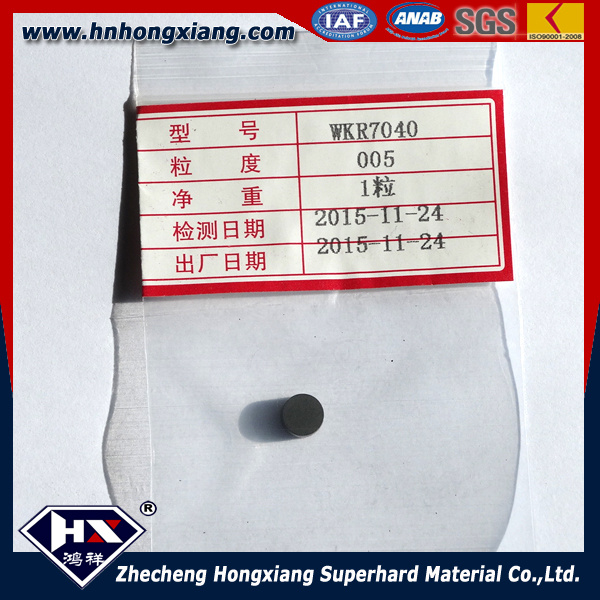

Wire Drawing Dies |
| Usage: |
for Making PCD Diamond Wire Drawing Die |
| Shape: |
Round |
| Feature: |
Fine Grit , Long Working Life |
| Grit: |
1um - 50um |
| Application: |
Hardware |
| Material: |
Stainless Steel |
Product Description
Size rangetolerancecasing ref. Size
Inchmmmmmm
≤ 0.0008≤ 0.0200.0006Φ 25× 6
0.0008 0.00190.020 0.0500.0006Φ 25× 8
0.0020 0.00390.051 0.1000.001Φ 25× 8
0.0040 0.00790.101 0.2000.001Φ 25× 8
0.0080 0.01990.201 0.5000.0015Φ 25× 8
0.0200 0.03990.501 1.0000.002Φ 25× 10
0.0400 0.05901.001 1.5000.0025Φ 25× 12
0.0591 0.08661.501 2.2000.003Φ 25× 14
0.0867 0.12992.201 3.3000.004Φ 28× 16 Φ 30× 16
0.1300 0.18103.302 4.6000.005Φ 28× 18 Φ 30× 18
0.1811 0.21644.601 5.5000.006Φ 43× 26
0.2165 0.31505.501 8.0000.008Φ 43× 30
All of our business is carried out in full compliance with the ISO9001 Certification.
Please contact us if you would like any further information.
| BWG | inches | mm | BWG | inches | mm | BWG | inches | mm |
| 5/0 | 0.5 | 12.7 | 10 | 0.134 | 3.404 | 24 | 0.022 | 0.559 |
| 4/0 | 0.454 | 11.532 | 11 | 0.12 | 3.048 | 25 | 0.02 | 0.508 |
| 3/0 | 0.425 | 10.795 | 12 | 0.109 | 2.769 | 26 | 0.018 | 0.457 |
| 2/0 | 0.38 | 9.652 | 13 | 0.095 | 2.413 | 27 | 0.016 | 0.406 |
| 0 | 0.34 | 8.636 | 14 | 0.083 | 2.108 | 28 | 0.014 | 0.356 |
| 1 | 0.3 | 7.62 | 15 | 0.072 | 1.829 | 29 | 0.013 | 0.33 |
| 2 | 0.284 | 7.214 | 16 | 0.065 | 1.651 | 30 | 0.012 | 0.305 |
| 3 | 0.259 | 6.579 | 17 | 0.058 | 1.473 | 31 | 0.01 | 0.245 |
| 4 | 0.238 | 6.045 | 18 | 0.049 | 1.245 | 32 | 0.009 | 0.229 |
| 5 | 0.22 | 5.588 | 19 | 0.042 | 1.067 | 33 | 0.008 | 0.203 |
| 6 | 0.203 | 5.165 | 20 | 0.035 | 0.889 | 34 | 0.007 | 0.178 |
| 7 | 0.18 | 4.572 | 21 | 0.032 | 0.813 | 35 | 0.005 | 0.127 |
| 8 | 0.165 | 4.191 | 22 | 0.028 | 0.711 | 36 | 0.004 | 0.102 |
| 9 | 0.148 | 3.759 | 23 | 0.025 | 0.635 |
|
|
|
