| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Round and Long |
| Shape: |
as Per Drawing |
| Max Weight: |
60 Tons |
| Material: |
Steel |
Product Description

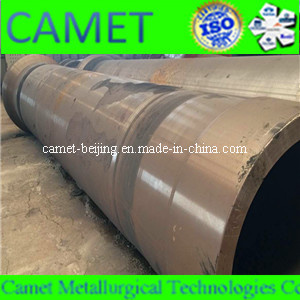

Grey Iron Pipe Mould,Pipe Mould
Properties
We are qualified with ISO9001 certificate to manufacture iron Centrifugal Casting Machine and Casting Mould. We supply high quality ductile iron pipe mould whose diameter ranks from DN1000to DN2000,the maximum length can be 9000mm,and the type of the mould, such as the split type and the unitary type, can all be produced, which all attribute to our metallurgical quality control equipment and system.We have EBT arc furnace,LF furnace, LF VD furnace,LF VOD furnace, etc. All of which can guarantee the quality of the ingot, and Our quality material of centrifugal casting pipe mould is 21CrMo10, 18CrMoV and other material on your depend. Unlike other forging factories, we forge and manufacture the ingot into pipe mould ourselves, in order to do this, we spent lots of money to made our own mandril in different types, which makes our price more competitive. Our pipe mould has been transported to many countries, such as US, Turkey, India, Australia, etc.
Chemical Analysis
Grades | C | Si | Mn | P | S | Cr | Mo |
| 21CrMo10 | 0.16~0.23 | 0.20~0.40 | 0.20~0.40 | ≤0.015 | ≤0.012 | 2.30~2.60 | 0.30/0.40 |
Physical Properties
| Materials | Yield strength (MPa) | Tensile strength (MPa) | Elongation(%) | Ak(J) |
| 21CrMo10 | >= 539 | >= 637 | >=17 | >=44 |
Depending on the excellent leadership, stable and professional employees, perfect management system and rapidly developing business, Camet Metallurgical Technologies Co., Ltd. Has developed into the one of the Chinese professional providers destined for offering cost-effective products and value added trading service in the field of metallurgical engineering. We are looking forward to establishing a win-win situation between you and Camet.
We have been supplied to more than 40 steel factories from USA, Mexico, Brazil, Argentina, Thailand, India, UK, Italy, Russia, Turkey, Kenya, Kuwait, such as Mittal, V&M, US steel, Corus Euro, etc. We have achieved excellent reputation from our customers.
Camet Metallurgical Technologies Co., Ltd. Has already certificated under ISO9001: 2000 quality control system since 2006, at the same time, recorded in DUNS global credit standing system (DUNS No.: 52794-3626). We will do our best to build an effective bridge between you and China under the condition of global trade integration.
