| Prod Model: |
YH-1.5*4.5M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO:9001:2008, CE, SGS |
| Warranty: |
One Year |
| Installation: |
Engineer Guide and Train Workers |
| After Sale Service: |
for Whole Using Life |
| Shipment: |
by Sea or Land |
| Grinding Method: |
Dry Grind |
| Certification: |
CE |
| Precision: |
Normal Precision |
| Automation: |
Automatic |
| Type For Grinding Machine: |
Centrifugal Grinding Machine |
| Application: |
Marble |
Product Description

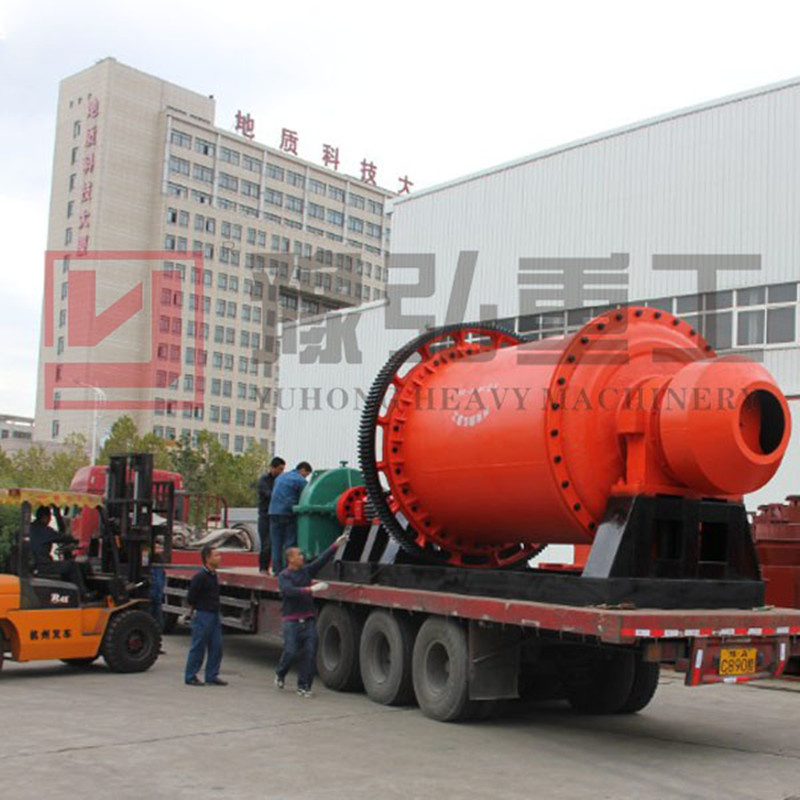

YUHONG Ball Mill
Ball Mill Application:
Ball mill is the key equipment for grinding after the crush process, and it is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics, it also can be used for the dry and wet grinding for all kinds of ores and other grind-able materials
Working environments:
The ball mill is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the
Material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball. After the secondary grinding, material is discharged from the discharging mouth. Then the whole grinding process is ended.
Structure of Ball mill:
The machine is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition.
| Model |
The
chamber
speed
(r/min) |
Ball
Load
(t) |
Feed
In
size
(mm) |
Feed
out
size
(mm) | Output
(t/h) |
Motor |
Weight
(kg) |
|
|
|
|
|
| Type | Power
( kw) |
|
| 900 × 1800 | 38 | 1.5 | ≤ 20 | 0.075-0.89 | 0.65-2 | Y2001L-6 | 18.5 | 3.6 |
| 900 × 3000 | 38 | 2.6 | ≤ 20 | 0.075-0.89 | 1.1-3.5 | Y200L2-6 | 22 | 4.6 |
| 1200 × 2400 | 35 | 3.5 | ≤ 25 | 0.075-0.6 | 1.5-4.8 | Y250M-6 | 37 | 11 |
| 1200 × 3000 | 35 | 5 | ≤ 25 | 0.075-0.4 | 1.6-5 | Y280M-6 | 45 | 13.8 |
| 1200 × 4500 | 35 | 75 | ≤ 25 | 0.075-0.4 | 1.6-5.8 | Y280M-6 | 55 | 14 |
| 1500 × 3000 | 27 | 8 | ≤ 25 | 0.075-0.4 | 2-5 | Y315M-8 | 75 | 15 |
| 1500 × 4500 | 27 | 12 | ≤ 25 | 0.075-0.4 | 3-6 | JR125-8 | 95 | 18 |
| 1500 × 5700 | 27 | 15 | ≤ 25 | 0.075-0.4 | 3.5-6 | JR127-8 | 130 | 21.7 |
| 1830 × 3000 | 24 | 12 | ≤ 25 | 0.075-0.4 | 4-10 | JR128-8 | 185 | 28 |
| 1830 × 6400 | 24 | 23 | ≤ 25 | 0.075-0.4 | 6.5-15 | JR138-8 | 210 | 34 |
| 1830 × 7000 | 24 | 25 | ≤ 25 | 0.075-0.4 | 7.5-17 | JR137-8 | 245 | 36 |
| 2100 × 6500 | 21 | 31 | ≤ 25 | 0.075-0.4 | 14-26 | JR1-144-8 | 355 | 52.8 |
| 2200 × 7000 | 21 | 37.6 | ≤ 25 | 0.075-0.4 | 15-28 | JR1-145-8 | 400 | 56 |
| 2400 × 7000 | 19.1 | 45 | ≤ 25 | 0.075-0.4 | 16-30 | JRL15-8 | 475 | 62.8 |
| 2700 × 7000 | 18 | 61.8 | ≤ 25 | 0.075-0.4 | 18-35 | JR1-154-8 | 710 | 73 |
Henan Yuhong heavy machinery Co., Ltd is a large-scale enterprise with an integration of research &development, manufacturing and sales. Main products are: Crushing series, industrial grinding, ore dressing equipments and cement equipments.
The company is located in Zhengzhou national high-tech development zone, founded in 1997, covers an area of 16.7 hectares. Annual sales volume reaches 30million. In 2003 the company passed ISO9001 international quality certification.
The company is Zhengzhou National Torch Plan and keeps intimate relationship with a number of domestic research institutes such as Zhengzhou University, Zhengzhou Mineral Research Institute, etc. Meanwhile we actively take in a large number of high-tech talents in management and scientific research, thus developing our research strength into domestic leading level.
The company has a modern office environment, purchased a great amount of whole site production equipments, checking equipments and professional examination equipments. The whole process adopts 5S management mode and will never allow a single team who has been adhering to the principle of "making customers believe". We adopts flexible service mode so that our customers can receive omnibearing and best-quality service.
Over the last 15 years, the company adhere to the spirit of "forging ahead in unity; Seeking truth and innovation". We work hard to achieve rapid development and expand our company into China's star enterprise in manufacturing industry. Now all Yuhong people are working hard with great unity, passion and confidence for achieving sales volume of 10 billion in 5 years and building Yuhong a renowned company with a 100 history!
All Yuhong people sincerely welcome talents of the world to come and visit our factory!
