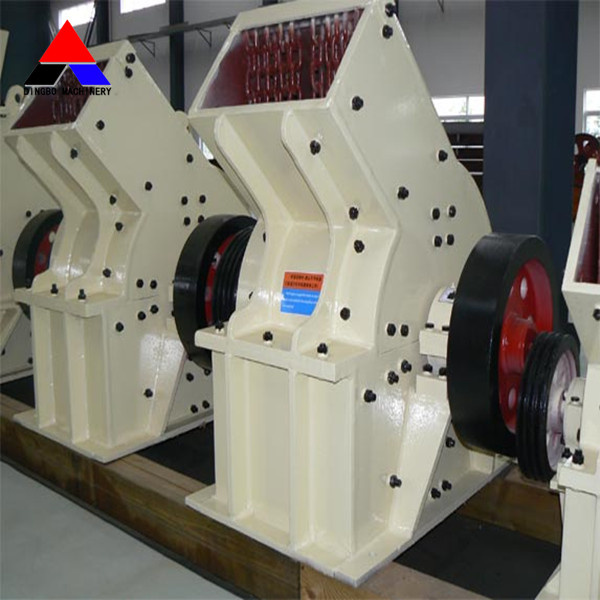

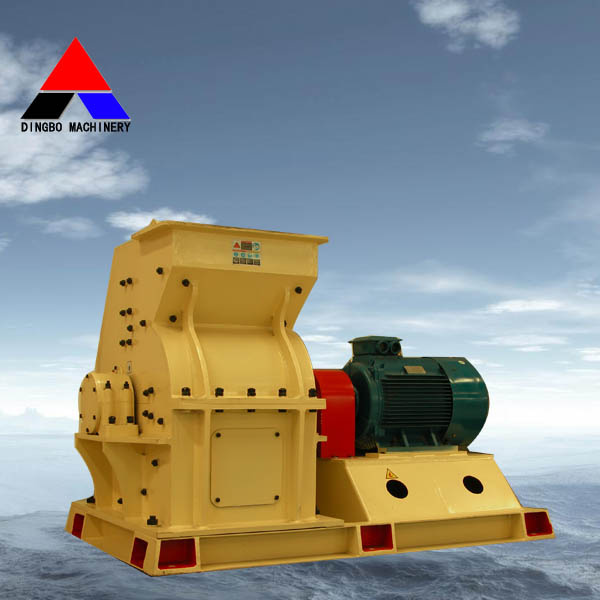

High Efficiency Stone Hammer Crusher
| Price: |
US $ 5000-43000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal |
| Prod Model: |
PC series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mining Object: |
Metallic and Non-Metallic Ore Excavator |
| Maintenance: |
Easy |
| Warranty: |
1 Year |
| Service: |
for Whole Using Life |
| Motor Type: |
AC Motor |
| Condition: |
New |
| Type: |
Crushing Equipment |
| Outlet Size: |
<35mm |
| Inlet Size: |
<200mm |
Product Description
Hammer crusher is suitable for MID-hard and light erosive materials, whose pressure resistance strength is no more than 100Mpa and humidity lower than 15%, such as coal, salt, chalk, gypsum, blocks, limestone, etc.
European hammer crusher widely used in metallurgy, mining, chemical, cement coal, dry stone, construction, sand, refractories and ceramic industrial and mining enterprises, engaged in breaking and crushing the material in the operation. It is mainly suitable for crushing compression strength not higher than 320MPa of various soft and hard ore.
Features&Advantages of The Hammer CrusherThe main advantage of the hammer crusher: simple and compact structure; high output; large crushing ratio, uniform particle size, less prwder, less power consumption of the unit product, etc.
Hammer crushers' features:
1 Hammerhead, adoption of new casting technology, has wear-resisting and impact resistance.
2 Adjusting the production granularity according to customers' requirements.
3 Adopting the seal body structure in order to solve the dust pollution and ash leakage problem of the workshop.
4 One of the upgrading products and the overall design is of attractive appearance, compact structure, less wearing parts, easy maintenance.
Working Principle of Hammer Crusher:
The European hammer crusher casing, rotor, bearing the hammer and the grate bars and other components. Upper and lower case in two parts, welded together by a steel plate after cutting, the remaining parts bolted into one. Set with high manganese steel liner inside the case, to facilitate replacement of worn; Its array of rules installed on the spindle distribution of the hammer, hammer and rotary table and through the rotor shaft formed. Host through the motor, V-belt driven spindle, so that the rotor rotates, hammer by the centrifugal force generated by rotation around the stretch to, bulk materials from the feed inlet into the crushing chamber, the high-speed movement of the hammer will be crushed. Broken by passing the material under.
Model
|
Feeding
size
(mm) |
Discharging
size (mm) |
Capacity
(m3/h) |
|
Power
(kw) |
Weight
(t) |
Overall Dimension
(mm) |
Motor pole
|
PCΦ400×300 |
≤200 |
≤25 |
5-10 |
4 |
11 |
0.8 |
900×670×860 |
PCΦ600×400 |
≤250 |
≤30 |
10-22 |
4 |
22 |
2.26 |
1200×1050×1200 |
PCΦ800×600 |
≤250 |
≤25 |
18-40 |
4 |
55 |
3.1 |
1310×1180×1310 |
PCΦ1000×800 |
≤350 |
≤35 |
25-50 |
4 |
75 |
5.9 |
1600×1390×1575 |
PCΦ1000×1000 |
≤300 |
≤35 |
30-55 |
6 |
132 |
8 |
1800×1590×1775 |
PCΦ1250×1250 |
≤350 |
≤35 |
35-65 |
6 |
180 |
14 |
2060×1600×1890 |
PCΦ1400×1400 |
≤350 | ≤35 |
50-100 |
6 |
280 |
32 |
2365×1870×2220 |
PCΦ1600×1600 |
350 | ≤35 |
100-150 |
8 |
480 |
37.5 |
3050×2850×2800
|
