| Prod Model: |
based on drawing |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Chrome Content: |
1-26% |
| Hardness: |
45-65 |
| Model Number: |
Hg-HCl |
| Process: |
Casting Alloyed |
| Size: |
Based on Drawing |
| Technical: |
Sand Casting |
| Certificate: |
ISO9001-2008 |
| Applied Filed: |
Ball Mill |
| Type: |
High ,Middle and Low Chrome |
| Other: |
OEM Available |
| Material: |
Chrome Alloyed Steel |
Product Description

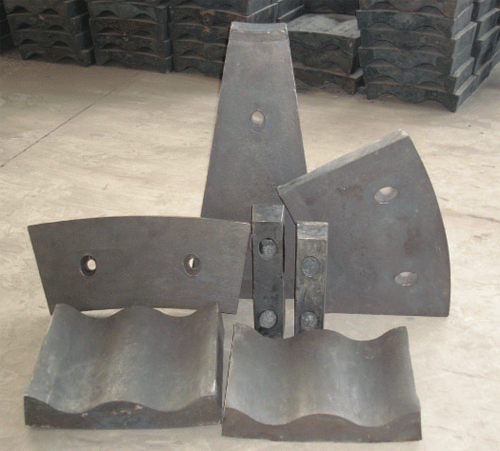

High manganese high impact value ball mill liner plate
Details for our workshop:
Xuzhou H&G wear-resisitant material Co., Ltd is a leading manufacturer in the grinding materials such as High manganese ball mill liner plate, grinding steel balls, grinding steel bars.
Details of High manganese ball mill liner plate:
Use the refining techniques of blowing argon at bottom of furnace to increase metallurgical quality;
Use diversified qualitative change to increase strength of grain boundary;
Use diversified inoculation to refined grain;
Use vacuum negative pressure vibration casting to refined grain, Thus could purification the liquid steel to increase synthesized mechanical properties more.
Why Choosing H&G High manganese ball mill liner plate:
1. Over 20 years Professional Wear resistant High manganese ball mill liner plate manufacturing experience, deserves your trust.
2. High quality, competitive price and good service benefit our customers. ISO9001 certified company, advanced oil quenching and heating production line, together with advanced testing machines imported from Germany are used to ensure the quality.
3. Skilled sales & service team in Shanghai branch can provide timely good service.
4.20, 000 Tons annual production capacity can provide short L/T.
|
Mechanical Data |
|
Name |
Hardness
(HRc) |
Impelling strength
(J/cm2) |
Grinding loss
(g/Ton) |
Broken(%) |
Working life
(month) |
|
|
|
|
|
|
High Manganese
Steel Liner |
HB≤240 |
80-140 |
-- |
-- |
Cement≥12 |
|
|
|
|
|
|
|
Chemical elements |
|
Name |
C |
Si |
Mn |
Cr |
Mo |
V |
Ti |
Ni |
Cu |
P |
S |
High Manganese
Steel Liner |
1.1-1.4 |
0.3-1.0 |
11-14 |
0-2.5 |
0-0.5 |
0-0.5 |
0-0.2 |
<0.5 |
0.2-1.0 |
≤0.05 |
≤0.05 |
Xuzhou H&G Wear-resistant Material Co., Ltd. was established in 1989, located in Xuzhou, Jiangsu Province. Through more than 20 years' striving, we have become one of the leading enterprises in the same industry. Our company is devoted to researching, developing, producing and selling grinding balls, grinding cylpebs, and ball mill liner plates, which are widely used in cement, mining and chemical industries, and power plants, etc...Our manufacturing base covers 30 mu, with the standard workshop area of 12, 000 sqm. Three advanced casting manufacturing lines, and sophisticated testing equipment guarantee a stable and resistant product quality. Our annual productivity is 20, 000 tons.
Company History
In 1989, Liubang Casting Factory, as a individual, was established. We mainly used coke smelting reduction technics, and the products were casting grinding balls and bars.
In 1996, Peixian County Tongda Casting Co., Ltd. was established. We became a general taxpayer. One medium frequency furnace production line was introduced into our production, together with the annealing process technics.
In 2002, our factory was moved to Liubang Industrial Park, Peixian County, Jiangsu Province. The overall property had a qualitative improvement
In 2008, renamed as Xuzhou H&G Wear Resistant Co., Ltd...12, 000 square meters standard workshop, 3 medium frequency furnace production lines, 2 furnace annealing equipment, and 2 oil-immersed heat treatment equipment were put into production. Also, better technology and equipment was used for IQC and OQC.
In 2012, D-win Metal Material (Shanghai) Co., Ltd. was established in Shanghai, a wholly owned sales subsidiary, intending to develop international business.
In 2013, 800 square meters office building was put into use in our factory, making great progress in both work environment and employees.
