| Prod Model: |
based on drawing |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Chrome Content: |
1-26% |
| Hardness: |
45-65 |
| Model Number: |
Hg-HCl |
| Process: |
Casting Alloyed |
| Size: |
Based on Drawing |
| Technical: |
Sand Casting |
| Certificate: |
ISO9001-2008 |
| Applied Filed: |
Ball Mill |
| Type: |
High ,Middle and Low Chrome |
| Other: |
OEM Available |
| Material: |
Chrome Alloyed Steel |
Product Description

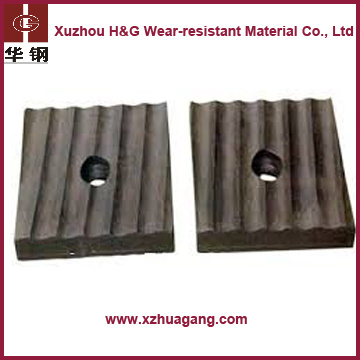

Wear resistant cast alloyed ball mill liner plate
Details for our workshop:
Xuzhou H&G wear-resisitant material Co., Ltd is a leading manufacturer in the grinding materials such as cast alloyed ball mill liner plate, grinding steel balls, grinding steel bars.
Details of Wear resistant cast alloyed ball mill liner plate:
1. Alloy: 1%Cr, 3%Cr, 10%Cr, 26%Cr available.
2. High hardness and impact value
3. Wear resistance and longer life span
4. Factory Supply, competitive price
4. Our factory can produce casting materials based on customer's drawing and contents requirements
5. The series are designed for high abrasion performance Indusry mills, the anti-wear property is 2 times as much as that of high manganese steel.
6. Meanwhile, we also provide customised materials to our customers.
7. Packaging detail: Export standard or according to client's requirements.
Why Choosing H&G Wear resistant cast alloyed ball mill liner plate:
1. Over 20 years Professional Wear resistant cast alloyed ball mill liner plate manufacturing experience, deserves your trust.
2. High quality, competitive price and good service benefit our customers. ISO9001 certified company, advanced oil quenching and heating production line, together with advanced testing machines imported from Germany are used to ensure the quality.
3. Skilled sales & service team in Shanghai branch can provide timely good service.
4.20, 000 Tons annual production capacity can provide short L/T.
|
Name |
Chemical Elements (%) |
|
C |
Si |
Mn |
Cr |
Mo |
Cu |
P |
S |
|
High Chrome Liner |
2.0-3.6 |
0-1.5 |
≤2.0 |
8-26 |
≤3.0 |
≤1.2 |
≤0.06 |
≤0.06 |
Physical Property & Microstructure
|
Name |
HRC |
Ak(J/cm 2 ) |
Microstructure |
|
High Chrome Liner |
≥58 |
≥15 |
M+C+P |
|
M-Martensite C- Carbide P- Pearlite |
Chemical Elements
|
Name |
Chemical Elements (%) |
|
C |
Si |
Mn |
Cr |
Mo |
Cu |
P |
S |
|
Medium Chrome Liner |
2.0-3.3 |
0-1.2 |
≤2.0 |
4-6 |
≤3.0 |
≤1.2 |
≤0.06 |
≤0.06 |
Physical Property & Microstructure
|
Name |
HRC |
Ak(J/cm 2 ) |
Microstructure |
|
Medium Chrome Liner |
≥48 |
≥10 |
M+C |
|
M-Martensite C- Carbide |
Chemical Elements
|
Name |
Chemical Elements (%) |
|
C |
Si |
Mn |
Cr |
Mo |
Cu |
P |
S |
|
Low Chrome Liner |
2.1-3.6 |
0-1.5 |
≤2.0 |
1-3 |
0-1 |
≤1.2 |
≤0.1 |
≤0.1 |
Physical Property & Microstructure
|
Name |
HRC |
Ak(J/cm 2 ) |
Microstructure |
|
Low Chrome Liner |
≥45 |
≥7 |
M+C |
|
M-Martensite C- Carbide |
Xuzhou H&G Wear-resistant Material Co., Ltd. was established in 1989, located in Xuzhou, Jiangsu Province. Through more than 20 years' striving, we have become one of the leading enterprises in the same industry. Our company is devoted to researching, developing, producing and selling grinding balls, grinding cylpebs, and ball mill liner plates, which are widely used in cement, mining and chemical industries, and power plants, etc...Our manufacturing base covers 30 mu, with the standard workshop area of 12, 000 sqm. Three advanced casting manufacturing lines, and sophisticated testing equipment guarantee a stable and resistant product quality. Our annual productivity is 20, 000 tons.
Company History
In 1989, Liubang Casting Factory, as a individual, was established. We mainly used coke smelting reduction technics, and the products were casting grinding balls and bars.
In 1996, Peixian County Tongda Casting Co., Ltd. was established. We became a general taxpayer. One medium frequency furnace production line was introduced into our production, together with the annealing process technics.
In 2002, our factory was moved to Liubang Industrial Park, Peixian County, Jiangsu Province. The overall property had a qualitative improvement
In 2008, renamed as Xuzhou H&G Wear Resistant Co., Ltd...12, 000 square meters standard workshop, 3 medium frequency furnace production lines, 2 furnace annealing equipment, and 2 oil-immersed heat treatment equipment were put into production. Also, better technology and equipment was used for IQC and OQC.
In 2012, D-win Metal Material (Shanghai) Co., Ltd. was established in Shanghai, a wholly owned sales subsidiary, intending to develop international business.
In 2013, 800 square meters office building was put into use in our factory, making great progress in both work environment and employees.
