Ball Mill Used Max Feeding:
20mm
Capacity:
0.65-2m3/H
Ball Mill Used Ball Load:
1.5t
Discharge:
0.075mm
Ball Mill Used Spare Parts:
All Using Life
Weight:
3.6t
Ball Mill Used Warranty:
1 Year
After Sale:
48 Hours After Receive Report
Ball Mill Used Crushing Materials:
Stone, Mine, Others
Installation:
Guide by Engineer
Type:
Ball Mill
Motor Type:
AC Motor
Condition:
New
Product Description

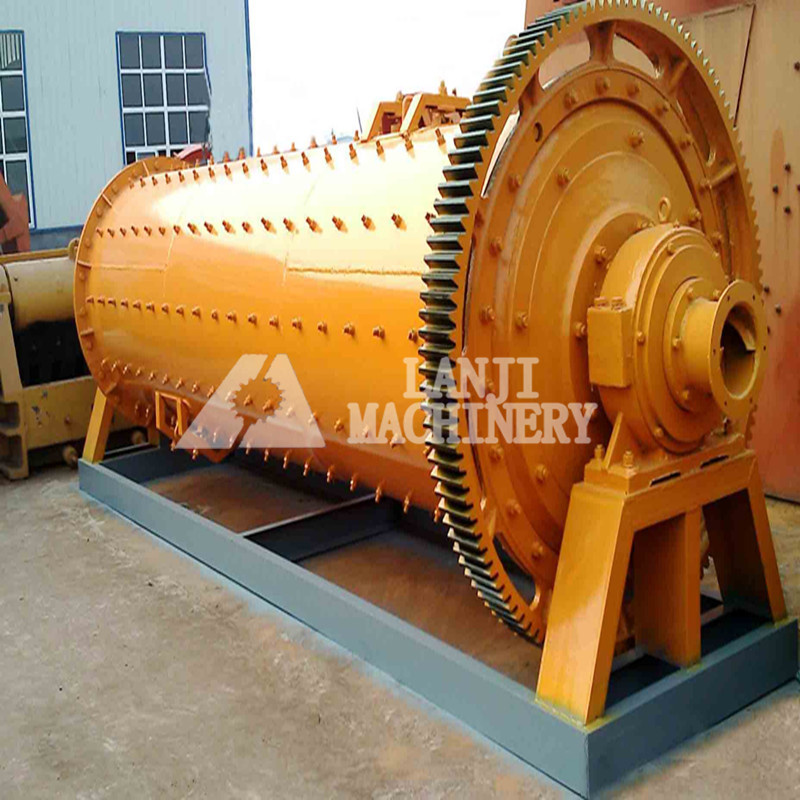

Ball Mill Used are generally used to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns. To achieve a reasonable efficiency with ball mills, they must be operated in a closed system, with oversize material continuously being recirculated back into the mill to be reduced. Various classifiers, such as screens, spiral classifiers, cyclones and air classifiers are used for classifying the discharge from ball mills. Ball Mill Used is an efficient tool for grinding many materials into fine powder. The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry process and the wet process. Ball Mill Used can be divided into tabular type and flowing type according to different forms of discharging material.
Ball Mill Used Structure: Ball Mill Used consists of feeding and discharging turning, transmission parts (reducer, gear motor, motor, electronic control), etc. Hollow shaft adopts steel castings and inner liner can be replaced, gyrating big gear adopts casting roll teeth processing, Ball Mill Used the cylinder body is lined with wear-resisting lining plate, Ball Mill Used has good abrasion resistance, smooth operation and working reliable.
Working Principle of Ball Mill Used Ball Mill Used is a skeleton pattern ball mill with horizontal cylindrical turning gear, driven by outer gear and two hoppers. The material goes to the first hopper after the spiraling by the quill shaft from the feeding equipment. The hopper has ladder sheathing or corrugated sheathing with steel balls inside, which will fall under the effect of centrifugal force by barrel and grind material. After the Ball Mill Used kibbling in the first hopper, by monolayer partition panel, the material will enter the second hopper, which has plane scale board with steel ball inside to grind material. The powder material will Ball Mill Used be discharged from the grid plate to finish the grinding.
Type
Barrel body diameter (mm)
Barrel length (mm)
Cylinder speed (r/min)
Pack ball quantity (t)
Feed size (mm)
Processing capacity (T)
Machine weight (kg)
900×1800
900
1800
37
1.8
≤15
0.5-2
3400
1200×2400
1200/900
2000/400
35
3.52
≤25
1.3-3.2
8650
1200×4500
1200/900
4100/400
35
5.2
≤25
2.7-6.79
14000
1500×3000
1500
3000
29
6.8
≤25
3.3-8.2
14122
1500×5700
1500
5700
29
15
≤25
2.6-14
25000
1830×3000
1830
3000
24
13
≤25
4-15
28000
2100×3600
2100/1800
3000/600
22
22.9
≤25
7.6-28
43454
2200×3600
2200
3600
19
25
≤25
5.2-32
44000
2400×3600
2400
3600
17
32
≤25
8-38
47000
