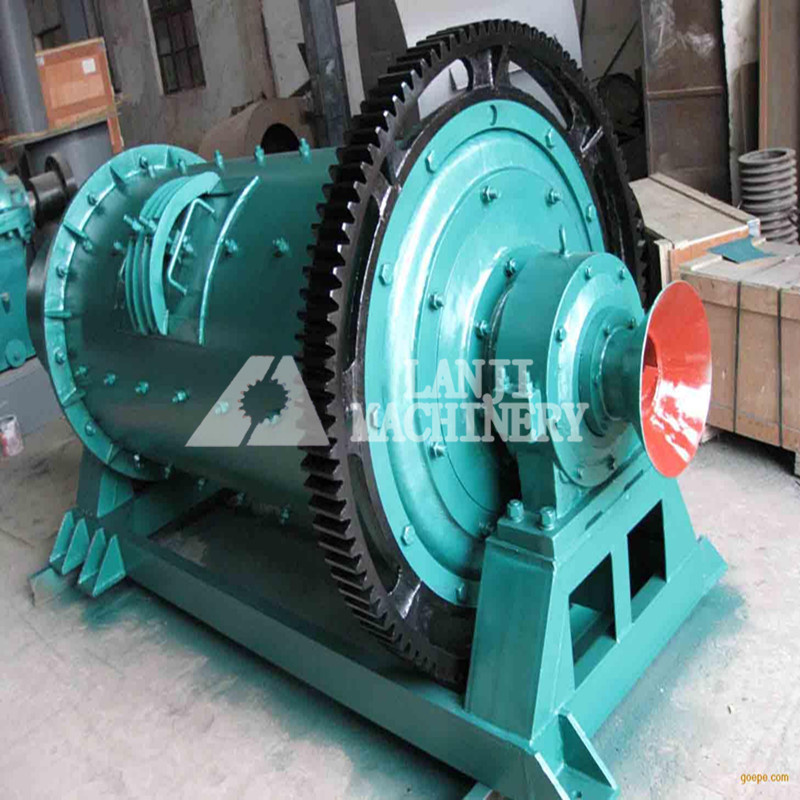

Prefect Performance Ball Mill Machine Good Price

Prefect Performance Ball Mill Machine Good Price
Price: US $ 5240/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: 900-3200
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ball Mill Machine Max Feeding: 20mm
Capacity: 0.65-2m3/H
Ball Mill Machine Ball Load: 1.5t
Discharge: 0.075mm
Ball Mill Machine Spare Parts: All Using Life
Weight: 3.6t
Ball Mill Machine Warranty: 1 Year
After Sale: 48 Hours After Receive Report
Ball Mill Machine Crushing Materials: Stone, Mine, Others
Installation: Guide by Engineer
Type: Ball Mill
Motor Type: AC Motor
Condition: New

Product Description

Ball Mill Machine introduction:
Ball Mill Machine  is the most commonly used grinding equipment, it is widely used in cement,silicate products, new building materials, refractory, fertilizer, non-ferrous metal, glass ceramic and other industries. It mainly grinds various ores and other grind-able materials,the type of the grinding include dry grinding and wet grinding. Ball mill is mainly composed by the components of cylinder, driving big gear ring,end cap,bearing and so on.

Working Principle of Ball Mill Machine
According to the discharging type, Ball Mill Machine  could be divided into three types, overflow type Ball Mill Machine  open-type Ball Mill Machine  and peripheral type Ball Mill Machine. Overflow type ball mill is the most common one. As the first class open grinding equipment, Ball Mill Machine  is widely used for first class grinding equipment of concentrator, artificial sand stone and electricity sector of chemical plants. The Ball Mill Machine  rotation is based on deceleration motor and large gear deceleration rotation or large gear deceleration rotation which is driven by low speed synchronous motor, and then drives Ball Mill Machine  cylinder rotating. Steel bar, the grinding media is installed in cylinder; media is promoted to a certain height because of the joint action of friction and centrifugal force, and is dropping or falling off. The grinding materials are continuously feeding into the cylinder through inlet of Ball Mill Machine, crushed by steel bar and discharge the finished products out of Ball Mill Machine  by overflow and continuous feeding strength then go to the next process.

Structural characteristics of Ball Mill Machine:
Ball Mill Machine  is composed by feeding part, discharging part, turning part and driving part(reducer, small driving gear, electric motor and electric control).The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbling process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition. Moreover, according to different materials and discharging methods, there are dry ball mills and wet Ball Mill Machine  for choice.


Parameters

Type

Rotation Speed Of Cylinder
(r/min)

Loading of Ball
(t)

Feeding Size
(mm)

Output Size
(mm)

Capacity
(t/h)

Motor Power
(kw)

Weight
(t)

Φ900×1800

38

1.5

≤20

0.075-0.89

0.65-2

18.5

3.6

Φ900×3000

38

2.7

≤20

0.075-0.89

1.1-3.5

22

4.6

Φ1200×2400

32

3.8

≤25

0.075-0.6

1.5-4.8

45

12.5

Φ1200×3000

32

5

≤25

0.075-0.4

1.6-5

45

12.8

Φ1200×4500

32

7

≤25

0.075-0.4

1.6-5.8

55

13.8

Φ1500×3000

27

8

≤25

0.075-0.4

2-5

90

17

Φ1500×4500

27

14

≤25

0.075-0.4

3-6

110

21

Φ1500×5700

27

15

≤25

0.075-0.4

3.5-6

132

24.7

Φ1830×3000

24

11

≤25

0.075-0.4

4-10

180

28

Φ1830×6400

24

23

≤25

0.075-0.4

6.5-15

210

34

Φ1830×7000

24

25

≤25

0.075-0.4

7.5-17

245

36

Φ2200×5500

21

30

≤25

0.075-0.4

10-22

370

48.5

Φ2200×6500

21

30

≤25

0.075-0.4

14-26

380

52.8

Φ2200×7500

21

33

≤25

0.075-0.4

16-29

475

56


Henan LanJi Machinery Manufacturing Co., Ltd. is a jiont-stock mining machinery manufacturing enterprises integrated in scientific research, production and marketing. It is located at the Hig-Tech development Zone Zhengzhou, China with an area of 80 thousand square meters. Equipments are more than 200 pieces, including large and medium sized metal processing, riveting and installing equipments. Engineers are more than 50 persons.

The leading products of our company include: Beneficiation equipment, crushing equipment, sand making equipment, cement equipment, Aerated concrete block production line. Widely used in the industries of metallurgy, mining, railway, high-way, building materials, refactory, ceramic industry, etc. Complete set of ore beneficiation equipment include ball mill, crusher, magnetic separator, flotation machine, spiral classifier, rotary dryer, widely used to separate the non-ferrous metals such as iron ore, copper ore, gold ore, lead&zinc, manganese ore, molybdenum ore, etc. And the Non-metallic Minerals like fluorite, quartz, etc. Jaw crusher, impact crusher, sand making machine, vibrating screen, sand washing machine, belt conveyor are widely used for the airport, railway, high-way, road, buliding, etc. Aerated concrete block has been one important part to the new buliding materials. We can provide program design, process flow design, standard and non-standard design for clients.

Our company has passed ISO9001-2008 quality certificate, the produce sell well to domestic and abroad, Such as South Asia, Russia, Central Asia, Africa, Middle-east, etc.

Our company's tenetis "Advanced technology, quality first, sincere service, reputation first". We can ensure our clients without worry after buying by one set of complete after-sales service and quality-tracking system.

We sincerely hope to cooperate with the clients from all over the world to achieving mutual benefits and promotion, ans touching our theory through cooperation!
