| Prod Model: |
ZP-D1004 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outer Diameter: |
70mm |
| Inner Diameter: |
60mm |
| Process: |
Die Casting |
| Colour: |
Silver, Black, Other Customized |
| Packaging: |
Cartons |
| Function: |
LED Light Heat Emission |
| Temper: |
T5-T8 |
| Export Port: |
FOB Guangzhou |
| Surface Treatment: |
Anodizing, Polishing, etc |
| Lead Time: |
10 to 20 Days |
| Material: |
Aluminum Alloy |
| Surface Preparation: |
Oxygenation |
Product Description

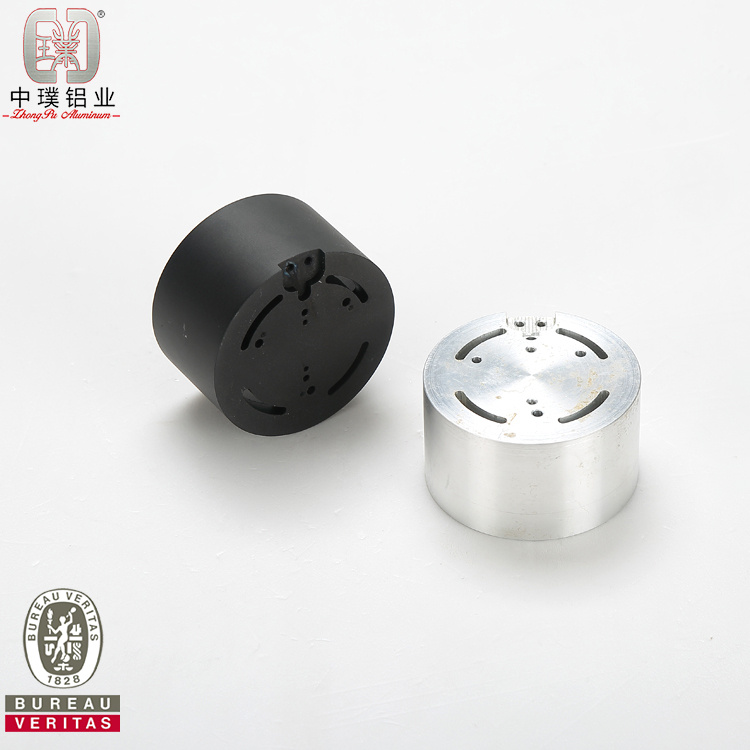

Aluminum Heat Sink
Type: Heat Sinks
Surface Treatment: Anodizing, Mill finish, Electrophoresis, etc
Process: CNC machining
Craft: ODM,OEM
Shape: Round
Material: Aluminum alloy
Grade: 6061,6063
Color: Silver, Black, other Customized
Temper: T3-T8
Certificate: ISO9001
Function: Heat emission
Material: 6063-T5
Application: High power LED aluminum extrusion heat sink
Profile Shape: According to drawings or re-design as requested
Packaging & Delivery
Packaging Detail: Cartons
Delivery Detail: 15-30 days, based on your order quantity
Export Port: FOB Guangzhou
We can provide one-stop service, smelting, extruding, machining, surface treatment
Effective Communication:
After confirming drawings or samples with our customer, we will provide quality quotation within 24 hours
1.Specification
| Material | 6063,6060,6061,6005 |
| Temper | T4,T5,T6 |
| Surface treatment | Mill Finish,Anodized,Eletropharesis,Powder Coated, Wooden Finish, Polish |
| Colour | Silver,Black,Red,Blue,White,and many other colors can be available |
| Length | as required |
| Shape | Flat,Round,Square,T-slot,or as per the drawings and samples |
| Fabrication | cutting,drilling,punching,millling,etc |
| Wall thickness | above 0.8mm |
| Package | inner plastic paper interleaving each profile,outer fixed by plywood or pallets, or as per your requirements |
| Payment terms | TT or LC at sight |
| Delivery time | 10-12 days after order confirmation |
| Certification | ISO 9001:2008;ISO14001:2004;SGS |
| Application | Construction,Building,Projects |
| Capacity | 3000 tons per month |
2.Primary Technical Data
1)Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.70 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.4-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2)Mechanical property
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
| 6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% |
3)Anodized
| Grade | Anodizing thickness | Hole scaling quality of oxide layer |
| Average thickness | Local thickness | P. Cr acid-erosion weight less method |
| AA10 | ≥10um | ≥8um | ≤30 mg/d m2 |
| AA15 | ≥15um | ≥12um |
4)Powder coating & wooden-grained
| Coating thickness | Coating impress rigidity | Adhesive force of coating layer |
| 40-120um | Indentation hardness>80 | 0 grade |
3.Our advantages
1)Engineering design and support.
2)Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 25 years.
