| Prod Model: |
DC-ZP08 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Raw Material: |
Aluminum, Alloy, Zinc |
| Usage: |
Electronic Accessories |
| Size: |
Customized |
| Temper: |
T3-T8 |
| Package: |
Wooden Crate |
| Surface Finishing: |
Anodic Oxidation |
| Function: |
LED Flood Light |
| Color: |
Silver, Black, etc |
| Export Port: |
FOB Guangzhou |
| Process: |
Precision Die Casting |
| Material: |
Aluminum Alloy |
| Surface Preparation: |
Oxygenation |
Product Description

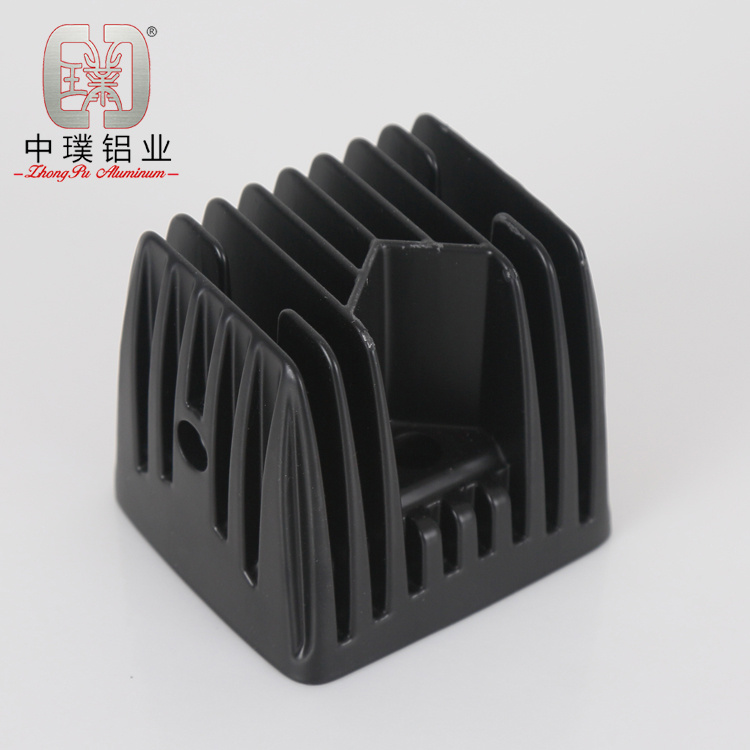

Die Casting LED Tunnel Light Shell
Place of origin: Guangdong China(Mainland)
Material: Aluminum, die casting 6063 aluminum alloy
Color: Silver, black,etc
Name: Led tunnel light lamp shell
Packaging & Delivery
Packaging Detail: According to customer's requirement
Delivery Detail:
10-15 days for the first order,
7-10 days for the repeated orders
Application: LED flood light
MOQ: 500 sets
Payment Terms: T/T, 30% down payment while balance shall be paid off before delivery.
Port: FOB Guangzhou
Please send us drawings or samples, we'll create infinite satisfaction for you!
1.Specification
| Material | 6063,6060,6061,6005 |
| Temper | T4,T5,T6 |
| Surface treatment | Mill Finish,Anodized,Eletropharesis,Powder Coated, Wooden Finish, Polish |
| Colour | Silver,Black,Red,Blue,White,and many other colors can be available |
| Length | as required |
| Shape | Flat,Round,Square,T-slot,or as per the drawings and samples |
| Fabrication | cutting,drilling,punching,millling,etc |
| Wall thickness | above 0.8mm |
| Package | inner plastic paper interleaving each profile,outer fixed by plywood or pallets, or as per your requirements |
| Payment terms | TT or LC at sight |
| Delivery time | 10-12 days after order confirmation |
| Certification | ISO 9001:2008;ISO14001:2004;SGS |
| Application | Construction,Building,Projects |
| Capacity | 3000 tons per month |
2.Primary Technical Data
1)Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.70 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.4-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2)Mechanical property
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
| 6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% |
3)Anodized
| Grade | Anodizing thickness | Hole scaling quality of oxide layer |
| Average thickness | Local thickness | P. Cr acid-erosion weight less method |
| AA10 | ≥10um | ≥8um | ≤30 mg/d m2 |
| AA15 | ≥15um | ≥12um |
4)Powder coating & wooden-grained
| Coating thickness | Coating impress rigidity | Adhesive force of coating layer |
| 40-120um | Indentation hardness>80 | 0 grade |
3.Our advantages
1)Engineering design and support.
2)Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 25 years.
Foshan Zhongpu Aluminum Co., Ltd, founded in 2005, is located in Nanhai District, Foshan City, Guangdong Province, China. It is a large comprehensive profile enterprise that integrates with research, development, manufacture and sales of aluminum heat sinks. As a dedicated Chinese manufacturer, we can provide a wide variety of custom aluminum extrusion doors and windows. Our full catalog includes products such as the standard aluminum extrusion profile, heat sink aluminum extrusion profile, customized CNC machined parts, aluminum unitized curtain wall, facade system aluminum frame, and much more.
With abundant comprehensive strength and high quality service, our products have been well sold all over the country and exported to many countries and regions including Italy, England, Germany, Burma, Thailand, Brazil, Argentina, Canada, America and Mexico. At present, the company has a complete set of facilities including 12 sets of 600-ton, 800-ton, 1000-ton and 2500-ton extrusion machines, advanced vertical electrophoresis lines, horizontal electrophoresis lines, 3 sets of coating lines and 2 sets of oxidization lines. Our templates, swatches, and catalog are all delivered via trusted shipping companies such as DHL and TNT. We utilize an integrated logistics system that incorporates the services of 3 international piers in major cities including Guangzhou, Shenzhen, and Hong Kong. This allows us to work around the busy schedules of our clientele to provide timely and flexible deliveries.
After many years of development, the company has passed ISO9001: 2000 quality management system certification, and certificate of international standard. The company sticks to the scientific development perspectives, and keep improving the energy conservation and emission reduction of the enterprises by intensifying comprehensive management and enhancing innovation to accelerate in becoming an eco-friendly modern enterprise.
The company insists on the operation tenet of "unity and enterprising, exploring and innovation" to fully cooperate with customers, explore the career and create a future together.
