| Prod Model: |
CFA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Specification: |
Diameter=30~500mm H=5~20mm |
| Ppi: |
10ppi, 20ppi, 30ppi, 40ppi, 50ppi, 60ppi |
| Thickness: |
12-25mm |
| Application: |
Non-Ferrous, Aluminum and Its Alloys Casting |
| Feature: |
Long Time Materials |
| Type: |
Refractory Material |
| Shape: |
Rectangle, Round, Square |
| Refractoriness (',℃): |
1200 Celsius Degree |
| Material: |
Alumina |
Product Description

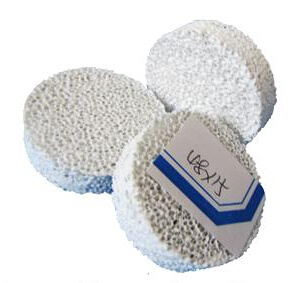

Alumina ceramic foam filter is mainly used for filtration of aluminum and aluminum alloys in foundries and cast houses. It is widely applied to the aluminum fusant filtration equipment of continuous casting, half continuous casting, gravity casting and low pressure casting. It can effectively remove inclusions, reduce trapped gas and provide laminar flow when molten aluminum filtrated.
Using scope of alumina ceramic foam filter:
Alumina ceramic foam filter is widely applied to the aluminum fusant filtration equipment of continuous casting, half continuous casting, gravity casting and low pressure casting.
Specification of alumina ceramic foam filter:
We can produce round, square and other geometric shapes of alumina ceramic foam filter. Sizes from 10mm to 600 mm, thickness from 10 mm to 50 mm, bore density from 10PPI-60PPI.
Alumina ceramic foam filter is equipped with a gasket on the edges. The gasket assures the proper and tight position of the filter within the filter box. Also you can choose alumina ceramic foam filter without gasket. We can produce according to customer requirements of different shapes, sizes and bore density.
|
Type |
Alumina CFF |
|
Material |
Al2O3 |
|
Applied temperature |
≤1200 Degree C |
|
Color |
White |
|
Bulk Density |
0.35~0.55 g/cm3 |
|
Bore Density |
10~60PPI |
|
Porosity |
80~90% |
|
Bending Strength |
0.6Mpa |
|
Compression Strength |
≥0.8Mpa |
Thermal Shock Resistance
(1100Degree C ~ Room Temperature) |
Not break after 6 times thermal shock testing |
|
Application |
non-ferrous,
aluminum and aluminum alloys
high temperature gas filter,
chemical fillings and catalysis carrier etc. |
|
Type |
Alumina CFF |
|
Material |
Al2O3 |
|
Applied temperature |
≤1200 Degree C |
|
Color |
White |
|
Bulk Density |
0.35~0.55 g/cm3 |
|
Bore Density |
10~60PPI |
|
Porosity |
80~90% |
|
Bending Strength |
0.6Mpa |
|
Compression Strength |
≥0.8Mpa |
Thermal Shock Resistance
(1100Degree C ~ Room Temperature) |
Not break after 6 times thermal shock testing |
|
Application |
non-ferrous,
aluminum and aluminum alloys
high temperature gas filter,
chemical fillings and catalysis carrier etc. |
|
Specification (inch) |
Size (mm) |
|
Length×Width×Thickness |
Diameter×Thickness |
Length×Width×Thickness |
Diameter×Thickness |
|
3″×3″×0.87″/1″/1.2″/1.5″ |
Φ3″×0.87″/1″/1.2″/1.5″ |
76×76×22/25/30/38 |
Φ76×22/25/30/38 |
|
4″×4 ″×0.87″/1″/1.2″/1.5″ |
Φ4″×0.87″/1″/1.2″/1.5″ |
100×100×22/25/30/38 |
Φ100×22/25/30/38 |
|
5″×5″×1″/1.2″/1.5″ |
Φ5″×1″/1.2″/1.5″ |
127×127×25/30/38 |
Φ127×25/30/38 |
|
6″×6″×1.2″/1.5″/2″ |
Φ6″×1.2″/1.5″/2″ |
152×152×30/38/50 |
Φ152×30/38/50 |
|
7″×7″×1.5″/2″ |
Φ7″×1.5″/2″ |
178×178×38/50 |
Φ178×38/50 |
|
8″×8″×2″ |
Φ8″×2″ |
203×203×50 |
Φ203×50 |
|
9″×9″×2″ |
Φ9″×2″ |
229×229×50 |
Φ229×50 |
|
12″×12″×2″ |
Φ12″×2″ |
305×305×50 |
Φ305×50 |
|
15″×15″×2″ |
Φ15″×2″ |
381×381×50 |
Φ381×50 |
|
17″×17″×2″ |
Φ17″×2″ |
432×432×50 |
Φ432×50 |
|
20″×20″×2″ |
Φ20″×2″ |
508×508×50 |
Φ508×50 |
|
23″×23″×2″ |
Φ23″×2″ |
584×584×50 |
Φ584×50 |
