| Prod Model: |
R-25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

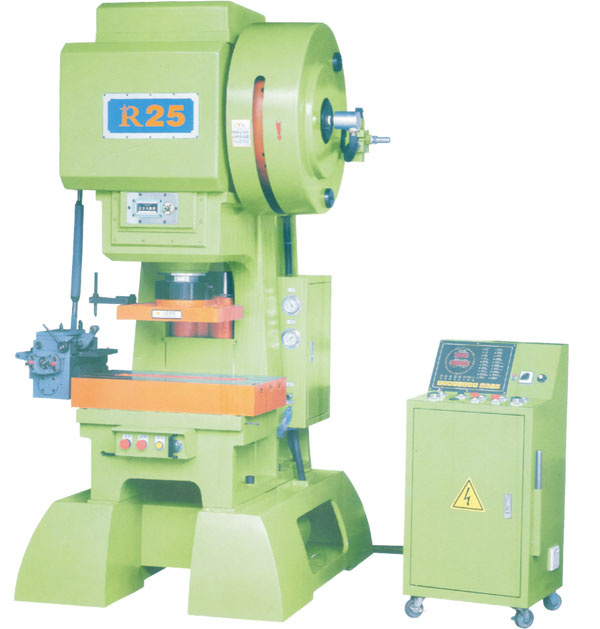

R-25 High Speed Precision Automatic Press Machine
1. The body is made up of high intensity cast iron. After eliminating stress, the stability is good and the accuracy will be kept for long time. Its suitable for continuous production
2. It adopts 2 guide column and 1 center column structure. Roller bearing replaced traditional slide plate structure, which makes friction reduction. With automatic forceful lubricant system, minimum hot distortion and max. Precision is available.
3. If equipped with a side balance device to reduce shake, it will have best precision and stability.
4. Manual adjust the mould. With the die-height display and oil pressure lock device, mould adjustment operation is easy and convenient.
5. The man-machine interface adopts micro- computer control, the value and trouble monitor system display makes the operation easy and convenient.
| Model | R-25 |
| Capacity | 25 Ton |
| Stroke of Slide | 15mm | 20mm | 25mm | 30mm |
| S.P.M | 200-1000 | 200-1900 | 200-800 | |
| Die-Height | 188-218mm | 185-215mm | 183-213mm | |
| Bolster area | 600x300x80mm |
| Slide area | 300x220mm |
| Slide Adjustment | 30mm |
| Bed opening | 100x300(400)mm |
| Motor | 5HP |
| Gross Weight | 2806kgs |
| Lubrication | Forceful automation |
| Speed control | Inverter |
| Clutch & Brake | Air & Friction |
| Auto top stop | Standard |
| Vibration system | Mounting or pneumatic mounting |
HAIWEI machine manufacturing Co., Ltd is a professional manufacturer that integrates design, manufacturing, sales, service and trade. It was original established in 1998 and locates in famous manufacturing city -- Dong Guan City. We introduces Taiwan advanced technology, provides all kinds of customized design and manufacturing punching machine and the peripheral equipment of automatic punching machine.
As a lead manufacturing of press machine & peripheral equipment of automatically press machine, we produce sliting line, cut to length line, press machine and peripheral equipment of automatic punching machine, such as high speed automatic feeder, leveler, straightener, cradle and 3 in 1 or 2 in 1 of feeder, leveler and uncoiler etc.
In order to service better to our clients, we established KAI HUA in 2009 and integrated original company JIE DA as a group company. The whole group company dedicated ourselves to reducing operation cost, increasing productivity and searching for high technology on products and production.
We strictly obey the total quality management system on product design, raw materials purchasing, manufacturing, package and shipment to ensure that we can provide high quality products to our clients.
We pursue mutual benefit and sincerely hope to establish and develop business relationship with friends of all over the world.
