| Prod Model: |
R-45 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

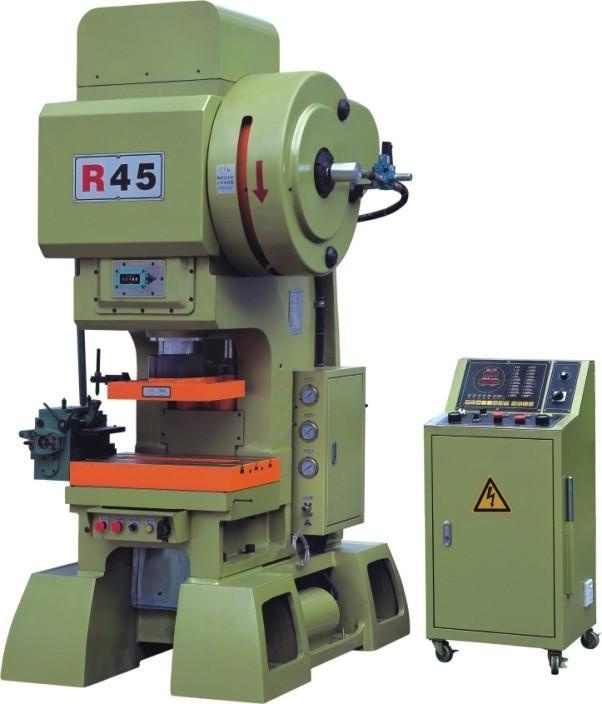

R-45 High Speed Precision Automatic Press Machine
1. The body is made up of high intensity cast iron. After eliminating stress, the stability is good and the accuracy will be kept for long time. Its suitable for continuous production
2. It adopts 2 guide column and 1 center column structure. Roller bearing replaced traditional slide plate structure, which makes friction reduction. With automatic forceful lubricant system, minimum hot distortion and max. Precision is available.
3. If equipped with a side balance device to reduce shake, it will have best precision and stability.
4. Manual adjust the mould. With the die-height display and oil pressure lock device, mould adjustment operation is easy and convenient.
5. The man-machine interface adopts micro- computer control, the value and trouble monitor system display makes the operation easy and convenient.
| Model | R-45 |
| Capacity | 45 Ton |
| Stroke of Slide | 25mm | 30mm | 35mm | 40mm |
| S.P.M | 200-800 | 200-700 | 200-600 | 200-500 |
| Die-Height | 213-243mm | 210-240mm | 208-238mm | |
| Bolster area | 680x420x90mm |
| Slide area | 420x320mm |
| Slide Adjustment | 30mm |
| Bed opening | 100x400(500)mm |
| Motor | 7.5HP |
| Gross Weight | 4680kgs |
| Lubrication | Forceful automation |
| Speed control | Inverter |
| Clutch & Brake | Air & Friction |
| Auto top stop | Standard |
| Vibration system | Mounting or pneumatic mounting |
