North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Process Precision:
Within1.00mm
Forging Forming Method:
Roll Forming Machine
Product Description

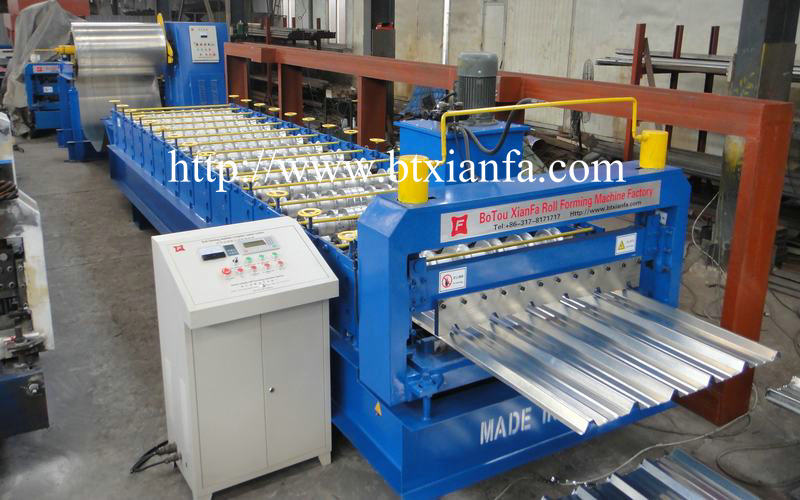

High wave color steel roofing sheet rolling mill
Application This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on. High wave color steel roofing sheet rolling mill Rolling Material: high grade 45# steel(plated chrome on surface) Equipment Components: Man-Made Uncoiler-Roll Forming Machine-Computer Control System-Hydraulic Control System- Press Form-Cutting

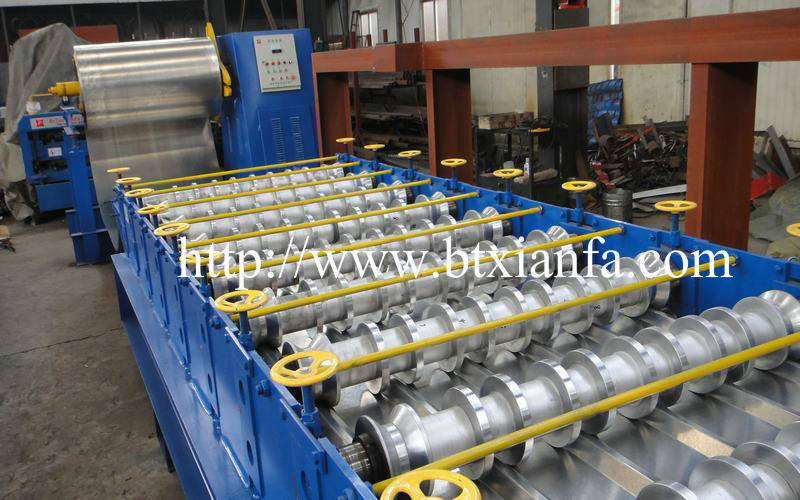

High wave color steel roofing sheet rolling mill
We have a professional design team Can also design and manufacture according to customer's requirement.
Competitive Advantage
1. CE certification 2 .ISO certification 3. working life 20 years 4. high quality steel 5. High efficiency
No.
main parameter of High wave color steel roofing sheet rolling mill
1
Suitable to process
Color steel plate
2
Width of the plate
1200mm
3
Rollers
14rows
4
Dimensions
7100*1550*1510mm
5
Power
4+4kw
6
Thickness of the plate
0.3-0.6mm
7
Productivity
8-10m/min
8
Diameter of the roller
Φ 70mm
9
Voltage
380V 50Hz 3phases
10
Material of the cutting plate
Cr12
11
material of roller
high grade 45#steel
1
Botou Xianfa Roll Forming Machine Factory
It is established in 1996, specializing in colored steel tile forming machinery. With the development of the economy, colored steel tile is widely used in constuction industory. Therefor customers need not only large quantity but also high quality. Our factory produced many now machinery such as CNCauto forming machine. Colored steel tile forming machine, colored steel tile equipment, colored steel tile machinery, Antique glazed tile line, roof load bearing line, compound board line, roll shutter door forming machine and dainpipe on the basis of nomal roll forming machine. At the same time we also produce Anode pole equipment of ESP, fast guardrail equipment and exc. Our products such as C&Ztype purline machine cutting systom, automatic punching have already reached the advanced level of the other suppiers. Our products cover all over the country and also are exported to Russia, Myanmar, Mongolia, Rumania, Iraq, south Korea, Canada, Mozambique Bahrain, Bolivia, Angola, Paraguay, Turkey, Sri Lanka, etc. Beautifu appearence, reasonable construction, pretty design of the tile won good reputation from colored tile products line and oversea customers.
