| Prod Model: |
YD-0033 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Height: |
About 1.5m |
Product Description

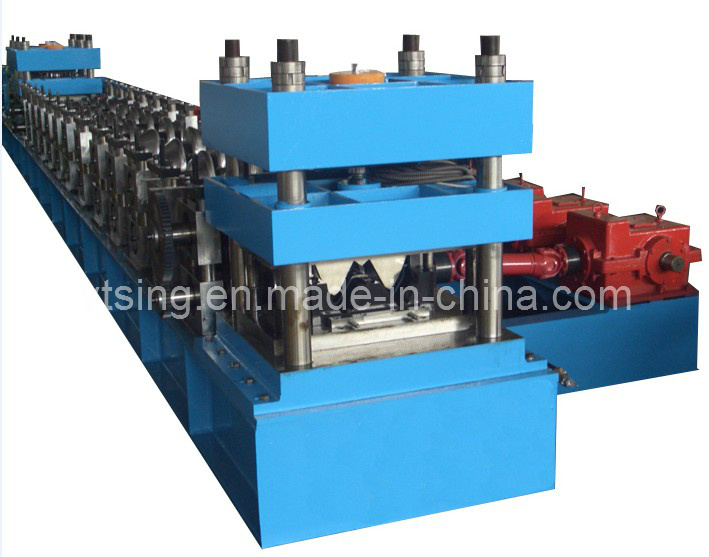

Highway guardrall forming machine mainly consists of decoiler, leveling system, punching equipment, roll forming system, cutting equipment, hydraulic station, electric system and product supporter.
MAIN TECHNICAL SPECIFICATION
(1). Suitable raw material: Q235A galvanized steel sheet; Thickness: 2-3.2mm
(2). Total motor power: 28.2kw main motor power: 15kw; Hydraulic station power: 11kw; Leveling motor power: 2.2kw
(3). Forming speed: 6-8m/min
(4). Material of forming rollers: GCr15bearing steel whith quench treatment
(5). Number of roll stands: About 17 stands
(6). Material of cutting die: Cr12 mould steel with quench treatment
(7). Control system: Mitsubishi PLC
1. PLC computer control
2. No noise, no shake, easy operation
3. Hydraulic system
4. Passed CE certification
5. Passed AAA certification
6. Passed ISO9001 certification
7. Quick changing machine, quick lime machine
Wuxi Yuanding Science & Technology Co., Ltd.
Contact person: Daisy
Tel: +86-024-8621-3062
Mobile: +86-138-4132-5147
Contact me to get more information
Welcome to contact and visit us, waiting for your cooperation sincerely.
|
Highway Guardrail Roll Forming Machine |
|
Number of stations |
22 sets |
|
Thickness |
1.5-4.0mm |
|
Main power |
35KW |
|
Shipment packing |
one 40FT container |
|
Forming speed |
10-16mtr./min(Not include shear) |
|
Productivity |
Guardrails as the drawing |
|
Man power required |
One operator with one assistant |
|
Set up time |
20 mins |
|
Working hours per day |
8 to 16 |
|
Line direction |
Left to right while facing operator panel |
|
Approximate machine height |
1.5M |
|
Complete Line Consist Of |
|
Passive uncoiler |
|
Feeding&Leveling applicator |
|
Hydraulic punching holes |
|
Roll forming machine unit |
|
Hydraulic shear |
|
Output table |
Wuxi Yuanding Science and Technology Co., Ltd. is located in national health city, ecosystem cityscience and technology advanced city and unique inland river harbor type wuxi city who protects the tax area, the south side economy development in pond city area. It produce YX series roll forming machine for roof and wall panels, colored steel tile forming machine, YX series guard rall forming machine, C&Z shaped purline forming machines and metal deck forming machine. These use new generation shaping machine, applies advanced microcomputer and PLC technology as well as intelligent touch screen operation and control system. These function largely improved working efficiency and the integrated performance. Welcome to our company.
