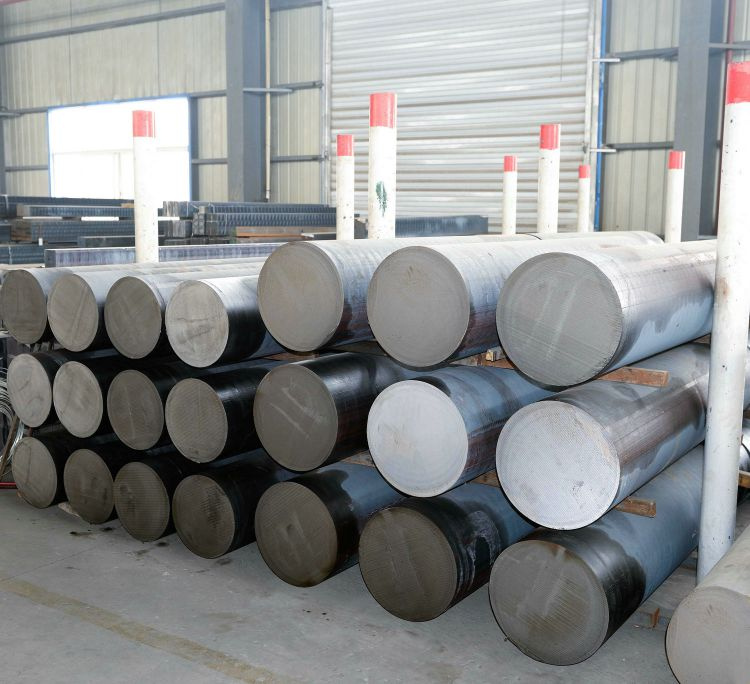

Horizontal Continuous Round Ductile Cast Iron Bar

Horizontal Continuous Round Ductile Cast Iron Bar
Price: US $ 850-1200/Ton
Trade Terms: FOB,CFR,CIF
Min Order: 1/Ton
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: LZQT450-10
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: Diameter18mm-500mm
Length: Generally 3 Meters
Shape: Round
Superiority: Good Ductility, Higer Strength and Abrasive Resist
Casting Form Material: Graphite
Casting Metal: Cast Iron
Casting Form Usage Count: Disposable
Casting Method: Continuous Casting

Product Description

Product Description
LZQT450-10, horizontal continuous roud ductile cast iron bar
Shape:Round
Size range:FromΦ18mm-500mm
Superiority:Good ductility, higher strength and abrasive resistance

Range of application:
Hydraulic industry:Guide sleeve, piston, plunger pump cylinder, hydraulic raft, distributor, hydraulic lock
Transmission industry:Feed roller, stator, pulley
Air compressor industry:Screw blank, screw rotor, compressor roll sets

Other industry:Gear pump gear, machine tool guideway, screw pump rotor, pump body gasket, injection molding machine

Material Specification

Chemical Composition
(%)
Si2.2-3.2
Mn0.2-0.4
P≤0.1
S≤0.03
C3.2-3.9
Mg0.02-0.06

Mechanical Property
Tensile strength
Mpa
30≤D≤150
420-450
150≤D≤450
400-430
Hardness
HB
140-200
Elongation
%
30≤D≤120
≥12
125≤D≤450
≥8
    Format Dimensions    RoundΦ18mm-Φ500mm
Product Details
Primary Competitive Advantages: Distributorships Offered
                                                       Experienced Staff
                                                       Form A
                                                       Guarantee/Warranty
                                                       Price
                                                       Product Features
                                                       Product Performance
                                                       Prompt Delivery
                                                       Quality Approvals
                                                       Reputation
                                                       Service
                                                       Small Orders Accepted
                  Main Export Markets:    Asia
                                                        Australia
                                                        Central/South America
                                                        Eastern Europe
                                                        Mid East/Africa
                                                        North America
                                                        Western Europe

Φ Φ Φ Operation since 2012

Handan shi hengong metallurgical machinery Co., Ltd is the subsidiary company of hebei dazzling continuous casting Co., Ltd, founded in 2012. Hengong loated in handan city, hebei province which is the main location of cast iron production in China. Adhering to the management philosophy of honesty, pragmatic, serving and innocations from dazzling, hengong has introduced and carried out a wide range of innovation and technological improvements and has succeeded in the trail running, this will carry on to the production, the sales, the machining and the service.

Euipped the new foundry with new equipment and machinery

The total investment for Hengong is $25million, covering an area of 106 mu with a total floor area 60, 000 sqms. Hengong has an annual capability of 100, 000 tons for bar production and 50, 000 tons for machining. To achieve this goal, Hengong has equiped the new foundry with new equipments and machinery and increased the experienced technical team.

Takes over from Dazzling so many years of experience in the manufacturing, machining and aftersales service of all these functions.

Owning Seven Horizontal Continuous Casting Production Lines

Currently, we own seven horizontal continuous casting production lines with the abilities to produce ductile iron, gray iron, alloy cast iron with sizesΦ 20mm to 500mm, especially can also produce similar products with corresponding size, shaped cross-section, high intensity and high density.

Compared with other special steel, Hengong bars has lots of superior characters as follows:

1. With particularly pure material, without defects such as slag inclusion, sand inclusion and air holes.

2. High comprehensive mechanics, especially with the notable raise for the character of the toughness and fatigue resistance.

3. Homogeneous structure, excellent pressure resistance and compactness.

4. The material with high precision, less machining allowance, high smooth finish surface for the machining.

5. Hollow section with all the above advantages, however with higher density uniformity, as long as the pressure resistance and compactness.

Furnished with more than 100 sets of Machinning Equipment

Hengong has been furnished with all kinds of machining equipment, with more than 100 sets of lathes, drilling machines, milling machines and grinders etc. To ensure the capability of machining.

On base of advanced technology and technical force, Hengong also strictly execute according to the ISO9001quality control system to ensure the machining quality.

With all the achievements, Hengong has become the unique supplier for continuous casting iron bars manufacturing and maching in the same field which has ranked Hengong at a leading position in the intense market competition.
