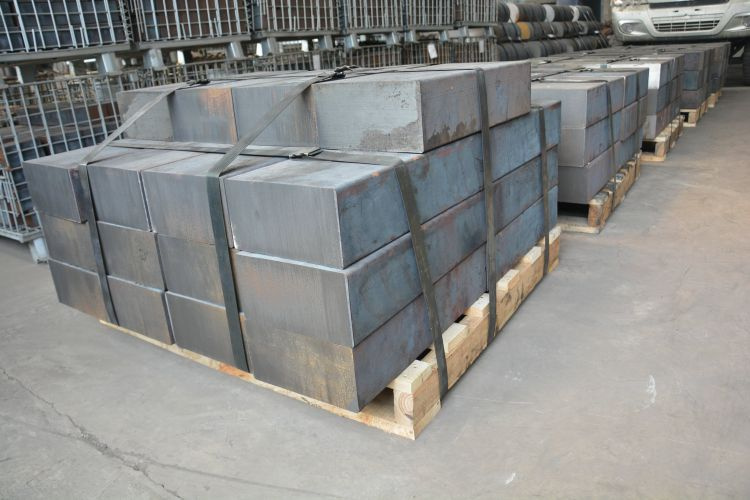

Horizontal Continuous Square Gray Cast Iron

Horizontal Continuous Square Gray Cast Iron
Price: US $ 850-1200/Ton
Trade Terms: FOB,EXW
Min Order: 1/Ton
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: LZHT250
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 30*30-400*400
Length: Generally 3 Meters
Shape: Square
Advantages: Low Price, Good Quality
Casting Form Material: Graphite
Casting Metal: Cast Iron
Casting Form Usage Count: Disposable
Casting Method: Continuous Casting

Product Description

Key Specifications/Special Features
LZHT250, horizontal continuous square gray cast iron
Shape: square
Size range: 30*30mm-400*400mm
Superiority: the graphite as the sheet shape inside of gray cast iron, with brittlemess

Range of application
Hydraulic industry: guide sleeve, piston, plunger pump cyliner, hydraulic valve, distributor, hydraulic lock
Transmission industry:feed roller, stator, pulley
Air compressor industry: screw blank, screw rotor, compressor roll sets
Mould industry:glass mould
Other industry:gear pump gear, machine tool guideway, screw pump rotor, pump body gasket, injection moulding machine

Material Specification
Chemical Compositon
(%)
Si2.2-2.6
Mn0.5-0.8
P≤0.15
S≤0.12
C2.8-3.8
Mechanical PropertyTensile strength
Mpas
≥220
Hardness
HB
170-220
Elongation
%

Format DimensionsSquare30*30mm-400*400mm

Product Details
 Primary Competitive Advantages:Experienced Staff
                                                      Guarantee/Warranty
                                                      International Approvals
                                                      Price
                                                      Product Features
                                                      Product Performance
                                                      Prompt Delivery
                                                     Quality Approvals

                                                      Reputation
                                                      Service
                                                      Small Orders Accepte

                 Main Export Markets:  Asia
                                                     Australasia

                                                    Central/South America
                                                    Eastern Europe
                                                    Mid East/Africa
                                                    North America
                                                   Western Europe



Φ Φ Φ Operation since 2012

Handan shi hengong metallurgical machinery Co., Ltd is the subsidiary company of hebei dazzling continuous casting Co., Ltd, founded in 2012. Hengong loated in handan city, hebei province which is the main location of cast iron production in China. Adhering to the management philosophy of honesty, pragmatic, serving and innocations from dazzling, hengong has introduced and carried out a wide range of innovation and technological improvements and has succeeded in the trail running, this will carry on to the production, the sales, the machining and the service.

Euipped the new foundry with new equipment and machinery

The total investment for Hengong is $25million, covering an area of 106 mu with a total floor area 60, 000 sqms. Hengong has an annual capability of 100, 000 tons for bar production and 50, 000 tons for machining. To achieve this goal, Hengong has equiped the new foundry with new equipments and machinery and increased the experienced technical team.

Takes over from Dazzling so many years of experience in the manufacturing, machining and aftersales service of all these functions.

Owning Seven Horizontal Continuous Casting Production Lines

Currently, we own seven horizontal continuous casting production lines with the abilities to produce ductile iron, gray iron, alloy cast iron with sizesΦ 20mm to 500mm, especially can also produce similar products with corresponding size, shaped cross-section, high intensity and high density.

Compared with other special steel, Hengong bars has lots of superior characters as follows:

1. With particularly pure material, without defects such as slag inclusion, sand inclusion and air holes.

2. High comprehensive mechanics, especially with the notable raise for the character of the toughness and fatigue resistance.

3. Homogeneous structure, excellent pressure resistance and compactness.

4. The material with high precision, less machining allowance, high smooth finish surface for the machining.

5. Hollow section with all the above advantages, however with higher density uniformity, as long as the pressure resistance and compactness.

Furnished with more than 100 sets of Machinning Equipment

Hengong has been furnished with all kinds of machining equipment, with more than 100 sets of lathes, drilling machines, milling machines and grinders etc. To ensure the capability of machining.

On base of advanced technology and technical force, Hengong also strictly execute according to the ISO9001quality control system to ensure the machining quality.

With all the achievements, Hengong has become the unique supplier for continuous casting iron bars manufacturing and maching in the same field which has ranked Hengong at a leading position in the intense market competition.
