| Prod Model: |
CFA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Specification: |
Diameter=30~500mm H=5~20mm |
| Ppi: |
10ppi, 20ppi, 30ppi, 40ppi, 50ppi, 60ppi |
| Thickness: |
12-25mm |
| Application: |
Non-Ferrous, Aluminum and Its Alloys Casting |
| Feature: |
Long Time Materials |
| Type: |
Refractory Material |
| Refractoriness (',℃): |
1200 Celsius Degree |
| Shape: |
Rectangle, Round, Square |
| Material: |
Alumina |
Product Description

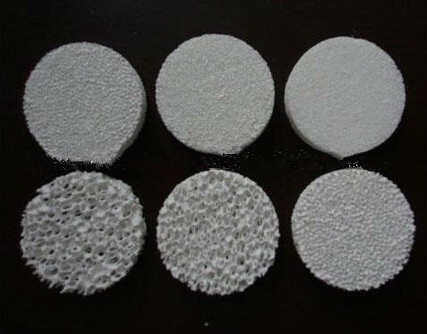

Alumina ceramic foam filter is mainly used for filtration of aluminum and aluminum alloys in foundries and cast houses. It is widely applied to the aluminum fusant filtration equipment of continuous casting, half continuous casting, gravity casting and low pressure casting. It can effectively remove inclusions, reduce trapped gas and provide laminar flow when molten aluminum filtrated.
Using scope of alumina ceramic foam filter:
Alumina ceramic foam filter is widely applied to the aluminum fusant filtration equipment of continuous casting, half continuous casting, gravity casting and low pressure casting.
Specification of alumina ceramic foam filter:
We can produce round, square and other geometric shapes of alumina ceramic foam filter. Sizes from 10mm to 600 mm, thickness from 10 mm to 50 mm, bore density from 10PPI-60PPI.
Alumina ceramic foam filter is equipped with a gasket on the edges. The gasket assures the proper and tight position of the filter within the filter box. Also you can choose alumina ceramic foam filter without gasket. We can produce according to customer requirements of different shapes, sizes and bore density.
| Type | Alumina CFF |
| Material | Al2O3 |
| Applied temperature | ≤1200 Degree C |
| Color | White |
| Bulk Density | 0.35~0.55 g/cm3 |
| Bore Density | 10~60PPI |
| Porosity | 80~90% |
| Bending Strength | 0.6Mpa |
| Compression Strength | ≥0.8Mpa |
Thermal Shock Resistance
(1100Degree C ~ Room Temperature) | Not break after 6 times thermal shock testing |
| Application | non-ferrous,
aluminum and aluminum alloys
high temperature gas filter,
chemical fillings and catalysis carrier etc. |
| Type | Alumina CFF |
| Material | Al2O3 |
| Applied temperature | ≤1200 Degree C |
| Color | White |
| Bulk Density | 0.35~0.55 g/cm3 |
| Bore Density | 10~60PPI |
| Porosity | 80~90% |
| Bending Strength | 0.6Mpa |
| Compression Strength | ≥0.8Mpa |
Thermal Shock Resistance
(1100Degree C ~ Room Temperature) | Not break after 6 times thermal shock testing |
| Application | non-ferrous,
aluminum and aluminum alloys
high temperature gas filter,
chemical fillings and catalysis carrier etc. |
| Specification (inch) | Size (mm) |
| Length×Width×Thickness | Diameter×Thickness | Length×Width×Thickness | Diameter×Thickness |
| 3″×3″×0.87″/1″/1.2″/1.5″ | Φ3″×0.87″/1″/1.2″/1.5″ | 76×76×22/25/30/38 | Φ76×22/25/30/38 |
| 4″×4 ″×0.87″/1″/1.2″/1.5″ | Φ4″×0.87″/1″/1.2″/1.5″ | 100×100×22/25/30/38 | Φ100×22/25/30/38 |
| 5″×5″×1″/1.2″/1.5″ | Φ5″×1″/1.2″/1.5″ | 127×127×25/30/38 | Φ127×25/30/38 |
| 6″×6″×1.2″/1.5″/2″ | Φ6″×1.2″/1.5″/2″ | 152×152×30/38/50 | Φ152×30/38/50 |
| 7″×7″×1.5″/2″ | Φ7″×1.5″/2″ | 178×178×38/50 | Φ178×38/50 |
| 8″×8″×2″ | Φ8″×2″ | 203×203×50 | Φ203×50 |
| 9″×9″×2″ | Φ9″×2″ | 229×229×50 | Φ229×50 |
| 12″×12″×2″ | Φ12″×2″ | 305×305×50 | Φ305×50 |
| 15″×15″×2″ | Φ15″×2″ | 381×381×50 | Φ381×50 |
| 17″×17″×2″ | Φ17″×2″ | 432×432×50 | Φ432×50 |
| 20″×20″×2″ | Φ20″×2″ | 508×508×50 | Φ508×50 |
| 23″×23″×2″ | Φ23″×2″ | 584×584×50 | Φ584×50 |
Beihai Xiaoming International Imp&Exp Co., Ltd Established in 2008, which is a Private High-tech company. It cooperate with and invest to make to the funds in form of company in A large-scale enterprises, BoCent Advanced Ceramic Co., Ltd. This corporation is the biggest enterprise which devote to High-tech at saving energy and environmental field. BoCent Advanced Ceramic is professional manufacturer for environmental ceramic product, such as storage filter, foam filter, DPF and catalyst converter, infrared burning plates. As one of Shareholders, Beihai Xiaoming primarily responsible for Overseas Market Operation.
With the speedy development of solar industry, Beihai Xiaoming International Imp&Exp Co., Ltd interested to set foot in the Great Green Solar Industry and built up manufacture base in Nanning for research & develop, manufacture and sell solar modules, solar power supply system, solar lighting system, solar pumping/ irrigation system and other solar application products etc. The base covers and area of 3600 square meters with luxurious show room and dust-free workshop, equipped with many kinds of high advance and sophisticated devices and instruments
Beihai Xiaoming International Imp&Exp Co., Ltd is in the production, sales as a whole, and in cooperation with a number of large Group companies of major export commodities operated enterprises with a good reputation. For many years, with exports to Europe, and many countries in Southeast Asia, and received high praise.
We have a number of domestic and international famous academia senior adviser, own an innovation R & D team and sales elite. We have an excellent team of R & D\Production\Management and Sales, with passionate and responsibility. Currently, we have applied more than 30 patents for products developed and got certificates issued by international authorities such as TUV, IEC, UL, CE.
With the spirit of innovation during R&D, we were, we are and we will always be perfecting our products with the philosophy of " science, precision, accuracy and high efficiency". We hereby make our commitment: We offer our clients with the most effective and satisfying service, and this is our every person in our company to constantly pursuit.
