| Prod Model: |
JL-KGPS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001:2008,CE,SGS |
| Feature: |
Energy Saving,High Efficiency |
| Package: |
Plywood Case |
| Warranty: |
1 Year |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
Product Description

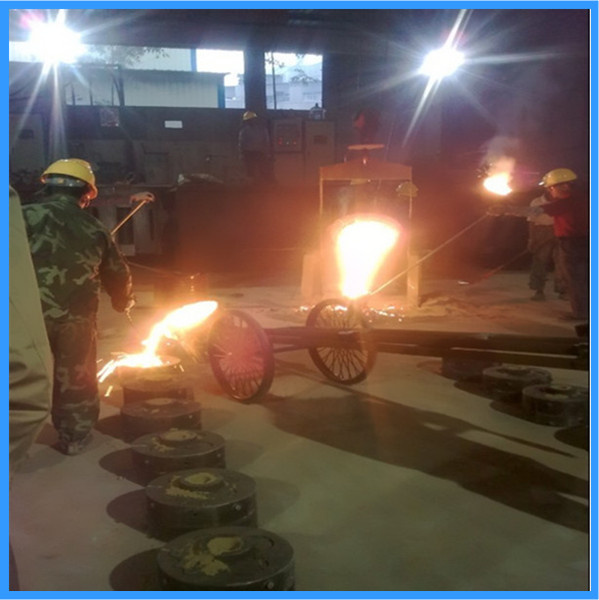

Hot Sale Tilting Type Melting Furnace
1. Overview
Medium Frequency Induction Furnace is the device converting three phase power current into single-phase intermediate frequency current and enabling metal to produce eddy current loss through the electromagnetic field induction to achieve heating and melting. Mainly be used in the material of ferrous and non-ferrous metal casting, melting and heating treatment industry, such as iron, steel, brass, cooper, zinc, tin and so on. As well as heating treatment prior to forging, sintering and tube-bending forming in casting and melting industries.
2. Performance Characteristics:
1. Zero-voltage scanning soft, available for start or stop at any time under any state without impact on power supply;
2. Speedy melting, low production cost, low pollution, conforming to environmental protection requirement;
3. Melting directly from low temperature, available for fully emptying of solution, easy change of category of melting material;
4. Flexibly adjustable power, easy and continuous smooth adjustment, easily controllable temperature, low oxidization loss, uniform metal content;
5. Furnace shell with cast aluminum ally or steel shell construction, small footprint, easy overturn body, available for selection of electric, manual, hydraulic or other overturn mode as needed;
6. Contravariant automatic regulation circuit available for matching of load impendence automatically, maintaining good operation without regulation or compensation of capacitance; Power supply with fault diagnosis facilitating service.
|
Furnace Capacity |
Rating Power |
Input Voltage |
Input Phase |
Input Current |
Assorted Transformer |
Output Voltage |
Output Frequency |
Melting Time |
Volume |
Weight |
|
10-50KG |
50KW |
380V |
3 |
80A |
60KVA |
750V |
2.5KHZ |
20-60Min |
1.2 m³ |
350KG |
|
100KG |
100KW |
380V |
3 |
160A |
120KVA |
750V |
1KHZ |
20-60Min |
6 m³ |
1500KG |
|
150KG |
100KW |
380V |
3 |
160A |
120KVA |
750V |
1KHZ |
30-70Min |
6.5m³ |
1600KG |
|
200KG |
120KW |
380V |
3 |
192A |
150KVA |
750V |
1KHZ |
30-70Min |
7.5m³ |
1700KG |
|
300KG |
130KW |
380V |
3 |
208A |
150KVA |
750V |
1KHZ |
30-70Min |
8.5m³ |
1800KG |
|
500KG |
250KW |
380V |
3 |
400A |
315KVA |
750V |
1KHZ |
30-70Min |
9.5m³ |
2300KG |
|
600KG |
350KW |
380V |
3 |
560A |
400KVA |
750V |
1KHZ |
40-80Min |
11m³ |
2500KG |
|
750KG |
450KW |
380V |
3 |
720A |
500KVA |
750V |
1KHZ |
40-80Min |
12m³ |
3800KG |
|
1000KG |
600KW |
380V 380V-2 |
3/6 |
960A 480A |
600KVA 800KVA |
750V 1300V |
0.8KHZ |
50-90Min |
13m³ |
4500KG |
|
1250KG |
800KW |
380V 380V-2 |
3/6 |
1280A 640A |
800KVA 1250KVA |
750V 1300V |
0.8KHZ |
50-90Min |
14m³ |
5000KG |
|
1500KG |
1000KW |
380V 380V-2 |
3/6 |
1600A 800A |
1250KVA 1500KVA |
750V 1300V |
0.8KHZ |
50-90Min |
15m³ |
5500KG |
|
2000KG |
1250KW |
660V 380V-2 |
3/6 |
1120A 1000A |
1500KVA 1800KVA |
1300V |
1300V |
50-90Min |
17m³ |
6000KG |
|
3000KG |
1500KW |
660V 380V-2 |
3/6 |
1350A 1200A |
1800KVA 2000KVA |
1300V |
1300V |
60-100Min |
20m³ |
7000KG |
|
5000KG |
2500KW |
1000V 660V-2 |
3/6 |
2000A 1120A |
3000KVA 3500KVA |
1300V |
1300V |
60-100Min |
23m³ |
8500KG |
Dongguan Jinlai Electromechanical Device Factory, founded in 1996, which is engaged in R&D, production and sale of solid Induction heating machine professionally. Several senior experts of induction heating equipment gathered here, who initiate the induction heating machines with environmental protection and highly effective energy conservation, positively and diligently.
Now there are series of products range from 3KW to 600KW, including the ultra-high/high/ super-audio/medium frequency induction heater, KGPS Parallel IF Power supply, IGBT energy saving IF power supply, 12 pulse IF furnace and special equipments (e. g. High-frequency quenching machine, Medium-frequency induction melting furnace, Ultrasonic -frequency annealing machine, Induction forging furnace, Brazing machine, Plastic welding machine, Branch divider/Bicycle fittings special -purpose welding machine, Railway river furnace, etc). These products are widely applied in the heating of hardware, metal (steel, iron, copper, aluminum) processing, plastic, deeply heating shaping, brazing, hardening, melting, annealing, hot cooperation and so on.
It was certified to ISO9001: 2008 quality system and CE certification. Advocating quality management conception of "producing products with zero defect", the quality has been guaranteed. The company has been sated up and perfected the marketing network and after-sales system. Our products are widely exported to Russia, USA, Italy, Romania, Netherlands, Finland, Turkey, Ukraine, Argentina, Brazil, India, Pakistan, Malaysia, Indonesia, Thailand, Vietnam and other countries or region. Most of products gain good reputation from customers.
Our conception is "human-oriented, service the society with innovation". "the quality and prestige are the fist" is our mission. The principle is "communal development, mutual benefit, we are looking forward to cooperate with you to create a bright future!
