| Prod Model: |
QC12Y-25x2500 E10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White |
| Certificate: |
CE.ISO |
| Capacity: |
25X2500mm |
| Controller: |
Digital Display |
Product Description

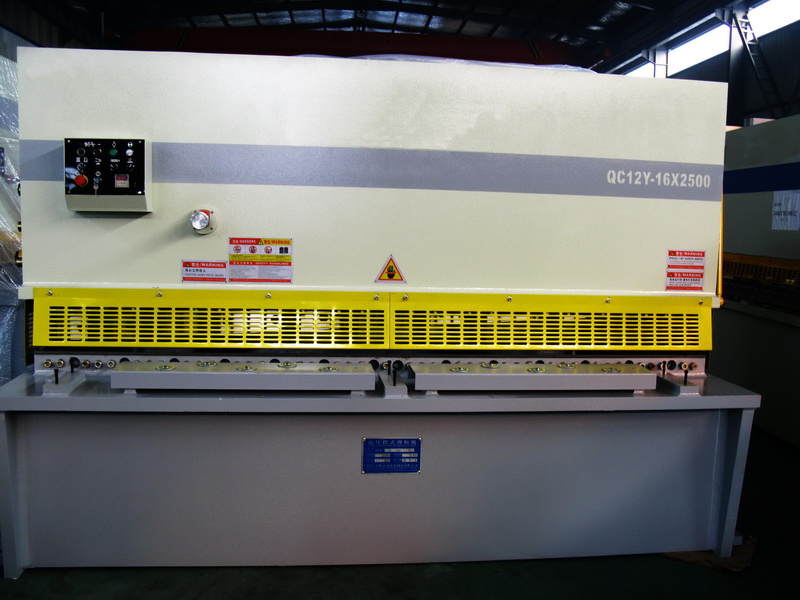

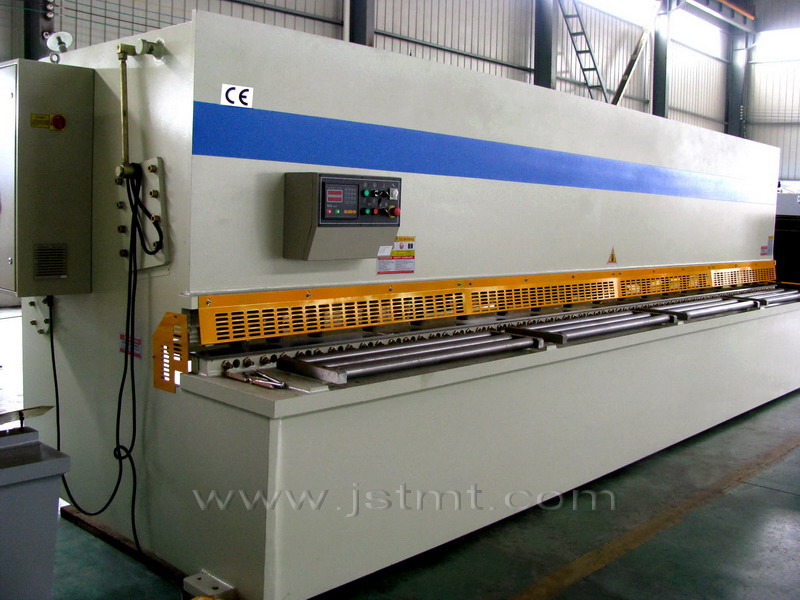

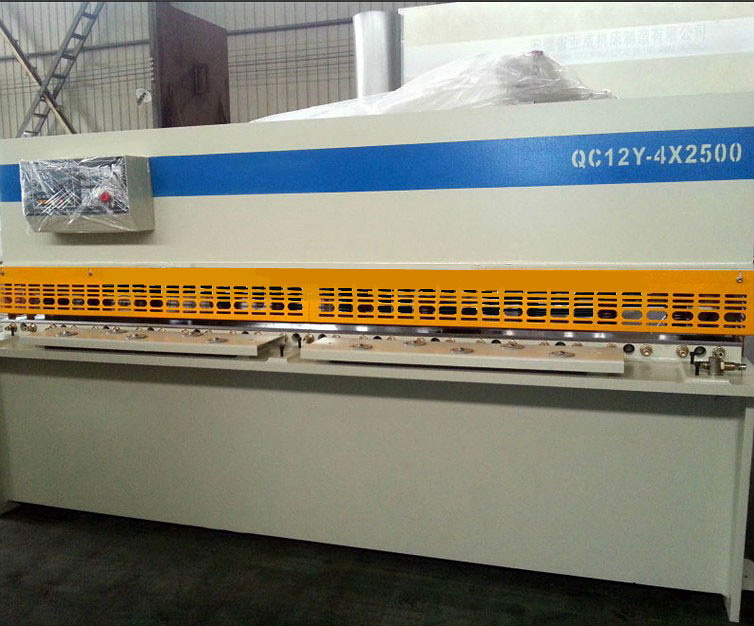

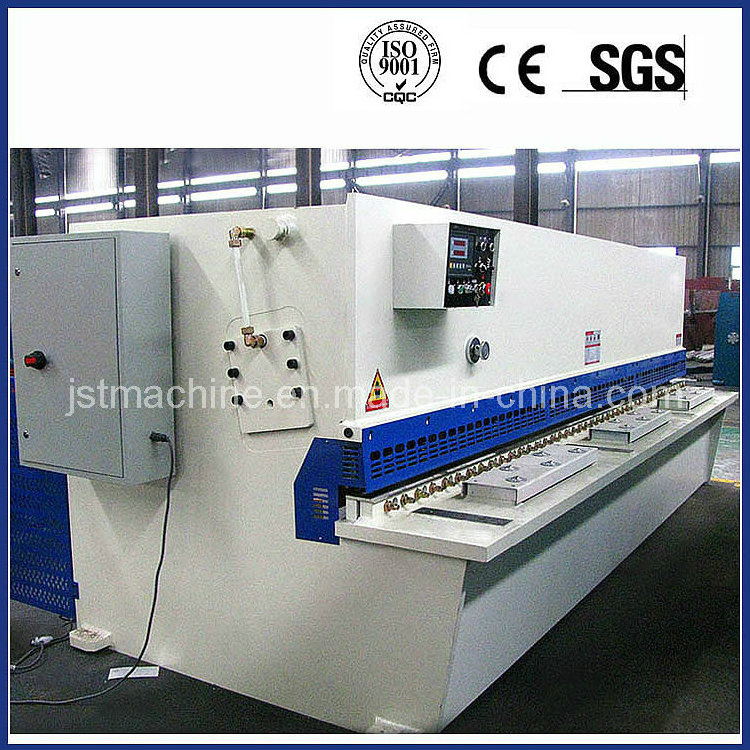

Hydraulic Shearing Machine QC12Y, CNC Shearing Machine, Plate Shearing Machine, QC12Y-25x2500:
* CE, ISO, Certification
* BOSCH /Rexroth Hydraulic system
* High performance1. Totally European design, streamlined looking, Monoblock, The frame of this machine tool is welded construction with steel plate, and stress is eliminated by vibration. As a result, this forging machine features high strength, stable performance, easy operation and convenient maintenance.
2. As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.
3. Hydraulic drive, swing beam, return of knife beam is smooth and prompt by accumulator or nitrogen cylinder
Stepless adjusting is available for the stroke of knife beam to promote the production on plate shearing
4. The position of low blade is adjustable, thus ensuring the equilibrium of the gap between blades after regrinding
5. It is easy and quick to adjust the gap between blades. The value of the gap is indicated on a dial.
6. Motorized adjusting and manual adjusting for the back gauge
7. Cutting times of this machining tool are controlled by the time relay.
8. A set of standard blades.
9. Standard front support sheet frame.
10. Protection fence and the electric interlocker to ensure the safety of the operator.
11. The machine by the European Union CE certification and ISO quality system certification
| NO. | Item | Parameter value | Unit | Remark |
| 1 | Shearing length | 2500 | mm |
|
| 2 | Max cutting thickness | 25 | mm |
|
| 3 | Cutting angle | 3o |
|
|
| 4 | Quantity of pressure plate feet | 18 | pieces |
|
| 5 | Number of strokes | 4-10 | Min -1 |
|
| 6 | Depth of throat | 450 | mm |
|
| 7 | Back stopper stroke | 800 | mm |
|
| 8 | Motor power | 37 | kw |
|
| 9 | Weight | 20000 | kg |
|
| 10 | Overall Size | 4200x2400x2500 | mm |
|
Jadestone Machine Tool Co., Ltd is a high Technology Enterprise specializes in the Field of Metal Sheet Fabricating Industry with Highest Quality Standards 9001: 2001 and Powerful Facility and Productivity.
With Years of Exporting Experiences, we Devote and leading in Manufacturing, Research, Marketing and Puissant Ocean Freight capacity global in Metal Cutting, Bending Machine, CNC Punching Machine, Cast Iron and Moulds Design. Our sales network stretches all over the world, with our business conception of Honesty, Creation. Quality. And after Service. To optimize maximum benefits for various Customers with those High performance products, which awards highly praises and repeat orders continuously from different regions.
Apply Territory:
Our products are widely used in Decor, Metallurgy, Boat & Auto Industries. Elevator, and outside construction building.
Products Ranges:
CNC Press Brake
CNC Shearing Machine
Hydraulic Guillotine Shear
(Option with: Estun, Delem, Cybelec, Italy controller )
Punch Press( CNC punch and Power Press. Hydrauic Press)
Tooling Set for Machine model (Amada. Durma. LVD. Haco. Trumpf...)
Drilling Machine and Milling Machine
Production Line, Uncoiled, Cutting, Bending and Punching. Or can be separated ordered.
Shipments:
Shipments to European, North America. South America. Middle East, South-East Asian and Ocean Countries globally.
After Services:
Provide with technical Services. Training service. Maintenance services. Spare parts in Warranty.
Within 24 hours online Service
