| Prod Model: |
QC12Y-4x2500,4x3200, 6x2500,6x3200, 8x2500, 8x3200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White or Blue |
| Capacity: |
QC12y-4X2500, 4X3200, 6X2500, 6X3200, 8X2500 |
| Ceritifcate: |
CE. ISO9001 |
| Controller: |
E10 Digital Display |
Product Description

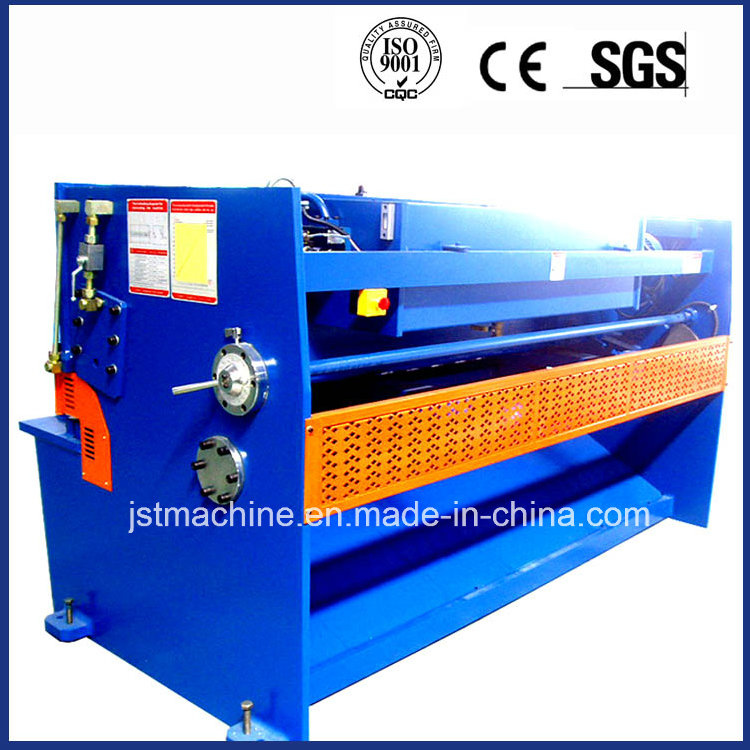

Q12Y Series CNC Hydraulic Shearing Machine with CE (QC12Y-4X2500, 4X3200, 6X2500, 6X3200, 8X2500, 8X3200)
1. Totally European design, streamlined looking, Monoblock, The frame of this machine tool is welded construction with steel plate, and stress is eliminated by vibration. As a result, this forging machine features high strength, stable performance, easy operation and convenient maintenance.
2. As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.
3. Hydraulic drive, swing beam, return of knife beam is smooth and prompt by accumulator or nitrogen cylinder
Stepless adjusting is available for the stroke of knife beam to promote the production on plate shearing
4. The position of low blade is adjustable, thus ensuring the equilibrium of the gap between blades after regrinding
5. It is easy and quick to adjust the gap between blades. The value of the gap is indicated on a dial.
6. Motorized adjusting and manual adjusting for the back gauge
7. Cutting times of this machining tool are controlled by the time relay.
8. A set of standard blades.
9. Standard front support sheet frame.
10. Protection fence and the electric interlocker to ensure the safety of the operator.
11. The machine by the European Union CE certification and ISO quality system certification
| NO. | Item | Parameter value | Unit | Remark |
| 1 | Shearing length | 3200 | mm |
|
| 2 | Max cutting thickness | 4 | mm |
|
| 3 | Cutting angle | 1 0 30 ' |
|
|
| 4 | Quantity of pressure plate feet | 12 | pieces |
|
| 5 | Number of strokes | 5-10 | Min -1 |
|
| 6 | Depth of throat | 150 | mm |
|
| 7 | Back stopper stroke | 400 | mm |
|
| 8 | Motor power | 5.5 | kw |
|
| 9 | Weight | 3600 | kg |
|
| 10 | Overall Size | 3040x1550x1550 | mm |
|
