Prod Model: |
YQ32 Series |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Structure: |
Four- Column Design |
Forging Forming Method: |
Tire Mold Forging |
Product Description

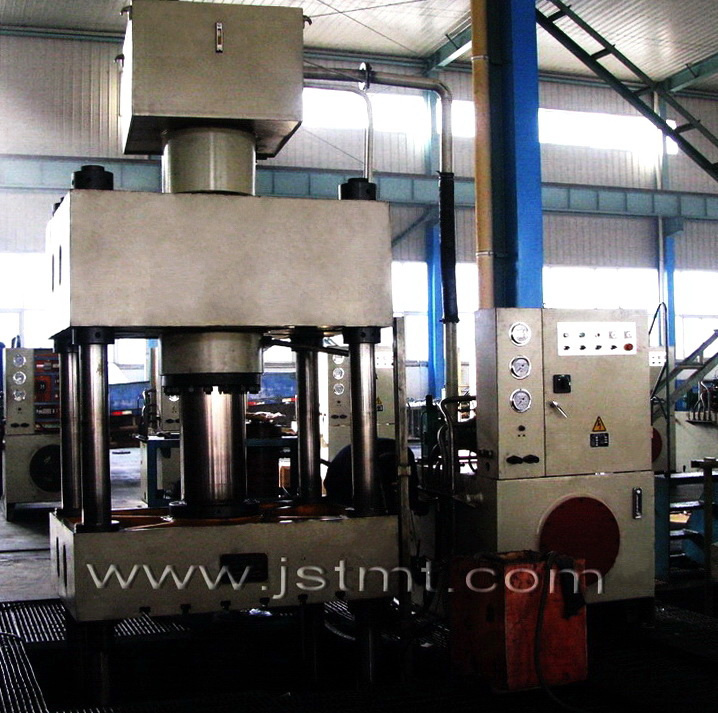

Hydraulic Press, Oil Press, Press Machine (YQ32 Series)
Characteristics:
*4-column structure is simple but with high performance price ratio and convenient for maintenance.
*Cartridge valve equipped for hydraulic control system, with less hydraulic shock, reliable, durable, Fewer release points.
*Fixed stroke forming process or fixed pressure forming process at choice, with pressure hold and time delay and the time is adjustable.
*Adjustable stroke and pressure according to the technology in the specified scope.
*With control panels, the press has three working ways: Adjusting, manual and semi-automatic.
Application:
Suitable to drawing, blanking (blanking buffer device must be elect), bending, flanging, extruding processes. It also can be used to straighten, press-in, form the other materials such as powder, abrasive, plastics and insulator products.
Description |
Unit |
YQ32-40 |
YQ32-63 |
YQ32-100 |
YQ32-100A |
YQ32-160 |
YQ32-160B |
YQ32-200 |
YQ32-200A |
YQ32-315 |
YQ32-315B |
YQ32-400 |
YQ32-500 |
YQ32-500C |
YQ32-630 |
YQ32-800 |
YQ32-1000 |
YQ32-1250 |
YQ32-1600 |
Rated Pressure |
KN |
400 |
630 |
1000 |
1000 |
1600 |
1600 |
2000 |
2000 |
3150 |
3150 |
4000 |
5000 |
5000 |
6300 |
8000 |
10000 |
12500 |
16000 |
Maximun Pressure Ofliquid |
Mpa |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
knock-out pressure |
KN |
120 |
190 |
190 |
190 |
400 |
400 |
400 |
400 |
630 |
630 |
630 |
1000 |
1000 |
1000 |
1600 |
1600 |
1600 |
2000 |
Stroke of Slide |
mm |
450 |
500 |
600 |
600 |
700 |
700 |
700 |
700 |
800 |
800 |
800 |
900 |
900 |
900 |
900 |
900 |
900 |
900 |
Stroke of Knock-out |
mm |
150 |
200 |
200 |
200 |
200 |
200 |
250 |
250 |
300 |
300 |
300 |
350 |
350 |
350 |
350 |
350 |
400 |
400 |
Daylight |
mm |
750 |
750 |
880 |
880 |
1000 |
1000 |
1100 |
1100 |
1250 |
1250 |
1250 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
Speed of Slide |
Descent |
mm/s |
160 |
180 |
120 |
120 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
80 |
80 |
80 |
80 |
80 |
Pressing |
mm/s |
20-25 |
15-20 |
10-14 |
10-14 |
10-15 |
10-15 |
10-15 |
8-12 |
8-12 |
6-10 |
10-15 |
10-15 |
10-15 |
6-10 |
12-15 |
10-15 |
10-15 |
10-15 |
Return |
mm/s |
120 |
100 |
120 |
120 |
70 |
70 |
70 |
70 |
60 |
60 |
55 |
70 |
70 |
60 |
70 |
70 |
70 |
70 |
Size of Table |
L-R |
mm |
500 |
580 |
720 |
1000 |
720 |
1000 |
1000 |
1260 |
1260 |
1400 |
1240 |
1400 |
2400 |
1500 |
1600 |
1600 |
1700 |
1600 |
F-B |
mm |
460 |
500 |
580 |
800 |
620 |
800 |
900 |
1200 |
1200 |
1400 |
1200 |
1400 |
1400 |
1500 |
1600 |
1600 |
1600 |
1600 |
Main Motor Power |
KW |
5.5 |
7.5 |
7.5 |
7.5 |
11 |
11 |
15 |
15 |
22 |
22 |
22 |
2×22 |
2×22 |
2×22 |
45+22 |
45+22 |
2×45 |
3×45 |
Jadestone Machine Tool Co., Ltd is a high Technology Enterprise specializes in the Field of Metal Sheet Fabricating Industry with Highest Quality Standards 9001: 2001 and Powerful Facility and Productivity.
With Years of Exporting Experiences, we Devote and leading in Manufacturing, Research, Marketing and Puissant Ocean Freight capacity global in Metal Cutting, Bending Machine, CNC Punching Machine, Cast Iron and Moulds Design. Our sales network stretches all over the world, with our business conception of Honesty, Creation. Quality. And after Service. To optimize maximum benefits for various Customers with those High performance products, which awards highly praises and repeat orders continuously from different regions.
Apply Territory:
Our products are widely used in Decor, Metallurgy, Boat & Auto Industries. Elevator, and outside construction building.
Products Ranges:
CNC Press Brake
CNC Shearing Machine
Hydraulic Guillotine Shear
(Option with: Estun, Delem, Cybelec, Italy controller )
Punch Press( CNC punch and Power Press. Hydrauic Press)
Tooling Set for Machine model (Amada. Durma. LVD. Haco. Trumpf...)
Drilling Machine and Milling Machine
Production Line, Uncoiled, Cutting, Bending and Punching. Or can be separated ordered.
Shipments:
Shipments to European, North America. South America. Middle East, South-East Asian and Ocean Countries globally.
After Services:
Provide with technical Services. Training service. Maintenance services. Spare parts in Warranty.
Within 24 hours online Service
