Hydraulic Press, Oil Press Yq32-100

Name: Hydraulic Press, Oil Press Yq32-100
Brand: china-castingforging.com
SKU: 677531695
Availability: InStock
Rating: 4.4 (150 reviews)

Price:	US $ 1000-9000/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Jadestone Machine Tool Co., Ltd.

Showroom Product Company Profile

Prod Model:	YQ32-100 Hydraulic Press
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Blue
Forging Forming Method:	Mold Forging

Product Description

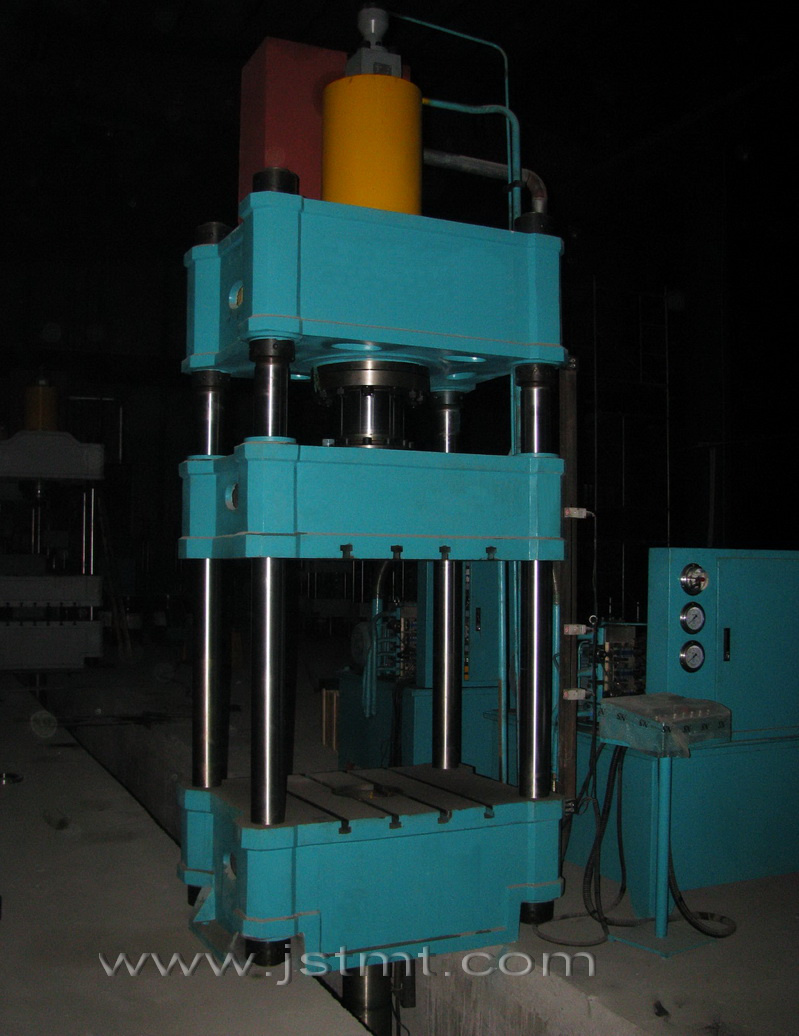

Four-column hydraulic press(YQ32-100):

1) Y32 Serial Press composed of main body and control devices which respectively formed with frame, main cylinder, knock-out cylinder, hydraulic system and drive mechanism, lower and upper limit switches pipe lines, electrical control cabinet and etc.

2) Drive mechanism includes oil tank, high pressure pumps, low pressure control sytem, valves, Electrical control system is designed according to the working procedure of hydraulic principle. By preset, sequential operation can be achieved by drive mechanism via pumps, cylindres, valves, tank and pipe lines.

3) The press Y32 is appliable to compression of plastic materials, For example, powder and plastics products forming and heat/cool metal extrusion, metal sheet drawing, stamping, bending, edge-folding, straightening, depressed mounting and etc.

4) Independent drive structures and electrical devices insure reliable operation with centered control buttons. Adjustment, manual operation and semi-automatic operation, three modes are provided respectively for your choice.

5) The working pressure, pressing speed, unload-descending speed and decelerated pressing speed can be respectively adjusted in reqirements.

By preset, knock-out, non-knock-out and drawing can be taken out with pressure-depentdent or distance-dependent movement of die. In the case of pressure-dependent movement, the main cylinder of YQ32 type press initiates pressure-holding, time delay and automatic return

Specification		Model	Unit	11601	11602	11603	11604	11605	11606	11607	11608	11609	11610	11611
Specification		Model	Unit	YQ32-40	YQ32-63	YQ32-100	YQ32-100A	YQ32-160	YQ32-200	YQ32-315	YQ32-400	YQ32-500	YQ32-500C	YQ32-630
Nominal force			KN	400	630	1000	1000	1600	2000	3150	4000	5000	5000	6300
Knock-out force			KN	120	190	190	190	240	400	630	630	1000	1000	1000
Max. working hydraulic pressure			Mpa	25	25	25	25	25	25	25	25	25	25	25
Slide-stroke			mm	450	500	600	600	700	700	800	800	900	900	900
Knock-out stroke			mm	150	200	200	200	200	250	300	300	350	350	350
Max. distance between lower sur-face of slide and surface of table			mm	700	800	900	900	1050	1100	1250	1300	1500	1500	1600
Slide-travel speed	Idledown running		mm/s	40	100	22	180	120	100	100	100	100	100	100
	Working		mm/s	15	20	14	14	10	12	5	4	10	10	6
	Return		mm/s	50	60	47	60	60	52	60	60	60	60	50
Effec-tive area of table	Left-right		mm	500	560	680	500	1000	1000	1200	1200	1400	2370	1500
Effec-tive area of table	Front-back		mm	460	500	580	460	800	900	1200	1200	1400	1450	1500
Overall dimen-sion	Left-right		mm	2000	2400	2500	2000	2700	2825	3235	3235	4060	6500	4200
	Front-back		mm	1300	1400	1500	1300	1700	2060	2200	2200	3525	3800	4200
	Height above ground		mm	2600	3100	2950	2600	3400	3725	4295	4500	4995	4740	5600
Total motor power			kw	4	7.5	7.5	4	7.5	15	22	22	45	45	45
Weight			kg	2000	3000	4000	2000	6000	11000	14000	22000	25000	38000	34000

Specification		Model	Unit	11601	11602	11603	11604	11605	11606	11607	11608	11609	11610	11611
Specification		Model	Unit	YQ32-40	YQ32-63	YQ32-100	YQ32-100A	YQ32-160	YQ32-200	YQ32-315	YQ32-400	YQ32-500	YQ32-500C	YQ32-630
Nominal force			KN	400	630	1000	1000	1600	2000	3150	4000	5000	5000	6300
Knock-out force			KN	120	190	190	190	240	400	630	630	1000	1000	1000
Max. working hydraulic pressure			Mpa	25	25	25	25	25	25	25	25	25	25	25
Slide-stroke			mm	450	500	600	600	700	700	800	800	900	900	900
Knock-out stroke			mm	150	200	200	200	200	250	300	300	350	350	350
Max. distance between lower sur-face of slide and surface of table			mm	700	800	900	900	1050	1100	1250	1300	1500	1500	1600
Slide-travel speed	Idledown running		mm/s	40	100	22	180	120	100	100	100	100	100	100
	Working		mm/s	15	20	14	14	10	12	5	4	10	10	6
	Return		mm/s	50	60	47	60	60	52	60	60	60	60	50
Effec-tive area of table	Left-right		mm	500	560	680	500	1000	1000	1200	1200	1400	2370	1500
Effec-tive area of table	Front-back		mm	460	500	580	460	800	900	1200	1200	1400	1450	1500
Overall dimen-sion	Left-right		mm	2000	2400	2500	2000	2700	2825	3235	3235	4060	6500	4200
	Front-back		mm	1300	1400	1500	1300	1700	2060	2200	2200	3525	3800	4200
	Height above ground		mm	2600	3100	2950	2600	3400	3725	4295	4500	4995	4740	5600
Total motor power			kw	4	7.5	7.5	4	7.5	15	22	22	45	45	45
Weight			kg	2000	3000	4000	2000	6000	11000	14000	22000	25000	38000	34000

Jadestone Machine Tool Co., Ltd is a high Technology Enterprise specializes in the Field of Metal Sheet Fabricating Industry with Highest Quality Standards 9001: 2001 and Powerful Facility and Productivity.

With Years of Exporting Experiences, we Devote and leading in Manufacturing, Research, Marketing and Puissant Ocean Freight capacity global in Metal Cutting, Bending Machine, CNC Punching Machine, Cast Iron and Moulds Design. Our sales network stretches all over the world, with our business conception of Honesty, Creation. Quality. And after Service. To optimize maximum benefits for various Customers with those High performance products, which awards highly praises and repeat orders continuously from different regions.

Apply Territory:
Our products are widely used in Decor, Metallurgy, Boat & Auto Industries. Elevator, and outside construction building.

Products Ranges:
CNC Press Brake
CNC Shearing Machine
Hydraulic Guillotine Shear
(Option with: Estun, Delem, Cybelec, Italy controller )
Punch Press( CNC punch and Power Press. Hydrauic Press)
Tooling Set for Machine model (Amada. Durma. LVD. Haco. Trumpf...)
Drilling Machine and Milling Machine
Production Line, Uncoiled, Cutting, Bending and Punching. Or can be separated ordered.

Shipments:
Shipments to European, North America. South America. Middle East, South-East Asian and Ocean Countries globally.

After Services:
Provide with technical Services. Training service. Maintenance services. Spare parts in Warranty.
Within 24 hours online Service
