| Prod Model: |
YL41-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
1000kn |
| Return Force: |
135kn |
| Max. Hydraulic Pressure: |
25 |
| Slide Stroke: |
500mm |
| Throat Depth: |
380mm |
| Forging Forming Method: |
Mold Forging |
Product Description

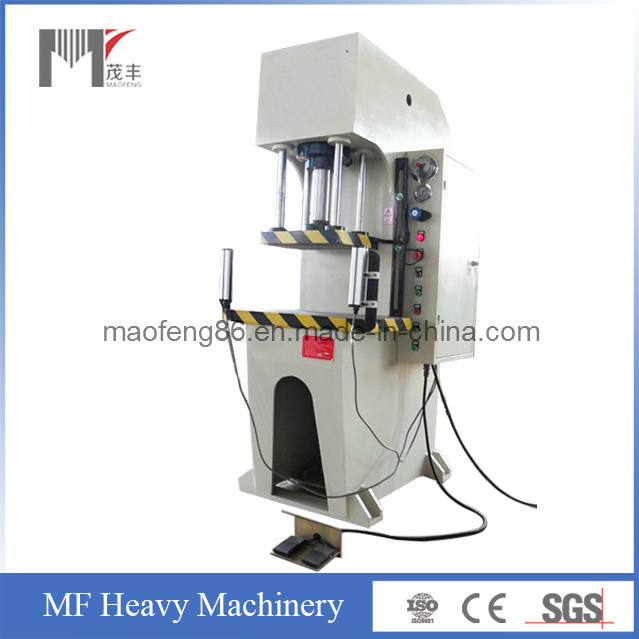

It adopt intellegient structure, c type single arm frame structure, has the feature such as good reliable, simple structure and easy operation.
The frame is entirely welded with steel plates and treated to relive stress by tempering.
Cartridge valve equipped for hydraulic control system, reliable, durable and less hydraulic shock, shorter connection pipeline and fewer release points.
Hydraulic system adopt pressure pre-release device, low impact of hydraulic pressure.
Independent electrical control, reliable, audio-visual and convenient for maintenance.
Centralized button control system, with adjustment, hand and semi-auto operation modes at operator's choice(semi-automatic has two type tech: Set-stroke single and set-presser single).
The operating force, no-load traveling and, low-speed movement and travel range can be adjusted subject to technological requirements.
|
|
YL41-40 |
YL41-63 |
YL41-80 |
YL41-100 |
|
Capacity |
kN |
400 |
630 |
800 |
1000 |
|
Return Force |
kN |
80 |
69 |
115 |
135 |
|
Max. Hydraulic Pressure |
mm |
25 |
25 |
25.5 |
25 |
|
Slide Stroke |
mm |
400 |
500 |
500 |
500 |
|
Throat Depth |
kN |
280 |
320 |
320 |
380 |
|
Shut Height |
Straightening |
mm |
600 |
700 |
700 |
700 |
|
|
Pressing |
mm |
800 |
1000 |
1000 |
1000 |
|
Slide Speed |
Idle Stroke |
mm/s |
110 |
130 |
70 |
75 |
|
|
Pressing |
mm/s |
9-22 |
6-14 |
8-18 |
7-15 |
|
|
Return |
mm/s |
110 |
125 |
100 |
90 |
|
Bolster |
LR |
Straightening |
mm |
1100 |
1200 |
1200 |
1400 |
|
|
|
Pressing |
mm |
620 |
720 |
720 |
850 |
|
|
FB |
mm |
520 |
600 |
600 |
720 |
|
Slide |
LR |
mm |
560 |
620 |
700 |
700 |
|
|
FB |
mm |
420 |
460 |
500 |
500 |
|
Bolster Height Above Floor |
mm |
720 |
750 |
780 |
820 |
|
Bolster Opening |
mm |
φ120 |
φ150 |
φ180 |
φ200 |
|
Outline Size |
LR |
Straightening |
mm |
1250 |
1280 |
1350 |
1400 |
|
|
|
Pressing |
mm |
1250 |
1280 |
1350 |
1400 |
|
|
FB |
mm |
1300 |
1450 |
1550 |
1900 |
|
|
Above Floor |
Straightening |
mm |
2600 |
2750 |
2860 |
2920 |
|
|
|
Pressing |
mm |
2800 |
3050 |
3160 |
3220 |
|
|
Below Floor |
mm |
/ |
/ |
/ |
/ |
|
Main Motor Power |
kW |
5.5 |
5.5 |
7.5 |
7.5 |
|
Weight |
Straightening |
kg |
2800 |
4200 |
5300 |
6400 |
|
|
Pressing |
kg |
3000 |
4500 |
5500 |
6800 |
