| Prod Model: |
HDLW12-50*3000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
on Request |
| Max Pre-Bending Thickness: |
50mm |
| Max Bending Thickness: |
60mm |
| Diameter Of Upper Roller: |
670mm |
| Max Plate Width: |
3000mm |
| Length Of Plate: |
3100mm |
| Main Motor Power: |
75kw |
| Controlling Mode: |
CNC |
| Precision: |
High Precision |
| Type: |
Heavy-Duty Machine Tool |
| Automatic Grade: |
Automatic |
Product Description

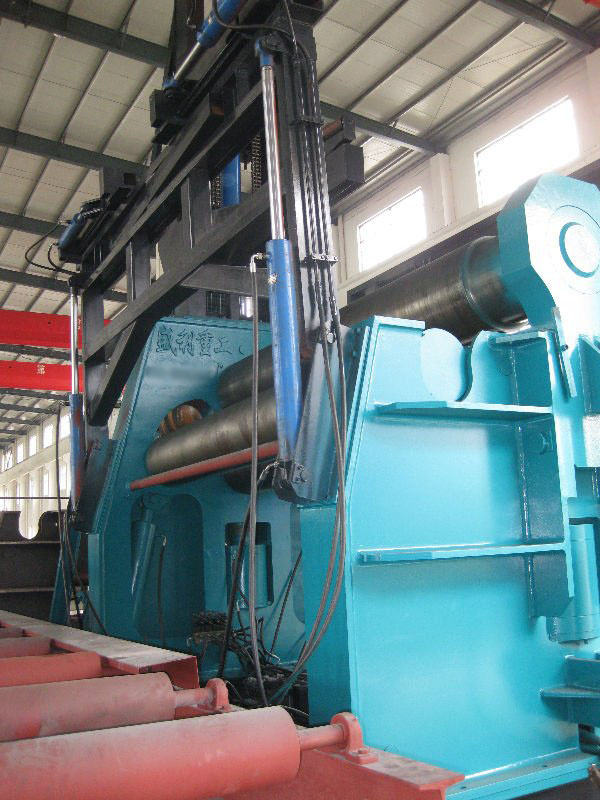

Hydraulic Roll Forming Machine (HDLW12-50*3000)
Leveling easily
Once cycle forming
Large cone rolling more efficient
Easy to correct
Professional manufacturer of hydraulic roll forming machine
1. Superiority and some features usually only in large size plate rolling machine:
2. Fully hydraulic-driven (as opposed to the usual manual and mechanical movement)
3. Multiple independent hydraulic motor (as opposed to only one set of electric motors, reduction unit and gear)
4. Automatic hydraulic line speed compensation (as distinct from inefficient clutch)
5. Clamping pressure control (as opposed to holding without control)
Machine model options
1. Roller surface hardened
2. Hydraulic roller cone winding attachment
3. Surface finishing
4. Hydraulic top support system
5. Hydraulic side pressure
6. Brace perimeter security fence
7. CNC control system
8. Automatically oil cooler
Model standard device
1. LCD digital electronic reading devices
2. Two clamping pressure rollers, driven by two independent hydraulic motor
3. Driven hydraulic front controller more speed,
4. Control of the entire machine
5. Emergency security emergency stop
Following users apply to use the machine
1. First use of the user, because this is one of the most easy-to-operate machine
2. Operators lack of inspection requires high productivity,
3. Increase profitability requires high accuracy,
4. Improving quality want only one operator, reducing labor costs
5. Due to the large size of the Board, production of high-or for security reasons require handling device
6. Want to use CNC operations.
|
Model |
Plate width (mm) |
Max. plate
thickness (mm) |
Pre-bending thickness
(mm) |
Minimum reel diameter (mm) |
Plate yield limit (MPa) |
Diameter of
upper roller
(mm) |
Diameter of
lower roller
(mm) |
Diameter of
side roller
(mm) |
|
W12NC-12× 4000 |
4000 |
12 |
8 |
800 |
245 |
380 |
340 |
280 |
|
W12NC-16× 3200 |
3200 |
16 |
12 |
800 |
245 |
380 |
340 |
280 |
|
W12NC-20× 2500 |
2500 |
20 |
16 |
800 |
245 |
380 |
340 |
280 |
|
W12NC-25× 2000 |
2000 |
25 |
20 |
800 |
245 |
380 |
340 |
280 |
|
W12NC-32× 2500 |
2500 |
32 |
25 |
1500 |
245 |
520 |
500 |
350 |
|
W12NC-32× 4000 |
4000 |
32 |
25 |
1300 |
245 |
650 |
580 |
480 |
|
W12NC-40× 3200 |
3200 |
40 |
32 |
1300 |
245 |
650 |
580 |
480 |
|
W12NC-45× 2500 |
2500 |
45 |
40 |
13600 |
245 |
650 |
580 |
480 |
|
W12NC-50× 2000 |
2000 |
50 |
42 |
1300 |
245 |
650 |
580 |
480 |
|
W12NC-50× 3200 |
3200 |
50 |
40 |
1800 |
245 |
680 |
650 |
520 |
