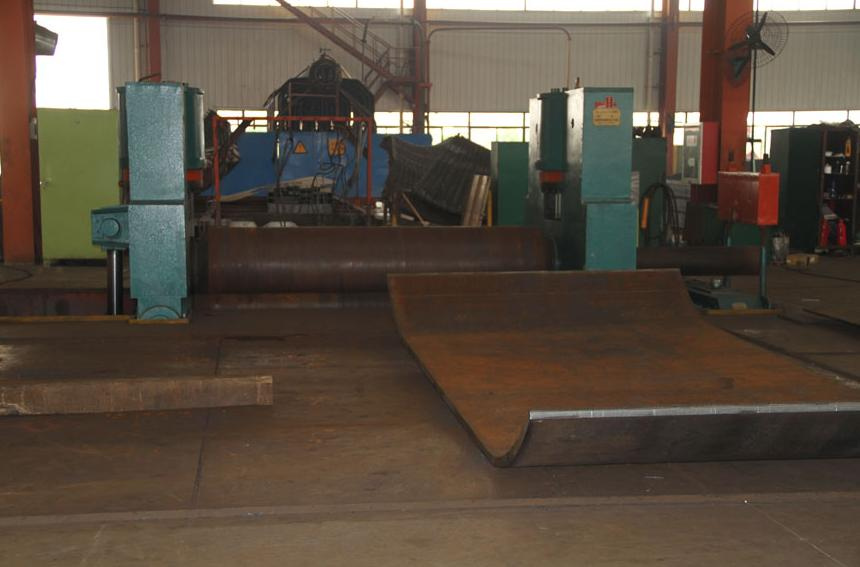

Hydraulic Rolling Forming Machine (W11S-70*3000)

Name: Hydraulic Rolling Forming Machine (W11S-70*3000)
Brand: china-castingforging.com
SKU: 674162095
Availability: InStock
Rating: 4.5 (30 reviews)

Price:	Negotiable
Trade Terms:	by Sea
Min Order:	1Set

Contact Supplier

Nantong Shengli Heavy Machine Manufacturing Co., Ltd.

Showroom Product Company Profile

Prod Model:	W11S-70*3000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Blue
System:	Hydraulic
Type:	Metal Rolling&Drawing Machine

Product Description

W11S Hydraulic rolling forming machine Performance and Characteristics

Standard featurese:

1. Fully hydraulic power, more speed
2. Hydraulic motor driving all three rollers
3. Hydraulic turnover device(romove the product)
4. Front control board to control all of the machine
5. Digital monitor
6. Security emergency stop devices
7. Three press roll consists of three independent hydraulic motor driving

Model options

1. Hydraulic roller cone winding attachment
2. Brace perimeter security fence
3. CNC control system
4. Roller surface hardened

Advantages:

1) rolling products straightness, upper roll set drum-shaped, with side roller regulation, products straightness control within 1/2000, it is particular beneficial to small-diameter cylinders, ensure the following operations welding smoothly, guarantees welding quality.

2) use the rear bending process, eliminate curved toward the front of the dorsal horn, products roundness.

3) with the automated device, effectively preventing the wrong side of the occurrence.

4) use direct pressure on the end of the materials, it is convenient to controll the remaining straight edge.

HDLW11S upper roller universal plate bending machine technical parameters
Model	Max Pre-bending thickness(mm)	Max bending thickness(mm)	Diameter of theupper roller(mm)	Max plate width(mm)	Main motor power(kw)
HDLW11S-8*1500	6	8	175	1500	3
HDLW11S-12*1500	10	12	245	1500	4
HDLW11S-10*2000	8	10	235	2000	4
HDLW11S-12*2000	10	12	250	2000	5.5
HDLW11S-16*2000	12	16	255	2000	7.5
HDLW11S-20*2000	16	20	260	2000	11
HDLW11S-10*2500	8	10	255	2500	5.5
HDLW11S-12*2500	10	12	270	2500	7.5
HDLW11S-16*2500	12	16	300	2500	11
HDLW11S-20*2500	16	20	330	2500	15
HDLW11S-25*2500	20	25	380	2500	18.5
HDLW11S-30*2500	25	30	410	2500	22
HDLW11S-35*2500	30	35	460	2500	30
HDLW11S-40*2500	35	40	500	2500	37
HDLW11S-25*3000	20	25	430	3000	22
HDLW11S-30*3000	25	30	450	3000	30
HDLW11S-35*3000	30	35	500	3000	37
HDLW11S-40*3000	35	40	540	3000	45
HDLW11S-50*3000	40	50	580	3000	55
HDLW11S-60*3000	50	60	650	3000	55
HDLW11S-70*3000	60	70	710	3000	75
HDLW11S-80*3000	70	80	760	3000	75
HDLW11S-100*3000	90	100	820	3000	90
HDLW11S-120*3000	100	120	860	3000	110
HDLW11S-125*3000	105	125	880	3000	110
HDLW11S-50*3500	40	50	620	3500	55
HDLW11S-60*3500	50	60	680	3500	75
HDLW11S-70*3500	60	70	740	3500	75
HDLW11S-80*3500	70	80	820	3500	75
HDLW11S-100*3500	90	100	860	3500	90
HDLW11S-60*4000	50	60	780	4000	75
HDLW11S-80*4000	70	80	860	4000	90
HDLW11S-100*4000	90	100	900	4000	90
HDLW11S-120*4000	100	120	990	4000	110
HDLW11S-160*4000	130	160	1260	4000	2*90
HDLW11S-200*4000	170	200	1480	4000	2*132

Nantong Shengli Heavy Machine Manufacturing Co., Ltd. is a professional machinery manufacturing company which is engaged in the research and development of rolling machines(W11S, W11, W12series), shearing machines(QC11Y series) and press brake(WC67Y), tube benders and other project large scale machineries. Located in Nantong, Jiangsu Province, China

In recent years, our company has been focusing on the principles of "people-first" and aims to manufacture products in line with ISO2000: 9001, CE international management standards. We strengthen management and keep the overall capability in this industry, and the quality of our product has been greatly improved. Our advantages lie at quality, prices and services

Our company owns the import and export licenses. Our products are mainly exported to Asia, America and Europe. Our company has won the recognitions from foreign and domestic customers with good quality and has established long-term co-operative relationships with them.

We are willing to provide the most satisfactory services for customers around the world and sincerely welcome foreign and domestic friends to visit our company and co-operate on win-win situations.
