| Prod Model: |
YD-630A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal: |
630kn |
| Press Box Size: |
1000mm*600mm*500mm |
| Bale Size: |
180mm*180mm |
| Bale Weight: |
30-40kg |
| Production: |
0.8-1t |
| Power: |
7.5kw |
| Type Of Baler Out: |
Turn-out |
| Operation: |
Manual |
| Forging Forming Method: |
Mold Forging |
Product Description
1. Press scrap thickness under 3mm
2. Front bale, fast speed
3. Manual operation metal baler/Hydraulic press/compactor
1. Brief introduction:

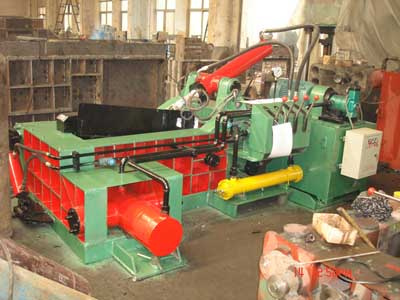

This metal baler/Hydraulic press/compactor machine cold compresses material thickness under 3mm, like materials of dismounted automobile shells, waste bucket, waste copper and aluminum into rectangle lumps. The operation efficiency is high and lump lengths are identical and uniform. The hydraulic system applies an integrated valve block and the product is stable and reliable in technical performance.
2. Product characteristics:
1. The longest main cylinder applies quick-action technology and its operation efficiency is one time higher than that of the machines of the same type in China.
2. The machine for export is designed with integration of main machine and ydraulic
System. It covers small area and does not need any installation.
3. The package is discharged from side way, The package is compact and nice.
4. Full automatic and with fast device
| Model | Nominal pressure (ton) | Material box size
(mm) | Baler size (mm) | Productivity(kgs/h) | Bale discharging mode | Motor(KW) | Machine weight (ton) |
| YD-630A | 63 | 1000*600*500 | 200*200 | 500-750 | Turn over | 11 | 4.5 |
| YD-1000 | 100 | 1000*700*500 | 250*250
220*220
200*200 | 750-1000 | Turn over | 11 | 5.5 |
| YD-1000A | 100 | 1100*500*500 | 200*200 | 750-1000 | Front bale | 11 | 5 |
| YD-1300B | 130 | 1200*700*550 | 300*300
250*250 | 1000-1800 | Turn over | 15 | 6 |
| YD-1300C | 130 | 1200*800*550 | 300*300
250*250 | 1500-2000 | Turn over | 15 | 6.5 |
| YD-1350 | 135 | 1400*600*600 | 600*250 | 1500-2000 | Front bale | 18.5 | 7 |
| YD-1600 | 160 | 1200*800*550 | 300*300 | 1500-2000 | Turn over | 18.5 | 7 |
| YD-1600A | 160 | 1600*800*800 | 350*350 | 1750-2250 | Turn over | 22 | 12 |
| YD-2000 | 200 | 1600*1200*800 | 350*400 | 2000-2500 | Turn over
side push | 30 | 18 |
| YD-2500 | 250 | 2000*1200*1000 | 450*450 | 2250-3500 | Turn over
Side push | 30 | 20 |
| YD3150 | 315 | 2000*1400*1200 | 450*500 | 3750-4500 | Side push | 37 | 32 |
| YD4000 | 400 | 2000*1600*1200 | 500*500 | 4500-6250 | Side push | 45 | 40 |
| YD-4000A | 400 | 2500*1600*1200 | 600*500 | 7500-10000 | Side push | 45 | 50 |
Jiangyin Chuangda Machinery Industry Co., Ltd. is located in Zhouzhuang Town, Jiangyin City, Jiangsu Province. Our factory is specialized in producing Hydraulic balers, briquetting presses, Alligators, as well as firefighting equipment and machinery, etc.
Most of our machines are used in recycling process in recycling companies and steel factories, and they use our machines to help recycle and compress waste metal & non-metal materials to save the space for delivery and store, and also help reuse the waste materials.
We have 150 employees and 17 engineers and technicians, and our factory also cooperates with experts with rich experience and innovative technology, guaranteeing the good quality of our presses and improvement in R&D.
We sincerely welcome friends from recycling, metallurgy & other fields to visit our factory and cooperate with us. We have exported equipment to East Europe, South Africa, America, Asia, the Middle East, and many other worldwide countries and regions. We have pleasant cooperation with all our customers.
