| Prod Model: |
XZ-250B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Period: |
12 Months |
| Delivery Time: |
in 15 Working Days |
| Processing Object: |
Metal |
| Molding Style: |
Forging |
| Molding Technics: |
Gravity Casting |
| Application: |
Auto Parts |
| Material: |
Steel |
| Heat Treatment: |
Quenching |
| Surface Treatment: |
Induction Hot Forging |
| Forging Tolerance: |
+/-0.1mm |
| Certification: |
CE, ISO 9001:2000, SGS |
Product Description

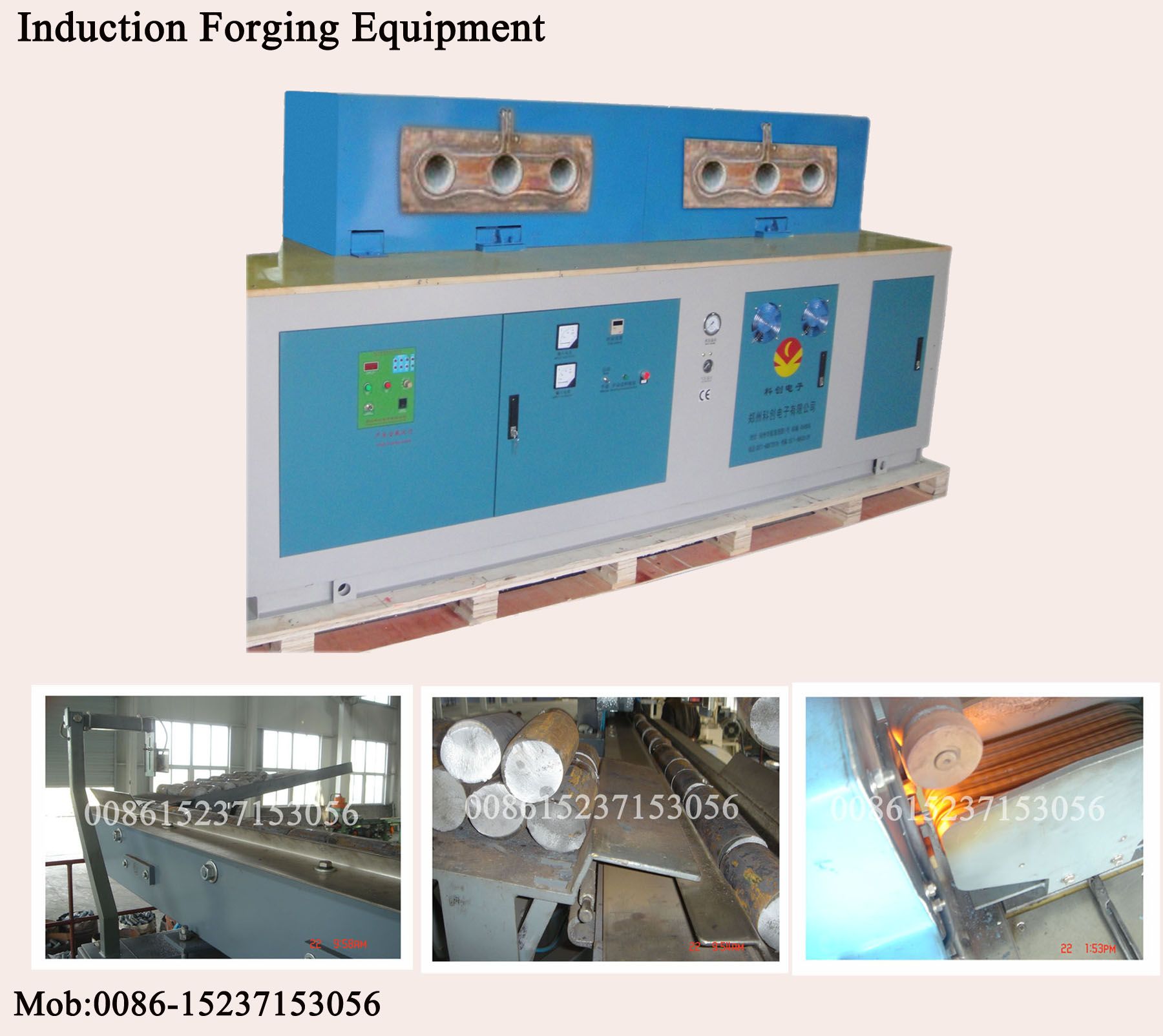

IGBT Induction Forging Equipment XZ-250B datum:
Model
XZ-250B
Input Power supply
Three Phases 380V
Rated Input Power
250KVA
Max Input Current(Single Phase)
380A
Oscillating Frequency
0.5-20KHZ
Frequency Control Precision
±1.5KHz
Working Water Pressure
0.15-0.3Mpa
Memo
One Main body, one transformer
Kechuang Induction Forging Equipment Brief Introduction:
1. Technique data
Power range: 30KVA—1000KVA
Frequency range: 0.1KHz—20KHz
2. Feature
(1)Adopts series resonance technique, induction coil output high voltage and small current, resonance circuit loss is average lower 25 times than parallel resonance, whole machine save energy 10-20%. It saves energy 50% and more than old fashion medium machine. It is the most save electric heating equipment in domestic at present.
(2)Induction furnace adopts thermal insulation, keep temperature, insulation technique processing, not only heat loss minimum, and greatly reduces the sensor maintenance cost. Induction coil structure is simple, easy maintenance, the abandonment of traditional casting process, won't have crack and scrap.
(3) The 12 pulse technology thorough solve the induction heating machine pollution problem to power network.
(4) Improve coil voltage and save energy, at the same time, adopts patent technology
solved throughtly for the coil voltage high lead in flint fault, bringing unsafe factors.
(5) Integration design, compact structure, simple operation,
(6) bar could heat to Φ300mm, the furnace and core temperature controlled.
(7) It has finished forging to copper, aluminium,etc.
(8)Configure automatic feeding, feed, sorting, fast material,etc, it can realize automation control.
Kechuang Induction Forging Equipment Application Pictures:
Zhengzhou Kechuang Electronic Co., Ltd, as a king induction heating machine manufacturer in China, we have the following advantages:
1. Induction heating machine power from 8KW-1000KW, with frequency range from 0.1kHz-500kHz.
2. Main circuit adopts Siemens IGBT series resonance circuit.
3. We focus on the metal parts heat treatment production line.
4. We cooperate with the Zhengzhou University.
5. We have CE, SGS certification.
Zhengzhou Kechuang Electronic Co., Ltd is Henan high& new technology enterprise, China heat treatment association membership. From the company's founding, Kechuang Electronic always takes the scientific& technological innovation as the company development driving force. Company has obtained more than ten national patents, has won many many national and provincial science&technology innovation award. Set up henan province induction heating engineering center, has developed hundreds of market welcome products. Has already passed the European Union CE certification, not only in all over China, Asia, Europe, America, Africa, Oceania, everywhere you can see kechuang products and also the engineer local service figure.
