| Prod Model: |
S-MF-200/250/300/400/500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Detailed Product Description
1. Save 30% energy
2. Medium frequency induction heating
3. Heating big diameter bars
4. Hardening layer is deeper

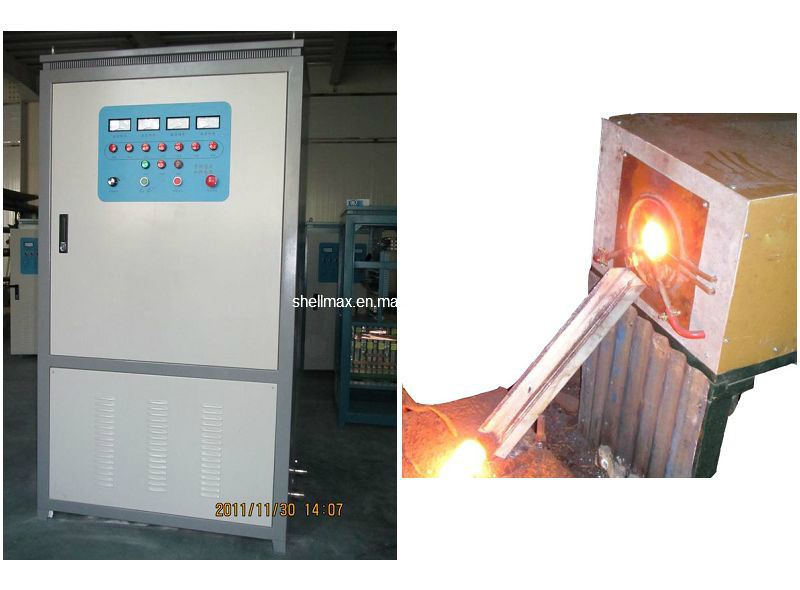

IGBT Medium Frequency Induction Heating Machine
Medium frequency induction heating machine is suitable for
1. Heating middle and big diameter bars
2. Hardneing pieces require deeper hardening layer. Hardening gears, shafts, gear shafts
Composition of equipment
1. A generator
2. A transformer (for hardening ) or an induction furnace (for forging big diameter bars)
1. Product start-up performance is very good. It is the use of series resonant circuit, the SCR IF solve difficult problems start.
2. To save energy, heat 1 per ton of steel, power consumption of 320 degrees. SCR frequency than the 20% -30% power.
3. Products almost no higher harmonics. Does not pollute the power grid, transformers, switch does not heat, will not interfere with electronic equipment to run the factory.
4. Saving power transformer capacity: BS-ZP--300 medium frequency: 315kVA power transformer to work. The SCR does not work IF 315kVA transformer, severe fever, and even burned.
5. Products with high reliability, performance starts: The main components were used in all the world's plant components, IGBT transistors produced by Siemens AG of Germany.
6. Product water system with water heat exchanger and water circulation system inside and outside. Distilled water within the cycle is long-term use, the device is not within the scale is not blocked by water, greatly reducing the failure, saving maintenance costs.
|
Standard |
Input power |
Input voltage |
Current |
Oscillation frequency |
Size of generator |
efficiency |
|
S-MF-200 |
200KW |
380V 50HZ |
330A |
2-10KHZ |
900*550*1800 |
100% |
|
S-MF-250 |
250KW |
380V 50HZ |
420A |
2-10 KHZ |
900*550*1800 |
100% |
|
S-MF-300 |
300KW |
380V 50HZ |
500 A |
2-10KHZ |
0950*550*780 |
100% |
|
S-MF-400 |
400KW |
380V 50-60HZ |
690A |
2-10 KHZ |
1000*550*1800 |
100% |
