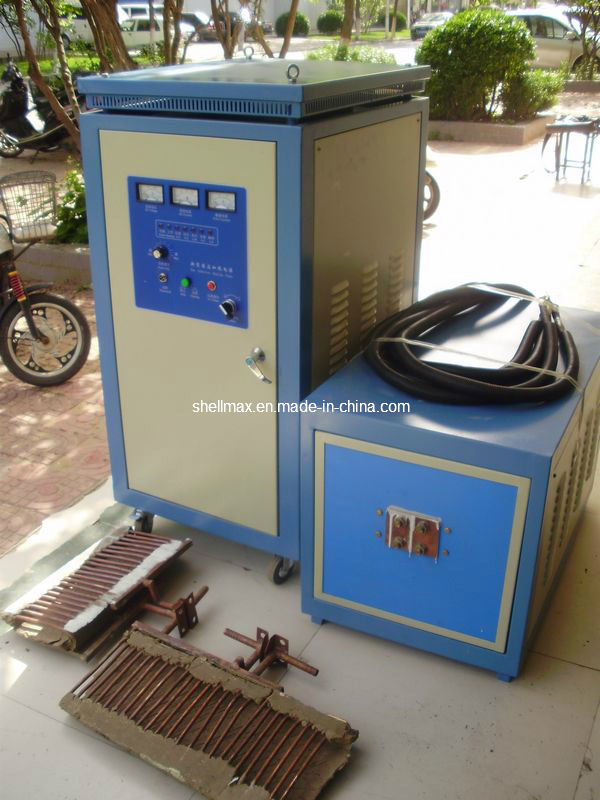

Prod Model: |
S-VI-16/30/36/40/50/60/80/120/160 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Forging Forming Method: |
Free Forging |
Product Description
Detailed Product Description
1: Low energy
2: High efficiency
3: Adopt IGBT modules
Usage: Hardening, forging, welding, annealing and melting
Surface Hardening
1. Heating for the purpose of achieving full hardness of metal in a shallow depth along the surface of the processed area. The hardened surface provides the basis for a wear surface while leaving the body of the component soft.
Brazing
2. Joining of two or more items using a melted high temperature soldering material. The objects to be joined together and the braze material are both heated using high frequency induction.
Forging
3. Heating of a material to change the shape. A typical application is tube heating to form a raw forging for machining to a final component.
Model | Input power | Input voltage | Oscillation frequency | Volume | efficiency | Particular recommended |
mm 3 |
S-VI-16 | 16KW | 220V 50-60HZ | 20-40KHZ | 500*240*450 | 90% | Turning welding |
S-VI-30 | 30KW | 380V 50-60HZ | 30-60KHZ | 580*280*510 | 90% | Drill rod heated |
S-VI-36 | 36KW | 380V 50-60HZ | 30-40KHZ | 600*270*540 | 90% | Drill rod heated |
S-VI-40 | 40KW | 380V 50-60HZ | 30-60 KHZ | 460*360*630 | 90% | Small quenching |
S-VI-50 | 50KW | 380V 50-60HZ | 40-60 KHZ | 590*450*780 | 90% | Standard quenching |
S-VI-60 | 60KW | 380V 50-60HZ | 20-60 KHZ | 590*450*780 | 90% | Nut forging |
S-VI-80 | 80KW | 380V 50-60HZ | 20-60 KHZ | 650*520*1100 | 100% | Gear quenching |
S-VI-120 | 120KW | 380V 50-60HZ | 10-60 KHZ | 650*520*1100 | 100% | Camshaft forging |
S-VI-160 | 160KW | 380V 50-60HZ | 10-60 KHZ | 650*520*1100 | 100% | 600gear quenching |
Quality. Honesty. Responsibility Since 2001
Everyone at Shellmax follows this mission every day: Customer satisfaction through quality products, continuous improvement, and a safe operation that's always up and running.
"Shellmax" is specialized in all kind of Welding Machines, Garage Equipments, Electric Motors, Generators, Consumables and Spare parts and more products. All of "Shellmax" products comply with ISO9002, TUV/GS, CE, UL, CCE ATEX standards. "Shellmax" can manufacture & supply the goods according the customers request around the world.
In order to keep the competitiveness, "Shellmax" research team are always paying close attention to the market change, and accordingly develop the correspondent new items; Management team are carrying out strict quality control through the whole process during production; Logistics team are actively cooperating with shipping agency to help customers shorten the transportation period and save the shipping cost.
In order to gratify customers' requirements, "Shellmax" have established a strict quality control system. Comprehensive measures are implemented from initial material inspection to final checking before packing, warehousing and delivery
"Shellmax" is located at Taizhou City, Zhejiang Province, China. With very convenient transportation, about 160km far from NINGBO and about 400km far from Shanghai sea port, and it is only about 20 min far from HUANGYAN airport.
"SHELLMAX" company insists on equality and mutual benefit, honesty and credit it what we live on, we are honor to set up long term cooperation with all our clients around the world.
