| Prod Model: |
XZ-300B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Period: |
12 Months |
| Application Case: |
Metal Hot Forging |
| Delivery Time: |
in 20 Working Days |
| Processing Object: |
Metal |
| Molding Style: |
Forging |
| Molding Technics: |
Gravity Casting |
| Application: |
Machinery Parts |
| Material: |
Steel |
| Heat Treatment: |
Normalizing |
| Surface Treatment: |
Powder Coating |
| Forging Tolerance: |
+/-0.2mm |
| Certification: |
CE, SGS |
Product Description

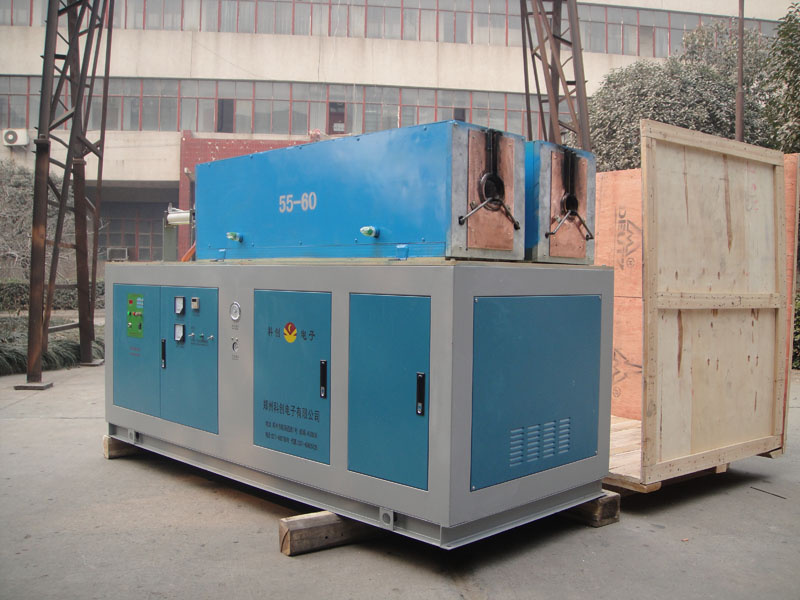

Induction Forging Machine With Infrared Thermometer (XZ-300B) Technical datum:
| Model | XZ-300B |
| Input Power supply | Three Phases 380V 50hz/60hz |
| Rated Input Power | 300KVA |
| Max Input Current(Single Phase) | 450A |
| Oscillating Frequency | 0.5-20KHZ |
| Frequency Control Precision | ±1.5KHz |
| Working Water Pressure | 0.15-0.3Mpa |
| Memo | One Main body, one transformer |
Kechuang Induction Forging Machine Brief Introduction:
1. Technique data:
Power range: 30KVA-1000KVA
Frequency range: 0.1KHz-20KHz
2. Feature:
(1)Adopts series resonance technique, induction coil output high voltage and small current, resonance circuit loss is average lower 25 times than parallel resonance, whole machine save energy 10-20%. It saves energy 50% and more than old fashion medium machine. It is the most save electric heating equipment in domestic at present.
(2)Induction furnace adopts thermal insulation, keep temperature, insulation technique processing, not only heat loss minimum, and greatly reduces the sensor maintenance cost. Induction coil structure is simple, easy maintenance, the abandonment of traditional casting process, won't have crack and scrap.
(3) The 12 pulse technology thorough solve the induction heating machine pollution problem to power network.
(4) Improve coil voltage and save energy, at the same time, adopts patent technology
solved throughtly for the coil voltage high lead in flint fault, bringing unsafe factors.
(5) Integration design, compact structure, simple operation,
(6) bar could heat to Φ300mm, the furnace and core temperature controlled.
(7) It has finished forging to copper, aluminium,etc.
(8)Configure automatic feeding, feed, sorting, fast material,etc, it can realize automation control.
Induction Forging Machine Application cases:
1. Hot forming/forging of the standard components and fasteners
2. Hot forging of the automobile and motorcycle parts, metallic tools
3. Hot forging of embryo gear parts
4. Heat distortion of pipes
5. Other forging applications.
6. Suitable for workpiece with various shape and different diameter
7. Customized forging production solution
Induction Forging Machine Features:
1. Good structure and right angel electric connection, improve stability and reliability of the machine,
saving maintain cost.
2. IGBT technology, saving energy 10-30% than SCR
3. Can equip pneumatic in-feed pusher system
4. Technical experiment for non-standard metal parts, pictures and videos sent to your check
5. Customer customized is available, technique scheme for your review
6. Definite responsibility in every production process, tracking easily in quality problem
7. Plywood cases suitable for sea transport, plastic film, and drier keep it from the humidity;
Foam, nail and angle iron guarantee its security
8. Experienced engineers provide professional after-sale service in English
9. Do according to the rule and regulations of ISO9001:2008, approved by BV and SGS
10. Keep good communication with the customers, highly appreciated by customers in home and aboard
11. Enjoy a high reoutation in the world.
Zhengzhou Kechuang Electronic Co., Ltd, as a king induction heating machine manufacturer in China, we have the following advantages:
1. Induction heating machine power from 8KW-1000KW, with frequency range from 0.1kHz-500kHz.
2. Main circuit adopts Siemens IGBT series resonance circuit.
3. We focus on the metal parts heat treatment production line.
4. We cooperate with the Zhengzhou University.
5. We have CE, SGS certification.
Zhengzhou Kechuang Electronic Co., Ltd is Henan high& new technology enterprise, China heat treatment association membership. From the company's founding, Kechuang Electronic always takes the scientific& technological innovation as the company development driving force. Company has obtained more than ten national patents, has won many many national and provincial science&technology innovation award. Set up henan province induction heating engineering center, has developed hundreds of market welcome products. Has already passed the European Union CE certification, not only in all over China, Asia, Europe, America, Africa, Oceania, everywhere you can see kechuang products and also the engineer local service figure.
