Induction Heating Power Supply for Metal Melting and Forging

Prod Model:	MF-15/25/35/45/70/90/110/160
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Used For:	Forging, Hardening, Melting, Heating and etc.
Place Of Origin:	Yongkang China (Mainland)
Certificate:	CE
Operation:	Safe&Easy
Cooling:	Water
Duty Cycle:	100%
System:	IGBT
Guarant:	12month
Work Condictio:	24 Hours
Processing Object:	Metal
Molding Style:	Forging

Product Description

Features:
1. All-solid-state IGBT frequency conversion and power adjustment, soft-switching responance dual-control and frequency automatic tracking technology is the reliability of guarantee. Module and soft switching inverting technologies are used in the production of the generator, higher reliability can be achieved;
2. Small size and portable, compared with SCR controlled machine, only 1/10 working space is needed, greatly reduce occupation space;
3. High efficiency and energy saving: A high power factor and power efficiency within the scope of full power.
4. With wide frequency range from 1-20kHz automatic trackin ability, no need adjustment at scene.
5. 100% duty cycle, 24hours continuous working ability at maximum power.
6. Constant output voltage or power control modes are alternative;
7. Full display of output power, output frequency, output voltage and current.
8. The timer function: Heating time and retaining time: 0.1~99.9second.

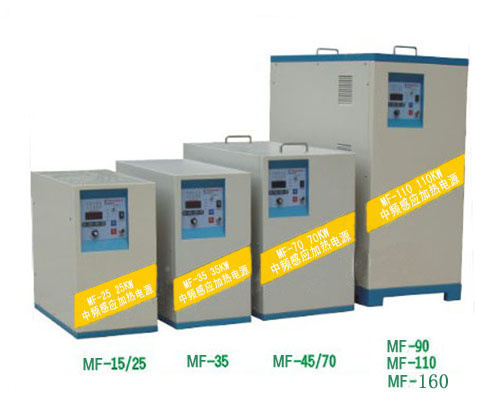

Model	MF-15	MF-25	MF-35	MF-45	MF-70	MF-90	MF-110	MF-160
Input power	15KVA	25KVA	35KVA	45KVA	70KVA	90KVA	110KVA	160KVA
Output current	3-22A	5-45A	10-70A	15-95A	20-130A	25-170A	30-200A	40-260A
output voltage	70-520V	70-520V	70-520V	70-520V	70-520V	70-520V	70-520V	70-520V
Input voltage	3phase 380V ± 20% 50 or 60HZ
Frequency	1KHZ – 20KHZ according customer’ s workpiece require.
Duty cycle	100% 24hours continuous working
Net weight	24KG	24KG	34KG	36KG	51KG	57KG	89KG	116KG
Dimension W x H x L	270x450x460mm		270x450x520	350x550x650mm		400x870x750mm
Timer	Heating time: 0.1-99.9seconds         retaining time: 0.1-99.9seconds
Front panel	LCD, display frequency, power, time etc.
Whole systems water flow	≥ 0.2Mpa  ≥ 6L/Min		≥ 0.3Mpa  ≥ 10L/Min		≥ 0.3Mpa  ≥ 20L/Min
Power supply water flow	≥ 0.2Mpa  ≥ 3L/Min		≥ 0.2Mpa  ≥ 4L/Min		≥ 0.2Mpa  ≥ 6L/Min
Input power	1 water inlet, 1 water outlet			1 water inlet, 3 water outlet
Max water temperature	≤ 45 c

Induction heating is often used in the heat treatment of metal items. The most common applications are induction hardening of steel parts, induction soldering/brazing as a means of joining metal components and induction annealing to selectively soften a selected area of a steel part.
Induction heating can produce high power densities which allow short interaction times to reach the required temperature. This gives tight control of the heating pattern with the pattern following the applied magnetic field quite closely and allows reduced thermal distortion and damage.
This ability can be used in hardening to produce parts with varying properties. The most common hardening process is to produce a localised surface hardening of an area that needs wear-resistance, while retaining the toughness of the original structure as needed elsewhere. The depth of induction hardened patterns can be controlled through choice of induction-frequency, power-density and interaction time.
There are limits to the flexibility of the process - mainly arising from the need to produce dedicated inductors for many applications. This is quite expensive and requires the marshalling of high current-densities in small copper inductors, which can require specialized engineering and 'copper-fitting'.

We offer complete service :
Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.

Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.

After Sales
Machine have one year quality warranty ,0ne year free replacement spare parts ( 1 set of spare parts free for your stock, in case it need replacement).
Supply pictures or video help customer to install machine.


1.Which countries your products are exported to?Our products are sold all over the world, such as Brasil, Amercia, South africa, India, Iran, Pakistan and etc.

2.How about the warranty?Machine have one year quality warranty ,one year free replacement spare parts ( 1 set of spare parts free for your stock, in case it need replacement).

3.How to install your machine?We have paper installation instructions and video, we will teach till you learn it.

4.Which export port you use?Any china port, commonly we will use shanghai or ningbo and customer require.

5.How about the payment terms and delivery time?
Terms of payment:
small machine 100% T/T deposit in advance. big machine 50% deposit, 50% before shipment.
Time of Shipment:
small machine delivery time within 7 days. big machine delivery time within 30 days.
