Induction Heating Rod Forging Furnace
| Price: |
US $ 100-10000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
JLZ-160KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001:2008, CE, SGS |
| Voltage: |
340V-430V |
| Dimension(L*W*H): |
650X600X1520mm |
| Weight: |
250kg |
| Frequency: |
0.5-20kHz |
| Feature: |
Energy Saving,High Efficiency |
| Package: |
Plywood Case |
| Including Parts: |
Generator,Furnace,Induction Coils |
| Warranty: |
1 Year |
| After-Sales Service Provided: |
Engineers Available to Service Overseas |
| Forging Forming Method: |
Hot Forging |
Product Description

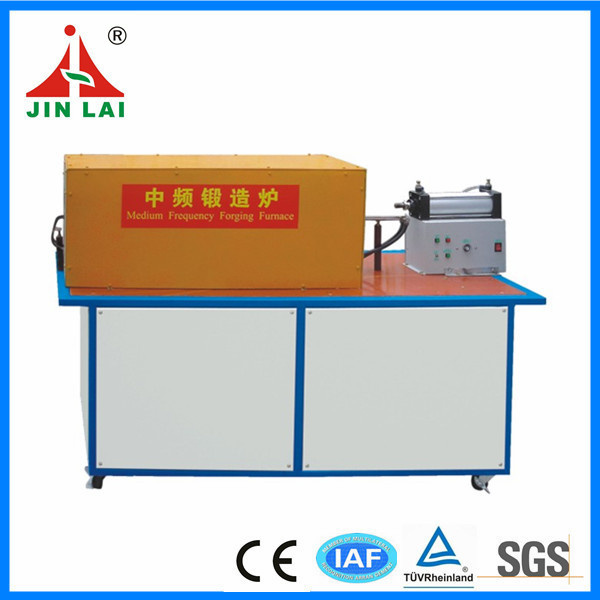

Induction Heating Rod Forging Furnace
(1) Wide frequency range from 1kHz to 20kHz, frequency can be designed to satisfy different size of the heated rods.
(2) The heating coil can be 500mm to 1 meter long, several pieces are heated at the same time to make sure the penetrating effect.
(3) In the continuous heating process, the load inside the coil is stable, thus to overcome the great heating power change caused by the great change of the load during the heating course from cool rod to 1100 degree rod. The actual power can reach more than 85% of the rated power of the machine.
(4) Even when heating non-ferrous metals like copper or aluminium, the actual power can also reach more than 85% of the rated power of the machine by design the coil properly and match the compensating cap correctly. 3.5KG copper or brass can be heated to 700 degree per kilowatt in an hour.
|
models |
Max. Input Power |
Heating ability of normal material |
|
|
Steel or S. S to 1100degree |
Copper or brass to 700degree |
Aluminiumto 500degree |
|
JLZ-35 forging furnace |
35KW |
1.25 KG/min |
1.75 KG/min |
1.46 KG/min |
|
JLZ-45 forging furnace |
45KW |
1.67 KG/min |
2.33 KG/min |
1.87 KG/min |
|
JLZ-70 forging furnace |
70KW |
2.5 KG/min |
3.5 KG/min |
2.92 KG/min |
|
JLZ-90 forging furnace |
90KW |
3.33 KG/min |
4.67 KG/min |
3.75 KG/min |
|
JLZ-110 forging furnace |
110KW |
4.17 KG/min |
5.83 KG/min |
4.58 KG/min |
|
JLZ-160 forging furnace |
160KW |
5.83 KG/min |
------- |
6.67 KG/min |
Dongguan Jinlai Electromechanical Device Factory, founded in 1996, which is engaged in R&D, production and sale of solid Induction heating machine professionally. Several senior experts of induction heating equipment gathered here, who initiate the induction heating machines with environmental protection and highly effective energy conservation, positively and diligently.
Now there are series of products range from 3KW to 600KW, including the ultra-high/high/ super-audio/medium frequency induction heater, KGPS Parallel IF Power supply, IGBT energy saving IF power supply, 12 pulse IF furnace and special equipments (e. g. High-frequency quenching machine, Medium-frequency induction melting furnace, Ultrasonic -frequency annealing machine, Induction forging furnace, Brazing machine, Plastic welding machine, Branch divider/Bicycle fittings special -purpose welding machine, Railway river furnace, etc). These products are widely applied in the heating of hardware, metal (steel, iron, copper, aluminum) processing, plastic, deeply heating shaping, brazing, hardening, melting, annealing, hot cooperation and so on.
It was certified to ISO9001: 2008 quality system and CE certification. Advocating quality management conception of "producing products with zero defect", the quality has been guaranteed. The company has been sated up and perfected the marketing network and after-sales system. Our products are widely exported to Russia, USA, Italy, Romania, Netherlands, Finland, Turkey, Ukraine, Argentina, Brazil, India, Pakistan, Malaysia, Indonesia, Thailand, Vietnam and other countries or region. Most of products gain good reputation from customers.
Our conception is "human-oriented, service the society with innovation". "the quality and prestige are the fist" is our mission. The principle is "communal development, mutual benefit, we are looking forward to cooperate with you to create a bright future!
